Unofficial File parts/13965.dat
Part Attributes:
File Header:

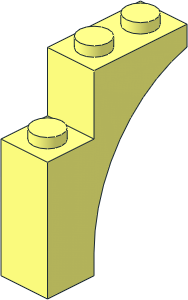

0 Arch 1 x 3 x 3 Pointed
0 Name: 13965.dat
0 Author: Owen Burgoyne [C3POwen]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Pointed
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2025-10-28 [Blechtaler] slightly reworked, added "Pointed" to title
Show contents
0 // arch
1 16 -10 64 63.9664 0 1 0 0 0 -57.977 -53.9664 0 0 48\5-24ndis.dat
1 16 -7 64 63.9664 0 -1 0 0 0 -57.977 -53.9664 0 0 48\3-16tang.dat
1 16 7 64 63.9664 0 1 0 0 0 -57.977 -53.9664 0 0 48\3-16tang.dat
1 16 10 64 63.9664 0 -1 0 0 0 -57.977 -53.9664 0 0 48\5-24ndis.dat
0 BFC INVERTNEXT
1 16 -10 64 63.9664 0 3 0 0 0 -57.977 -53.9664 0 0 48\5-24cylo.dat
0 BFC INVERTNEXT
1 16 7 64 63.9664 0 3 0 0 0 -57.977 -53.9664 0 0 48\5-24cylo.dat
0 // outside
1 16 0 4 30 10 0 0 0 -4 0 0 0 20 box2-5.dat
1 16 0 12 10 10 0 0 0 0 12 0 1 0 rect3.dat
1 16 0 72 0 10 0 0 0 -48 0 0 0 -10 box4-4a.dat
4 16 10 0 50 10 0 10 10 6.023 10 10 8 50
4 16 -10 6.023 10 -10 0 10 -10 0 50 -10 8 50
0 // inside
0 BFC INVERTNEXT
1 16 0 46 12 7 0 0 0 -18 0 0 0 -2 box2-7.dat
0 BFC INVERTNEXT
1 16 0 16 30 7 0 0 0 -12 0 0 0 -16 box2-5.dat
1 16 0 6 48 7 0 0 0 2 0 0 0 -2 box2-7.dat
4 16 10 72 10 6 72 6 -6 72 6 -10 72 10
4 16 -10 72 10 -6 72 6 -6 72 -6 -10 72 -10
4 16 -10 72 -10 -6 72 -6 6 72 -6 10 72 -10
4 16 10 72 -10 6 72 -6 6 72 6 10 72 10
0 BFC INVERTNEXT
1 16 0 72 0 6 0 0 0 -44 0 0 0 -6 box5.dat
2 24 10 72 10 -10 72 10
2 24 -10 72 10 -10 64 10
2 24 10 72 10 10 64 10
3 16 -10 72 10 -10 64 10 -7 64 10
4 16 10 72 10 -10 72 10 -7 64 10 7 64 10
3 16 7 64 10 10 64 10 10 72 10
3 16 7 52.4684 10 7 28 10 7 41.8122 14.1068
4 16 7 31.156 18.2137 7 41.8122 14.1068 7 28 10 7 28 14
4 16 7 4 14 7 23.0045 25.8068 7 31.156 18.2137 7 28 14
4 16 7 4 14 7 4 28.5 7 8 28.5 7 23.0045 25.8068
4 16 7 8 31.5 7 14.8471 33.3944 7 23.0045 25.8068 7 8 28.5
4 16 7 8 46 7 10.435 43.3135 7 4 31.5 7 4 46
4 16 7 10.435 43.3135 7 14.8471 33.3944 7 8 31.5 7 4 31.5
3 16 7 10.435 43.3135 7 8 46 7 8 50
3 16 -7 28 10 -7 52.4684 10 -7 41.8122 14.1068
4 16 -7 28 10 -7 41.8122 14.1068 -7 31.156 18.2137 -7 28 14
4 16 -7 31.156 18.2137 -7 23.0045 25.8068 -7 4 14 -7 28 14
4 16 -7 8 28.5 -7 4 28.5 -7 4 14 -7 23.0045 25.8068
4 16 -7 23.0045 25.8068 -7 14.8471 33.3944 -7 8 31.5 -7 8 28.5
4 16 -7 4 31.5 -7 10.435 43.3135 -7 8 46 -7 4 46
4 16 -7 8 31.5 -7 14.8471 33.3944 -7 10.435 43.3135 -7 4 31.5
3 16 -7 8 46 -7 10.435 43.3135 -7 8 50
0 // Studs
1 16 0 24 0 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 0 0 30 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
0 // Reinforcement
2 24 -7 8 31.5 -7 8 28.5
1 16 -4.473 4 30 2.52664 0 0 0 4 0 0 0 -1.5 box3u4p.dat
4 16 1.94672 8 28.5 -1.94672 8 28.5 -1.94672 8 31.5 1.94672 8 31.5
1 16 0 8 29.086 -1.94674 0 1.94674 0 -1 0 2.414 0 2.414 1-4chrd.dat
1 16 0 4 29.086 1.94674 0 -1.94674 0 4 0 2.414 0 2.414 1-4cylo.dat
1 16 0 8 30.914 -1.94674 0 1.94674 0 -1 0 -2.414 0 -2.414 1-4chrd.dat
1 16 0 4 30.914 1.94674 0 -1.94674 0 4 0 -2.414 0 -2.414 1-4cylo.dat
1 16 4.473 4 30 -2.52664 0 0 0 4 0 0 0 -1.5 box3u4p.dat
2 24 7 8 31.5 7 8 28.5
Status:
Certified (ACCF)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Admin Review |
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
slight rework and added the arch type to the title
2025-10-29 16:59:15
2025-11-09 17:38:27
2025-11-10 21:30:58
Header Edits
help:
0 !HELP
to
0 !HELP
keywords:
to
Pointed
description:
Arch 1 x 3 x 3 Pointed
to
Arch 1 x 3 x 3
2025-11-10 21:32:11
2025-11-10 22:20:07
Header Edits
help:
0 !HELP
to
0 !HELP
description:
Arch 1 x 3 x 3
to
Arch 1 x 3 x 3 Pointed
2025-11-11 19:27:49
The "pointed" was removed from the other normal arch description
2025-11-11 19:28:35
Apologies. This one is pointed
Creative Commons Attribution License information
This part is copyright © Owen Burgoyne
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler,
