Official File parts/55296.dat
Part Attributes:
File Header:

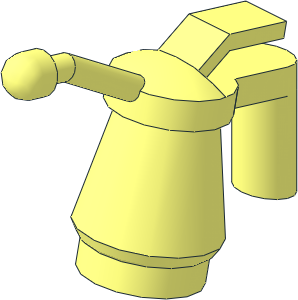

0 Minifig Tool Oilcan
0 Name: 55296.dat
0 Author: John Van Zwieten [jvan]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 !HELP 12.529 Degrees rotation on x-axis to make bottom of can level
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS BrickLink 6246f
0 !HISTORY 2004-12-16 [Holly-Wood] fixed overlaping quads, missing edge, non-coplanar quads, regrouped, BFCed
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-10-12 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-03-17 [PTadmin] Moved from 6246f
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives and fixed some T-junctions
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
