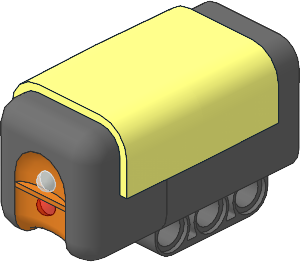

0 Electric Mindstorms NXT Light Sensor
0 Name: 55969.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Shortcut UPDATE 2012-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-12-03 [kclague] moved LEDs to match improved sensor front
0 !HISTORY 2006-12-03 [kclague] put dark grey circles behind LEDs
0 !HISTORY 2007-10-26 [Philo] Used real stone colors
0 !HISTORY 2007-10-26 [Philo] Moved LED/Phototransistor to parts 55972/3
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 // RJ12 socket - rj12 gray
1 7 0 -48 11 -1 0 0 0 1 0 0 0 -1 54732.dat
0 // red LED - trans-red
1 36 0 -30 -74.2 1 0 0 0 1 0 0 0 1 55972.dat
0 // IR sensor - clear
1 47 0 -40 -74.2 1 0 0 0 1 0 0 0 1 55973.dat
0 // shell base - dark stone
1 72 0 0 0 1 0 0 0 1 0 0 0 1 55816.dat
0 // shell front - dark stone
1 72 0 -40 -39 1 0 0 0 1 0 0 0 1 55970.dat
0 // shell top - light stone
1 16 0 -70 -24 1 0 0 0 1 0 0 0 1 55966.dat
This part is copyright © Steve Bliss
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Kevin Clague,
Philippe Hurbain,
3D View
