Official File parts/55982.dat
Part Attributes:
File Header:

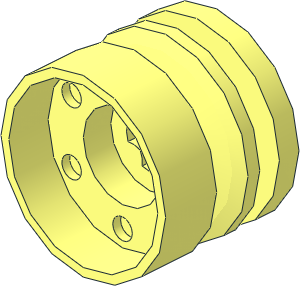

0 Wheel Rim 14 x 18 with Axlehole
0 Name: 55982.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 // Nomenclature: width_(mm) x rim_diameter_(mm) [optional qualifier]
1 16 0 0 -17 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 -4 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 4 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 4 21 0 0 0 0 -21 0 3 0 4-4cyli.dat
1 16 0 0 7 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 7 12 0 0 0 0 -12 0 1 0 4-4edge.dat
1 16 0 0 2 12 0 0 0 0 -12 0 1 0 4-4edge.dat
1 16 0 0 -3 6 0 0 0 0 -6 0 1 0 4-4con2.dat
1 16 0 0 -4 3 0 0 0 0 -3 0 1 0 4-4con6.dat
1 16 0 0 3 -6 0 0 0 0 -6 0 -1 0 4-4con2.dat
1 16 0 0 4 -3 0 0 0 0 -3 0 -1 0 4-4con6.dat
1 16 0 0 -2 12 0 0 0 0 -12 0 1 0 4-4edge.dat
1 16 0 0 7 12 0 0 0 0 -12 0 5 0 4-4cyli.dat
1 16 0 0 7 -6 0 0 0 0 -6 0 -1 0 4-4ring2.dat
1 16 0 0 12 6 0 0 0 0 -6 0 1 0 4-4ring2.dat
1 16 0 0 7 -3 0 0 0 0 -3 0 -1 0 4-4ring6.dat
1 16 0 0 12 3 0 0 0 0 -3 0 1 0 4-4ring6.dat
1 16 0 0 -2 12 0 0 0 0 -12 0 4 0 4-4cyli.dat
1 16 0 0 12 12 0 0 0 0 -12 0 1 0 4-4edge.dat
1 16 0 0 12 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 12 21 0 0 0 0 -21 0 5 0 4-4cyli.dat
1 16 0 0 17 21 0 0 0 0 -21 0 1 0 4-4edge.dat
1 16 0 0 -17 21 0 0 0 0 -21 0 13 0 4-4cyli.dat
1 16 0 0 -17 19 0 0 0 0 -19 0 1 0 4-4edge.dat
1 16 0 0 15 19 0 0 0 0 -19 0 1 0 4-4edge.dat
1 16 0 0 17 19 0 0 0 0 -19 0 1 0 4-4edge.dat
1 16 0 0 -17 1 0 0 0 0 -1 0 1 0 4-4ring20.dat
1 16 0 0 -17 1 0 0 0 0 -1 0 1 0 4-4ring19.dat
1 16 0 0 17 1 0 0 0 0 1 0 -1 0 4-4ring20.dat
1 16 0 0 17 1 0 0 0 0 1 0 -1 0 4-4ring19.dat
0 BFC INVERTNEXT
1 16 0 0 -17 19 0 0 0 0 -19 0 10 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 15 19 0 0 0 0 -19 0 2 0 4-4cyli.dat
1 16 0 0 -7 19 0 0 0 0 -19 0 1 0 4-4edge.dat
1 16 0 0 -7 10 0 0 0 0 -10 0 1 0 4-4edge.dat
1 16 0 0 15 5 0 0 0 0 5 0 -1 0 4-4ring2.dat
1 16 0 0 15 3 0 0 0 0 3 0 -1 0 4-4ring5.dat
1 16 0 0 15 1 0 0 0 0 1 0 -1 0 4-4ring18.dat
1 16 0 0 0 10 0 0 0 0 -10 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 -7 10 0 0 0 0 -10 0 7 0 4-4cyli.dat
1 16 0 0 15 10 0 0 0 0 -10 0 5 0 4-4cyli.dat
1 16 0 0 20 10 0 0 0 0 -10 0 1 0 4-4edge.dat
1 16 0 0 15 10 0 0 0 0 -10 0 1 0 4-4edge.dat
1 16 0 0 20 2 0 0 0 0 2 0 -1 0 4-4ring4.dat
1 16 0 0 0 2 0 0 0 0 -2 0 1 0 4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 18 8 0 0 0 0 -8 0 2 0 4-4cyli.dat
1 16 0 0 20 2 0 0 0 0 2 0 -1 0 4-4ring3.dat
1 16 0 0 0 2 0 0 0 0 -2 0 1 0 4-4ring3.dat
1 16 0 0 15 1 0 0 0 1 0 0 0 1 s\55981s02.dat
1 16 0 0 15 0 -1 0 -1 0 0 0 0 1 s\55981s02.dat
1 16 0 0 15 -1 0 0 0 -1 0 0 0 1 s\55981s02.dat
1 16 0 0 15 0 1 0 1 0 0 0 0 1 s\55981s02.dat
1 16 0 0 -7 1 0 0 0 1 0 0 0 1 s\55981s01.dat
1 16 0 0 -7 -1 0 0 0 -1 0 0 0 1 s\55981s01.dat
1 16 0 0 0 1 0 0 0 0 1 0 20 0 axlehole.dat
1 16 0 0 0 1 0 0 0 0 1 0 -1 0 axlehol2.dat
1 16 0 0 20 1 0 0 0 0 1 0 -1 0 axlehol2.dat
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
