File Detail parts/57536.dat

Official File parts/57536.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

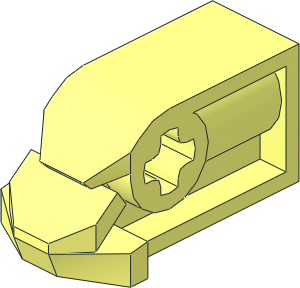

Constraction Head Connector Block Eye/Brain Stalk

File Header:

0 Constraction Head Connector Block Eye/Brain Stalk
0 Name: 57536.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS bionicle, Toa Nuva

0 !HISTORY 2021-12-26 [MagFors] adapted axleholes
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\57536s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\57536s01.dat

2 24 0 10.167 -17 0 9 -10
2 24 0 1 -12 0 4 -10
2 24 0 1 -12 0 -1.4 -9
2 24 0 9 0 0 9 27
2 24 0 -1.4 -9 0 0 -9
2 24 0 9 27 0 13 27
2 24 0 9 -10 0 13 -10
1 16 0 0 0 0 -1 0 0 0 9 -9 0 0 1-4edge.dat
1 16 -5 13 8.5 0 0 -5 0 1 0 18.5 0 0 rect.dat
3 16 0 4 -10 0 9 -10 0 10.167 -17
3 16 0 1 -12 0 -1.4 -9 0 0 -9
3 16 0 6.364 -6.364 0 8.3151 -3.4443 0 9 -10
4 16 0 3.444 -8.315 0 4 -10 0 1 -12 0 0 -9
4 16 0 6.364 -6.364 0 9 -10 0 4 -10 0 3.444 -8.315
4 16 0 8.3151 -3.4443 0 9 0 0 13 -10 0 9 -10
4 16 0 13 27 0 13 -10 0 9 0 0 9 27
2 24 -15 9 -10 0 9 -10
4 16 -15 9 -10 -10 10.167 -17 0 10.167 -17 0 9 -10
4 16 -10 -1.4 -9 0 -1.4 -9 0 1 -12 -6.3513 1 -12
4 16 -10 13 -10 -15 9 -10 0 9 -10 0 13 -10
1 16 -5 7.0835 -13.5 0 0 -5 -3.0835 -1 0 3.5 0 0 rect.dat
2 24 -6.3513 1 -12 0 1 -12
4 16 0 1 -12 0 4 -10 -10 4 -10 -6.3513 1 -12

2 24 4 7.9435 4 4 8.315 3.444
2 24 4 7.9435 4 4 7.9435 27
2 24 4 10.167 -17 4 9 -10
2 24 4 9 -10 4 13 -10
2 24 4 7.9435 27 4 13 27
2 24 4 1 -12 4 4 -10
2 24 4 -1.4 -9 4 0 -9
2 24 4 1 -12 4 -1.4 -9
1 16 4 0 0 0 -1 0 0 0 9 -9 0 0 5-16edge.dat
1 16 7 13 8.5 0 0 -3 0 1 0 18.5 0 0 rect.dat
4 16 4 7.9435 27 4 7.9435 4 4 8.315 3.444 4 13 27
4 16 4 13 -10 4 13 27 4 8.315 3.444 4 9 0
3 16 4 10.167 -17 4 9 -10 4 4 -10
3 16 4 0 -9 4 -1.4 -9 4 1 -12
4 16 4 3.444 -8.315 4 0 -9 4 1 -12 4 4 -10
3 16 4 9 -10 4 8.315 -3.444 4 6.364 -6.364
4 16 4 6.364 -6.364 4 3.444 -8.315 4 4 -10 4 9 -10
4 16 4 9 -10 4 13 -10 4 9 0 4 8.315 -3.444
2 24 15 9 -10 4 9 -10
4 16 4 10.167 -17 10 10.167 -17 15 9 -10 4 9 -10
4 16 4 1 -12 4 -1.4 -9 10 -1.4 -9 6.3513 1 -12
4 16 4 9 -10 15 9 -10 10 13 -10 4 13 -10
1 16 7 7.0835 -13.5 0 0 3 -3.0835 -1 0 3.5 0 0 rect.dat
2 24 6.3513 1 -12 4 1 -12
4 16 10 4 -10 4 4 -10 4 1 -12 6.3513 1 -12
5 24 10 -7.0711 -7.0711 -10 -7.0711 -7.0711 -10 -9.2391 -3.8269 -5 0 -15

1 16 0 0 30 -1 0 0 0 0 -1 0 -1 0 axlehol2.dat
1 16 0 0 30 -1 0 0 0 0 -1 0 -1 0 axl5hol9.dat
1 16 0 0 10 -1 0 0 0 0 -1 0 -1 0 axl5hol9.dat
1 16 0 0 30 -1 0 0 0 0 -1 0 -1 0 axl5ho10.dat
1 16 0 0 10 -1 0 0 0 0 -1 0 -1 0 axlehol2.dat
1 16 0 0 10 -1 0 0 0 0 -1 0 -1 0 axl5end.dat
1 16 0 0 30 -1 0 0 0 0 -1 0 -20 0 axl5hol8.dat

0 // moved
1 16 -10 0 0 0 20 0 0 0 -1 -1 0 0 axlehole.dat
1 16 0 -10 15 10 0 0 0 1 0 0 0 15 rect3.dat
4 16 4 16 -20 -4 16 -20 -10 16 30 10 16 30
4 16 -5 0 -15 5 0 -15 10 -7.071 -7.071 -10 -7.071 -7.071
1 16 0 0.9445 -14.0555 0 0 5 0.9445 -1 0 0.9445 0 0 rect.dat
1 16 0 13.5 -21 0 0 4 2.5 -1 0 1 0 0 rect.dat
1 16 0 10 -22 4 0 0 0 0 -1 0 1 0 rect3.dat
4 16 5 1.889 -13.111 -5 1.889 -13.111 -4 9 -22 4 9 -22
1 16 10 0 0 0 -20 0 -7.07107 0 -7.07107 -7.07107 0 7.07107 1-8cyli.dat
3 16 10 -10 30 0 -6 30 -10 -10 30
3 16 0 6 30 10 16 30 -10 16 30
2 24 10 16 30 -10 16 30
3 16 10 13 27 0 9 27 -10 13 27

Status:

Official
