File Detail parts/577a.dat

Official File parts/577a.dat

Part Attributes:

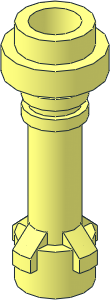

~Minifig Lightsaber Hilt without Bottom Ring (Obsolete)

File Header:

0 ~Minifig Lightsaber Hilt without Bottom Ring (Obsolete)
0 Name: 577a.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Holes for 'blade' at y=3 and y=29 with depth of 7
0 !HELP Grip is centered at y=21.5

0 BFC CERTIFY CCW

0 !CATEGORY Obsolete
0 !KEYWORDS bar, base, rod, sabre, Star Wars, sword

0 !HISTORY 2012-12-12 [MMR1988] Rewrite due to bad quads in old part, corrected measures
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2020-10-25 [cwdee] Obsoleted due to incorrect geometry and replaced with 577c
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2021-03-10 [cwdee] Now replaced by 23306
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
