File Detail parts/580.dat

Official File parts/580.dat

Part Attributes:

File Header:

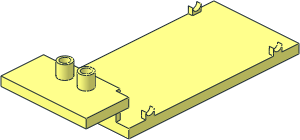

0 ~Electric Train Motor  4 x 12 x  4 Base
0 Name: 580.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2004-07-01 [mikeheide] Made BFC compliant
0 !HISTORY 2004-07-09 [mikeheide] some minor changes
0 !HISTORY 2004-07-23 [mikeheide] BFC CW added
0 !HISTORY 2007-09-21 [mikeheide] corrected bad vertex sequence
0 !HISTORY 2012-04-07 [Steffen] repaired geometry, removed T junctions, used stugs
0 !HISTORY 2020-09-19 [UR] fixed flat sub-files scaled in Y-direction
0 !HISTORY 2020-09-19 [UR] invalid use of capitalization in subfile names resolved
0 !HISTORY 2020-09-19 [UR] simplyfied with cylo/ring/rect primitives, fixed remaining t-junctions
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

1 16 0 68 -100 1 0 0 0 -1 0 0 0 1 stug4-1x3.dat
1 16 -20 92 0 0 0 -1 0 -1 0 1 0 0 stug4-1x7.dat
1 16 20 92 0 0 0 -1 0 -1 0 1 0 0 stug4-1x7.dat
1 16 0 92 0 0 0 -1 0 -1 0 1 0 0 stug4-1x5.dat
1 16 0 80 -80 -28 0 0 0 0 -8 0 1 0 rect3.dat
1 16 0 64 -78 0 0 28 0 1 0 2 0 0 rect2p.dat
4 16 -40 96 -80 40 96 -80 28 88 -80 -28 88 -80
3 16 40 96 -80 40 88 -80 28 88 -80
3 16 -40 96 -80 -28 88 -80 -40 88 -80
1 16 0 92 80 40 0 0 0 0 -4 0 -1 0 rect.dat
4 16 40 96 -80 40 96 80 40 88 56 40 88 -56
3 16 40 96 -80 40 88 -64 40 88 -80
3 16 40 96 -80 40 88 -56 40 88 -64
3 16 40 96 80 40 88 64 40 88 56
3 16 40 96 80 40 88 80 40 88 64
4 16 -40 96 80 -40 96 -80 -40 88 -56 -40 88 56
3 16 -40 96 80 -40 88 64 -40 88 80
3 16 -40 96 80 -40 88 56 -40 88 64
3 16 -40 96 -80 -40 88 -64 -40 88 -56
3 16 -40 96 -80 -40 88 -80 -40 88 -64
4 16 6 68 -94 36 68 -116 -36 68 -116 -6 68 -94
3 16 36 68 -116 6 68 -94 10 68 -94
3 16 10 68 -94 14 68 -94 36 68 -116
3 16 -36 68 -116 -14 68 -94 -10 68 -94
3 16 -10 68 -94 -6 68 -94 -36 68 -116
3 16 -10 64 -96 -16 64 -96 -40 64 -120
3 16 -40 64 -120 -4 64 -96 -10 64 -96
4 16 -4 64 -90 -4 64 -96 4 64 -96 4 64 -90
3 16 40 64 -120 16 64 -96 10 64 -96
3 16 10 64 -96 4 64 -96 40 64 -120
4 16 -4 64 -96 -40 64 -120 40 64 -120 4 64 -96
4 16 -36 68 -116 -36 68 -84 -14 68 -86 -14 68 -90
3 16 -14 68 -90 -14 68 -94 -36 68 -116
4 16 -40 64 -80 -40 64 -120 -16 64 -96 -16 64 -90
4 16 -40 64 -80 -16 64 -90 -16 64 -84 -28 64 -80
4 16 14 68 -90 36 68 -84 36 68 -116 14 68 -94
3 16 14 68 -90 14 68 -86 36 68 -84
4 16 40 64 -120 40 64 -80 16 64 -84 16 64 -90
3 16 16 64 -90 16 64 -96 40 64 -120
4 16 6 68 -86 6 68 -90 -6 68 -90 -6 68 -86
4 16 6 68 -90 6 68 -94 -6 68 -94 -6 68 -90
4 16 4 64 -90 4 64 -84 -4 64 -84 -4 64 -90
4 16 36 68 -84 6 68 -86 -6 68 -86 -36 68 -84
3 16 -36 68 -84 -6 68 -86 -10 68 -86
3 16 -10 68 -86 -14 68 -86 -36 68 -84
3 16 36 68 -84 14 68 -86 10 68 -86
3 16 10 68 -86 6 68 -86 36 68 -84
4 16 4 64 -84 28 64 -80 -28 64 -80 -4 64 -84
4 16 40 64 -80 28 64 -80 4 64 -84 10 64 -84
3 16 10 64 -84 16 64 -84 40 64 -80
3 16 -28 64 -80 -16 64 -84 -10 64 -84
3 16 -10 64 -84 -4 64 -84 -28 64 -80
4 16 -40 96 -80 -36 96 -76 36 96 -76 40 96 -80
4 16 -40 96 80 -36 96 76 -36 96 -76 -40 96 -80
4 16 36 96 76 40 96 80 40 96 -80 36 96 -76
4 16 -36 96 76 -40 96 80 40 96 80 36 96 76
4 16 -40 72 -120 -36 72 -116 36 72 -116 40 72 -120
3 16 -36 72 -84 -40 72 -80 -28 72 -80
4 16 36 72 -84 -36 72 -84 -28 72 -80 28 72 -80
3 16 28 72 -80 40 72 -80 36 72 -84
4 16 40 72 -120 36 72 -116 36 72 -84 40 72 -80
4 16 -36 72 -84 -36 72 -116 -40 72 -120 -40 72 -80
0 BFC INVERTNEXT
1 16 0 96 0 36 0 0 0 -4 0 0 0 -76 box5.dat
4 16 -36 88 56 -36 88 -56 36 88 -56 36 88 56
1 16 -38 88 0 -2 0 0 0 1 0 0 0 56 rect1.dat
1 16 38 88 0 2 0 0 0 1 0 0 0 -56 rect1.dat
1 16 0 88 -60 -36 0 0 0 1 0 0 0 4 rect1.dat
4 16 -36 88 -64 -28 88 -76 28 88 -76 36 88 -64
4 16 -40 88 -64 -40 88 -80 -28 88 -76 -36 88 -64
4 16 36 88 -64 28 88 -76 40 88 -80 40 88 -64
3 16 -40 88 -80 -28 88 -80 -28 88 -76
3 16 28 88 -76 28 88 -80 40 88 -80
4 16 -40 88 80 -36 88 64 36 88 64 40 88 80
3 16 -40 88 80 -40 88 64 -36 88 64
3 16 40 88 80 36 88 64 40 88 64
1 16 0 88 60 -36 0 0 0 1 0 0 0 4 rect1.dat
0 BFC INVERTNEXT
1 16 0 72 -100 36 0 0 0 -4 0 0 0 -16 box4.dat
1 16 -10 68 -90 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
1 16 10 68 -90 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
1 16 10 52 -90 -2 0 0 0 1 0 0 0 -2 4-4ring2.dat
1 16 -10 52 -90 -2 0 0 0 1 0 0 0 -2 4-4ring2.dat
1 16 -10 64 -90 -6 0 0 0 1 0 0 0 -6 4-4ndis.dat
1 16 10 64 -90 -6 0 0 0 1 0 0 0 -6 4-4ndis.dat
1 16 -10 52 -90 6 0 0 0 12 0 0 0 6 4-4cylo.dat
1 16 10 52 -90 6 0 0 0 12 0 0 0 6 4-4cylo.dat
0 BFC INVERTNEXT
1 16 10 52 -90 4 0 0 0 16 0 0 0 4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -10 52 -90 4 0 0 0 16 0 0 0 4 4-4cylo.dat
2 24 -40 96 -80 40 96 -80
2 24 -40 88 -80 -28 88 -80
2 24 28 88 -80 40 88 -80
2 24 40 96 -80 40 88 -80
2 24 28 88 -80 28 88 -76
2 24 -28 88 -80 -28 88 -76
2 24 -40 96 -80 -40 88 -80
2 24 40 96 80 40 96 -80
2 24 40 88 80 40 88 64
2 24 -40 88 80 -40 88 64
2 24 -40 88 -64 -40 88 -80
2 24 40 88 -64 40 88 -80
2 24 -40 96 80 -40 96 -80
2 24 -36 72 -84 -36 72 -116
2 24 36 72 -84 36 72 -116
2 24 36 68 -84 36 68 -116
2 24 -36 68 -84 -36 68 -116
2 24 -36 68 -84 36 68 -84
2 24 -36 68 -116 36 68 -116
2 24 -36 72 -116 36 72 -116
1 16 0 95.5 61 5 0 0 0 -1 0 0 0 15 rect2a.dat
1 16 5 93.75 61 0 -1 0 -1.75 0 0 0 0 15 rect2a.dat
1 16 -5 93.75 61 0 1 0 1.75 0 0 0 0 15 rect3.dat
1 16 0 95.5 -61 -5 0 0 0 -1 0 0 0 -15 rect3.dat
1 16 -5 93.75 -61 0 1 0 -1.75 0 0 0 0 -15 rect2a.dat
1 16 5 93.75 -61 0 -1 0 0 0 -1.75 -15 0 0 rect2a.dat
1 16 40 82 60 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 36 82 60 0 4 0 0 0 4 4 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 -40 82 60 0 4 0 0 0 4 4 0 0 2-4cylo.dat
1 16 36 82 60 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 -40 82 60 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 -36 82 60 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
4 16 40 88 56 40 88 64 40 86 64 40 86 60
3 16 40 86 60 40 86 56 40 88 56
4 16 36 86 56 36 86 60 36 88 64 36 88 56
3 16 36 86 60 36 86 64 36 88 64
2 24 40 88 56 40 86 56
2 24 40 86 64 40 88 64
2 24 36 88 56 36 88 64
2 24 36 88 56 36 86 56
2 24 36 88 64 36 86 64
2 24 36 88 -64 36 88 -56
2 24 36 88 -64 36 86 -64
2 24 36 88 -56 36 86 -56
2 24 40 88 -64 40 86 -64
2 24 40 86 -56 40 88 -56
4 16 40 86 -56 40 86 -60 40 88 -64 40 88 -56
3 16 40 86 -60 40 86 -64 40 88 -64
4 16 36 86 -64 36 86 -60 36 88 -56 36 88 -64
3 16 36 86 -60 36 86 -56 36 88 -56
4 16 -40 88 64 -40 88 56 -40 86 56 -40 86 60
3 16 -40 86 60 -40 86 64 -40 88 64
1 16 -38 87 56 2 0 0 0 0 1 0 1 0 rect3.dat
1 16 -38 84 56 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 -38 87 64 -2 0 0 0 0 1 0 -1 0 rect3.dat
1 16 -38 84 64 2 0 0 0 0 -2 0 -1 0 rect3.dat
1 16 38 87 56 0 0 -2 1 0 0 0 1 0 rect1.dat
1 16 38 84 56 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 38 87 64 0 0 2 1 0 0 0 -1 0 rect1.dat
1 16 38 84 64 2 0 0 0 0 -2 0 -1 0 rect3.dat
4 16 -36 88 56 -36 88 64 -36 86 64 -36 86 60
3 16 -36 86 60 -36 86 56 -36 88 56
1 16 40 82 -60 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 36 82 -60 0 4 0 0 0 4 4 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 -40 82 -60 0 4 0 0 0 4 4 0 0 2-4cylo.dat
1 16 36 82 -60 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 -40 82 -60 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 -36 82 -60 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
4 16 -40 88 -56 -40 88 -64 -40 86 -64 -40 86 -60
3 16 -40 86 -60 -40 86 -56 -40 88 -56
1 16 -38 87 -64 2 0 0 0 0 1 0 1 0 rect3.dat
1 16 -38 84 -64 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 -38 84 -56 2 0 0 0 0 -2 0 -1 0 rect3.dat
1 16 -38 87 -56 -2 0 0 0 0 1 0 -1 0 rect3.dat
1 16 38 84 -64 -2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 38 87 -64 0 0 -2 1 0 0 0 1 0 rect1.dat
1 16 38 87 -56 0 0 2 1 0 0 0 -1 0 rect1.dat
1 16 38 84 -56 2 0 0 0 0 -2 0 -1 0 rect3.dat
4 16 -36 88 -64 -36 88 -56 -36 86 -56 -36 86 -60
3 16 -36 86 -60 -36 86 -64 -36 88 -64
1 16 0 68 -120 40 0 0 0 0 4 0 1 0 rect.dat
1 16 40 68 -100 0 -1 0 0 0 4 20 0 0 rect2p.dat
1 16 34 68 -80 -6 0 0 0 0 4 0 -1 0 rect.dat
4 16 28 88 -76 28 64 -76 28 64 -80 28 72 -80
3 16 28 72 -80 28 88 -80 28 88 -76
1 16 0 76 -76 -28 0 0 0 0 12 0 -1 0 rect.dat
4 16 -28 88 -80 -28 72 -80 -28 64 -76 -28 88 -76
3 16 -28 72 -80 -28 64 -80 -28 64 -76
1 16 -34 68 -80 -6 0 0 0 0 4 0 -1 0 rect.dat
1 16 -40 68 -100 0 1 0 0 0 4 -20 0 0 rect2p.dat
2 24 5 92 46.096 5 95.5 46.096
2 24 -5 92 46.096 -5 95.5 46.096
2 24 3.062 95.5 47.391 5 95.5 46.096
2 24 0 95.5 48 3.062 95.5 47.391
2 24 -3.062 95.5 47.391 0 95.5 48
2 24 -5 95.5 46.096 -3.062 95.5 47.391
2 24 -5 92 -46.096 -5 95.5 -46.096
2 24 5 92 -46.096 5 95.5 -46.096
2 24 -3.062 95.5 -47.391 -5 95.5 -46.096
2 24 0 95.5 -48 -3.062 95.5 -47.391
2 24 3.062 95.5 -47.391 0 95.5 -48
2 24 5 95.5 -46.096 3.062 95.5 -47.391

Status:

Official
