Official File parts/58125a.dat
Part Attributes:
File Header:

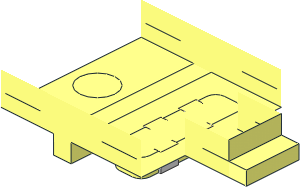

0 ~Electric Power Functions Connector Bottom (PF Type)(Needs Work)
0 Name: 58125a.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 // Needs Work: inner side not modelled
1 494 6 14 -2 0 -1.5 0 0 0 2 -2 0 0 box4-1.dat
1 494 6 14 6 0 -1.5 0 0 0 2 -2 0 0 box4-1.dat
1 494 11 14 2 0 1.5 0 0 0 2 2 0 0 box4-1.dat
1 494 11 14 -6 0 1.5 0 0 0 2 2 0 0 box4-1.dat
1 16 -10 12 0 0 0 1 0 -1 0 -1 0 0 stud3.dat
1 16 -2 12 0 0 0 -2 0 4 0 -16 0 0 box5-4a.dat
2 24 0 12 16 0 12 -16
2 24 -4 12 16 -4 12 -16
4 16 16 12 -7 -16 12 -16 -16 12 16 16 12 7
3 16 16 12 -7 16 12 -16 -16 12 -16
3 16 16 12 16 16 12 7 -16 12 16
4 16 11 16 -4 6 16 0 6 16 4 11 16 0
4 16 11 16 -8 6 16 -4 6 16 0 11 16 -4
4 16 10 16 -10 7 16 -10 6 16 -4 11 16 -8
4 16 7 16 -10 5 16 -10 5 16 -4 6 16 -4
4 16 11 16 0 6 16 4 6 16 8 11 16 4
4 16 11 16 4 6 16 8 7 16 10 10 16 10
4 16 10 16 10 7 16 10 7 16 12 10 16 12
4 16 10 16 -12 7 16 -12 7 16 -10 10 16 -10
4 16 6 16 0 5 16 0 5 16 4 6 16 4
4 16 12 16 -4 11 16 -4 11 16 0 12 16 0
4 16 12 16 -10 10 16 -10 11 16 -8 12 16 -8
4 16 6 16 8 5 16 8 5 16 10 7 16 10
4 16 12 16 4 11 16 4 10 16 10 12 16 10
1 16 23 10.5 0 0 7 0 0 0 1.5 -6 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 28 7 0 0 -2 0 0 0 2 6 0 0 box2-7.dat
4 16 16 5 -6 16 12 -6 26 12 -6 26 5 -6
4 16 -16 5 -16 -16 12 -16 16 12 -16 16 5 -16
4 16 16 5 16 16 12 16 -16 12 16 -16 5 16
2 24 16 12 -16 0 12 -16
2 24 16 12 16 0 12 16
2 24 -4 12 16 -16 12 16
2 24 -4 12 -16 -16 12 -16
2 24 16 12 -6 16 12 -16
2 24 16 12 16 16 12 6
2 24 -16 12 16 -16 12 -16
2 24 -15 9 -16 -7 9 -16
2 24 -15 9 16 -7 9 16
2 24 7 9 -16 15 9 -16
2 24 7 9 16 15 9 16
2 24 20 9 -6 26 9 -6
2 24 20 9 6 26 9 6
2 24 30 9 6 30 9 -6
2 24 26 5 6 26 5 -6
4 16 26 5 6 26 12 6 16 12 6 16 5 6
1 16 10 12 -10 0 0 2 0 4 0 -2 0 0 1-4cyli.dat
1 16 10 12 -10 0 0 2 0 4 0 -2 0 0 1-4edge.dat
1 16 10 16 -10 0 0 2 0 4 0 -2 0 0 1-4edge.dat
1 16 7 12 -10 -2 0 0 0 4 0 0 0 -2 1-4cyli.dat
1 16 7 12 -10 -2 0 0 0 4 0 0 0 -2 1-4edge.dat
1 16 7 16 -10 -2 0 0 0 4 0 0 0 -2 1-4edge.dat
1 16 7 12 10 0 0 -2 0 4 0 2 0 0 1-4cyli.dat
1 16 7 12 10 0 0 -2 0 4 0 2 0 0 1-4edge.dat
1 16 7 16 10 0 0 -2 0 4 0 2 0 0 1-4edge.dat
1 16 10 12 10 2 0 0 0 4 0 0 0 2 1-4cyli.dat
1 16 10 12 10 2 0 0 0 4 0 0 0 2 1-4edge.dat
1 16 10 16 10 2 0 0 0 4 0 0 0 2 1-4edge.dat
1 16 10 16 10 2 0 0 0 -1 0 0 0 2 1-4disc.dat
1 16 7 16 10 0 0 -2 0 -1 0 2 0 0 1-4disc.dat
1 16 7 16 -10 -2 0 0 0 -1 0 0 0 -2 1-4disc.dat
1 16 10 16 -10 0 0 2 0 -1 0 -2 0 0 1-4disc.dat
1 16 8.5 14 -12 -1.5 0 0 0 0 -2 0 1 0 rect2p.dat
1 16 8.5 14 12 1.5 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 5 14 2 0 1 0 0 0 -2 -2 0 0 rect.dat
1 16 12 14 -2 0 -1 0 0 0 -2 2 0 0 rect.dat
1 16 5 14 -7 0 1 0 -2 0 0 0 0 3 rect3.dat
1 16 12 14 -9 0 -1 0 -2 0 0 0 0 1 rect3.dat
1 16 12 14 7 0 -1 0 -2 0 0 0 0 -3 rect3.dat
1 16 5 14 9 0 1 0 -2 0 0 0 0 -1 rect3.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
