Official File parts/6009312e.dat
Part Attributes:
File Header:

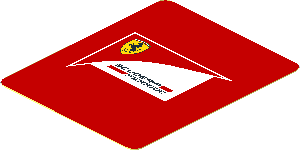

0 Sticker 2.2 x 1.8 with Logo Scuderia Ferrari on Red Background
0 Name: 6009312e.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Ferrari, Iveco, Polybag, Racers, Set 30191
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
0 // Primitives
1 16 -16 0 20 0 0 -2 0 -1 0 2 0 0 1-4chrd.dat
1 16 16 0 20 2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 -16 0 -20 -2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 16 0 -20 0 0 2 0 -1 0 -2 0 0 1-4chrd.dat
1 16 -16 -0.25 20 0 0 -2 0 0.25 0 2 0 0 1-4cyli.dat
1 16 16 -0.25 20 2 0 0 0 0.25 0 0 0 2 1-4cyli.dat
1 16 -16 -0.25 -20 -2 0 0 0 0.25 0 0 0 -2 1-4cyli.dat
1 16 16 -0.25 -20 0 0 2 0 0.25 0 -2 0 0 1-4cyli.dat
1 4 -16 -0.25 20 0 0 -2 0 1 0 2 0 0 1-4chrd.dat
1 4 16 -0.25 20 2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 4 -16 -0.25 -20 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 4 16 -0.25 -20 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 4 0 -0.25 0 0.41325 0 0 0 1 0 0 0 0.41325 s\logoferraris05.dat
0 // Top face
4 4 -16 -0.25 22 -18 -0.25 20 18 -0.25 20 16 -0.25 22
4 4 -18 -0.25 20 -12.97605 -0.25 9.0915 12.97605 -0.25 9.0915 18 -0.25 20
4 4 -18 -0.25 20 -18 -0.25 -20 -12.97605 -0.25 -9.0915 -12.97605 -0.25 9.0915
4 4 18 -0.25 20 12.97605 -0.25 9.0915 12.97605 -0.25 -9.0915 18 -0.25 -20
4 4 -12.97605 -0.25 -9.0915 -18 -0.25 -20 18 -0.25 -20 12.97605 -0.25 -9.0915
4 4 -18 -0.25 -20 -16 -0.25 -22 16 -0.25 -22 18 -0.25 -20
0 // Neutral lateral faces
4 16 -16 0 22 -16 -0.25 22 16 -0.25 22 16 0 22
4 16 -18 0 -20 -18 -0.25 -20 -18 -0.25 20 -18 0 20
4 16 18 0 20 18 -0.25 20 18 -0.25 -20 18 0 -20
4 16 16 0 -22 16 -0.25 -22 -16 -0.25 -22 -16 0 -22
0 // Neutral bottom face
4 16 16 0 22 18 0 20 -18 0 20 -16 0 22
4 16 18 0 20 18 0 -20 -18 0 -20 -18 0 20
4 16 18 0 -20 16 0 -22 -16 0 -22 -18 0 -20
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
