Official File parts/6041.dat
Part Attributes:
File Header:

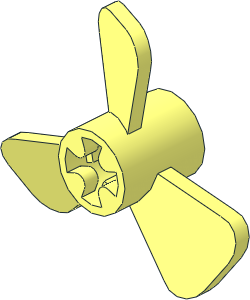

0 Propeller 3 Blade 3.5 Diameter with Axlehole
0 Name: 6041.dat
0 Author: Paul Easter [pneaster]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Aquazone, Divers
0 !HISTORY 2000-05-07 [PTadmin] Official Update 2000-01
0 !HISTORY 2001-05-04 [pneaster] Total Revision, made better use of primitive files.
0 !HISTORY 2001-11-23 [pneaster] corrected BFC use of primitive files.
0 !HISTORY 2002-04-25 [PTadmin] Official Update 2002-02
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives
0 !HISTORY 2021-11-21 [MagFors] made ccw, further clean up
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 0 0 12 10 0 0 0 0 10 0 -24 0 4-4cylo.dat
1 16 0 0 12 8 0 0 0 0 8 0 1 0 4-4edge.dat
1 16 0 0 12 2 0 0 0 0 2 0 -1 0 4-4ring4.dat
1 16 0 0 -12 2 0 0 0 0 2 0 1 0 4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 10 8 0 0 0 0 8 0 2 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -12 -3.061 0 7.391 -7.391 0 -3.061 0 6 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -8 3.061 0 7.391 -7.391 0 3.061 0 18 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -6 -2.296 0 5.543 -5.543 0 -2.296 0 16 0 1-8cylo.dat
1 16 0 0 -8 3.061 0 7.391 -7.391 0 3.061 0 1 0 1-8edge.dat
1 16 0 0 10 -3.061 0 7.391 -7.391 0 -3.061 0 1 0 1-8edge.dat
1 16 0 0 -6 0.766 0 -1.848 -1.848 0 -0.766 0 1 0 1-8ring3.dat
1 16 0 0 10 -0.765 0 1.848 -1.848 0 -0.765 0 -1 0 1-8ring3.dat
1 16 2.679 -6.467 2 0.383 0 0 -0.924 -1 0 0 0 8 rect.dat
1 16 -2.679 -6.467 2 0.383 0 0 0.924 -1 0 0 0 -8 rect.dat
1 16 0 0 -8 3.061 0 7.391 -7.391 0 3.061 0 -1 0 1-8chrd.dat
1 16 0 0 -12 3.061 0 7.391 -7.391 0 3.061 0 1 0 1-8chrd.dat
1 16 4.158 -4.158 -12 0.8262 0 -1.99476 1.99476 0 0.8262 0 1 0 3-8chrd.dat
1 16 4.158 -4.158 -8 0.8262 0 -1.99476 1.99476 0 0.8262 0 -1 0 3-8chrd.dat
1 16 4.158 -4.158 -8 0.8262 0 -1.99476 1.99476 0 0.8262 0 -4 0 3-8cylo.dat
4 16 2.163 -4.984 -12 4.984 -2.163 -12 7.391 -3.062 -12 3.062 -7.391 -12
1 16 6.1875 -2.6125 -10 0 0 1.2035 0 -1 -0.4495 2 0 0 rect3.dat
1 16 2.6125 -6.1875 -10 0 0 0.4495 0 1 -1.2035 -2 0 0 rect3.dat
4 16 2.163 -4.984 -8 3.062 -7.391 -8 7.391 -3.062 -8 4.984 -2.163 -8
0 BFC INVERTNEXT
1 16 0 0 -12 7.391 0 3.061 -3.061 0 7.391 0 6 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -8 7.391 0 -3.061 3.061 0 7.391 0 18 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -6 5.543 0 2.296 -2.296 0 5.543 0 16 0 1-8cylo.dat
1 16 0 0 -8 7.391 0 -3.061 3.061 0 7.391 0 1 0 1-8edge.dat
1 16 0 0 10 7.391 0 3.061 -3.061 0 7.391 0 1 0 1-8edge.dat
1 16 0 0 -6 1.848 0 0.766 0.766 0 -1.848 0 1 0 1-8ring3.dat
1 16 0 0 10 1.848 0 0.765 -0.765 0 1.848 0 -1 0 1-8ring3.dat
1 16 6.467 2.679 2 0.924 1 0 0.383 0 0 0 0 8 rect.dat
1 16 6.467 -2.679 2 -0.924 1 0 0.383 0 0 0 0 -8 rect.dat
1 16 0 0 -8 7.391 0 -3.061 3.061 0 7.391 0 -1 0 1-8chrd.dat
1 16 0 0 -12 7.391 0 -3.061 3.061 0 7.391 0 1 0 1-8chrd.dat
1 16 4.158 4.158 -12 -1.99476 0 -0.8262 0.8262 0 -1.99476 0 1 0 3-8chrd.dat
1 16 4.158 4.158 -8 -1.99476 0 -0.8262 0.8262 0 -1.99476 0 -1 0 3-8chrd.dat
1 16 4.158 4.158 -8 -1.99476 0 -0.8262 0.8262 0 -1.99476 0 -4 0 3-8cylo.dat
4 16 4.984 2.163 -12 2.163 4.984 -12 3.062 7.391 -12 7.391 3.062 -12
1 16 2.6125 6.1875 -10 0 1 0.4495 0 0 1.2035 2 0 0 rect3.dat
1 16 6.1875 2.6125 -10 0 -1 1.2035 0 0 0.4495 -2 0 0 rect3.dat
4 16 4.984 2.163 -8 7.391 3.062 -8 3.062 7.391 -8 2.163 4.984 -8
0 BFC INVERTNEXT
1 16 0 0 -12 3.061 0 -7.391 7.391 0 3.061 0 6 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -8 -3.061 0 -7.391 7.391 0 -3.061 0 18 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -6 2.296 0 -5.543 5.543 0 2.296 0 16 0 1-8cylo.dat
1 16 0 0 -8 -3.061 0 -7.391 7.391 0 -3.061 0 1 0 1-8edge.dat
1 16 0 0 10 3.061 0 -7.391 7.391 0 3.061 0 1 0 1-8edge.dat
1 16 0 0 -6 -0.766 0 1.848 1.848 0 0.766 0 1 0 1-8ring3.dat
1 16 0 0 10 0.765 0 -1.848 1.848 0 0.765 0 -1 0 1-8ring3.dat
1 16 -2.679 6.467 2 -0.383 0 0 0.924 1 0 0 0 8 rect.dat
1 16 2.679 6.467 2 -0.383 0 0 -0.924 1 0 0 0 -8 rect.dat
1 16 0 0 -8 -3.061 0 -7.391 7.391 0 -3.061 0 -1 0 1-8chrd.dat
1 16 0 0 -12 -3.061 0 -7.391 7.391 0 -3.061 0 1 0 1-8chrd.dat
1 16 -4.158 4.158 -12 -0.8262 0 1.99476 -1.99476 0 -0.8262 0 1 0 3-8chrd.dat
1 16 -4.158 4.158 -8 -0.8262 0 1.99476 -1.99476 0 -0.8262 0 -1 0 3-8chrd.dat
1 16 -4.158 4.158 -8 -0.8262 0 1.99476 -1.99476 0 -0.8262 0 -4 0 3-8cylo.dat
4 16 -2.163 4.984 -12 -4.984 2.163 -12 -7.391 3.062 -12 -3.062 7.391 -12
1 16 -6.1875 2.6125 -10 0 0 -1.2035 0 1 0.4495 2 0 0 rect3.dat
1 16 -2.6125 6.1875 -10 0 0 -0.4495 0 -1 1.2035 -2 0 0 rect3.dat
4 16 -2.163 4.984 -8 -3.062 7.391 -8 -7.391 3.062 -8 -4.984 2.163 -8
0 BFC INVERTNEXT
1 16 0 0 -12 -7.391 0 -3.061 3.061 0 -7.391 0 6 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -8 -7.391 0 3.061 -3.061 0 -7.391 0 18 0 1-8cyli.dat
0 BFC INVERTNEXT
1 16 0 0 -6 -5.543 0 -2.296 2.296 0 -5.543 0 16 0 1-8cylo.dat
1 16 0 0 -8 -7.391 0 3.061 -3.061 0 -7.391 0 1 0 1-8edge.dat
1 16 0 0 10 -7.391 0 -3.061 3.061 0 -7.391 0 1 0 1-8edge.dat
1 16 0 0 -6 -1.848 0 -0.766 -0.766 0 1.848 0 1 0 1-8ring3.dat
1 16 0 0 10 -1.848 0 -0.765 0.765 0 -1.848 0 -1 0 1-8ring3.dat
1 16 -6.467 -2.679 2 -0.924 -1 0 -0.383 0 0 0 0 8 rect.dat
1 16 -6.467 2.679 2 0.924 -1 0 -0.383 0 0 0 0 -8 rect.dat
1 16 0 0 -8 -7.391 0 3.061 -3.061 0 -7.391 0 -1 0 1-8chrd.dat
1 16 0 0 -12 -7.391 0 3.061 -3.061 0 -7.391 0 1 0 1-8chrd.dat
1 16 -4.158 -4.158 -12 1.99476 0 0.8262 -0.8262 0 1.99476 0 1 0 3-8chrd.dat
1 16 -4.158 -4.158 -8 1.99476 0 0.8262 -0.8262 0 1.99476 0 -1 0 3-8chrd.dat
1 16 -4.158 -4.158 -8 1.99476 0 0.8262 -0.8262 0 1.99476 0 -4 0 3-8cylo.dat
4 16 -4.984 -2.163 -12 -2.163 -4.984 -12 -3.062 -7.391 -12 -7.391 -3.062 -12
1 16 -2.6125 -6.1875 -10 0 -1 -0.4495 0 0 -1.2035 2 0 0 rect3.dat
1 16 -6.1875 -2.6125 -10 0 1 -1.2035 0 0 -0.4495 -2 0 0 rect3.dat
4 16 -4.984 -2.163 -8 -7.391 -3.062 -8 -3.062 -7.391 -8 -2.163 -4.984 -8
0 // 1st blade
1 16 4 -28 -5.6 6 0 0 0 0 -6 -2.4 4 0 1-4cylo.dat
1 16 4 -28 -1.6 6 0 0 0 0 -6 -2.4 -1 0 1-4chrd.dat
1 16 4 -28 -5.6 6 0 0 0 0 -6 -2.4 1 0 1-4chrd.dat
1 16 -4 -28 1.6 -6 0 0 0 0 -6 2.4 -4 0 1-4cylo.dat
1 16 -4 -28 -2.4 -6 0 0 0 0 -6 2.4 1 0 1-4chrd.dat
1 16 -4 -28 1.6 -6 0 0 0 0 -6 2.4 -1 0 1-4chrd.dat
2 24 0 -10 0 3.9 -9.3 -1.56
2 24 3.9 -9.3 -1.56 4.7 -8.7 -1.88
2 24 0 -10 0 -3.9 -9.3 1.56
2 24 -3.9 -9.3 1.56 -4.7 -8.7 1.88
2 24 0 -10 -4 3.9 -9.3 -5.56
2 24 3.9 -9.3 -5.56 4.7 -8.7 -5.88
2 24 0 -10 -4 -3.9 -9.3 -2.44
2 24 -3.9 -9.3 -2.44 -4.7 -8.7 -2.12
3 16 9.5 -25.7 -3.8 4.7 -8.7 -1.88 3.9 -9.3 -1.56
4 16 4 -34 -1.6 10 -28 -4 -10 -28 4 -4 -34 1.6
4 16 -9.5 -25.7 3.8 -10 -28 4 10 -28 -4 9.5 -25.7 -3.8
4 16 -9.5 -25.7 3.8 9.5 -25.7 -3.8 3.9 -9.3 -1.56 0 -10 0
3 16 0 -10 0 -3.9 -9.3 1.56 -9.5 -25.7 3.8
3 16 -3.9 -9.3 1.56 -4.7 -8.7 1.88 -9.5 -25.7 3.8
3 16 3.9 -9.3 -5.56 4.7 -8.7 -5.88 9.5 -25.7 -7.8
3 16 0 -10 -4 3.9 -9.3 -5.56 9.5 -25.7 -7.8
4 16 -4 -34 -2.4 -10 -28 0 10 -28 -8 4 -34 -5.6
4 16 -3.9 -9.3 -2.44 0 -10 -4 9.5 -25.7 -7.8 -9.5 -25.7 -0.2
4 16 -10 -28 0 -9.5 -25.7 -0.2 9.5 -25.7 -7.8 10 -28 -8
3 16 -9.5 -25.7 -0.2 -4.7 -8.7 -2.12 -3.9 -9.3 -2.44
1 16 7.1 -17.2 -4.84 0 0 -2.4 0 -1 8.5 2 0 0.96 rect3.dat
1 16 9.75 -26.85 -5.9 -0.25 0 0 1.15 -1 0 0.1 0 -2 rect2p.dat
1 16 0 -34 -2 -4 0 0 0 1 0 1.6 0 2 rect2p.dat
1 16 -9.75 -26.85 1.9 -0.25 0 0 -1.15 -1 0 0.1 0 -2 rect2p.dat
1 16 -7.1 -17.2 0.84 0 0 2.4 0 -1 8.5 -2 0 -0.96 rect3.dat
5 24 9.5 -25.7 -7.8 9.5 -25.7 -3.8 4.7 -8.7 -5.88 10 -28 -8
5 24 -9.5 -25.7 -0.2 -9.5 -25.7 3.8 -10 -28 0 -4.7 -8.7 -2.12
5 24 10 -28 -8 10 -28 -4 9.5434 -30.2962 -7.8174 9.5 -25.7 -7.8
5 24 -10 -28 0 -10 -28 4 -9.5 -25.7 -0.2 -9.5434 -30.2962 -0.1826
0 // 2nd blade
1 16 22.249 17.464 -5.6 -3 0 5.19615 5.19615 0 3 -2.4 4 0 1-4cylo.dat
1 16 22.249 17.464 -1.6 -3 0 5.19615 5.19615 0 3 -2.4 -1 0 1-4chrd.dat
1 16 22.249 17.464 -5.6 -3 0 5.19615 5.19615 0 3 -2.4 1 0 1-4chrd.dat
1 16 26.249 10.536 1.6 3 0 5.19615 -5.19615 0 3 2.4 -4 0 1-4cylo.dat
1 16 26.249 10.536 -2.4 3 0 5.19615 -5.19615 0 3 2.4 1 0 1-4chrd.dat
1 16 26.249 10.536 1.6 3 0 5.19615 -5.19615 0 3 2.4 -1 0 1-4chrd.dat
2 24 9.239 3.827 0.5222 7.071 7.071 -1.0354
2 24 7.071 7.071 -1.0354 5.1323 8.3666 -1.8718
2 24 9.239 3.827 0.5222 9.9416 0.2939 1.8864
2 24 9.239 3.827 -3.4778 7.071 7.071 -5.0354
2 24 7.071 7.071 -5.0354 5.1323 8.3666 -5.8718
2 24 9.239 3.827 -3.4778 9.9416 0.2939 -2.1136
3 16 17.507 21.077 -3.8 5.1323 8.3666 -1.8718 7.071 7.071 -1.0354
4 16 27.445 20.464 -1.6 19.249 22.66 -4 29.249 5.34 4 31.445 13.536 1.6
4 16 27.007 4.623 3.8 29.249 5.34 4 19.249 22.66 -4 17.507 21.077 -3.8
4 16 27.007 4.623 3.8 17.507 21.077 -3.8 7.071 7.071 -1.0354 9.239 3.827 0.5222
3 16 9.239 3.827 0.5222 9.9416 0.2939 1.8864 27.007 4.623 3.8
3 16 7.071 7.071 -5.0354 5.1323 8.3666 -5.8718 17.507 21.077 -7.8
4 16 9.239 3.827 -3.4778 7.071 7.071 -5.0354 17.507 21.077 -7.8 27.007 4.623 -0.2
4 16 31.445 13.536 -2.4 29.249 5.34 0 19.249 22.66 -8 27.445 20.464 -5.6
4 16 29.249 5.34 0 27.007 4.623 -0.2 17.507 21.077 -7.8 19.249 22.66 -8
3 16 9.9416 0.2939 -2.1136 9.239 3.827 -3.4778 27.007 4.623 -0.2
1 16 11.3198 14.7221 -4.8359 0 0 -6.18745 0 -1 -6.35541 2 0 0.96409 rect3.dat
1 16 18.378 21.869 -5.9 -0.87093 0.86603 0 -0.79151 0.5 0 0.1 0 -2 rect2p.dat
1 16 29.445 17 -2 2 -0.86603 0 -3.4641 -0.5 0 1.6 0 2 rect2p.dat
1 16 28.128 4.981 1.9 1.12093 0.86603 0 0.35849 0.5 0 0.1 0 -2 rect2p.dat
1 16 18.4744 2.4582 0.8432 0 0 -8.53283 0 1 -2.16434 -2 0 -0.95682 rect3.dat
5 24 17.507 21.077 -7.8 17.507 21.077 -3.8 5.1323 8.3666 -5.8718 19.249 22.66 -8
5 24 27.007 4.623 -0.2 27.007 4.623 3.8 29.249 5.34 0 9.9416 0.2939 -2.1136
5 24 19.249 22.66 -8 19.249 22.66 -4 21.466 23.413 -7.817 17.507 21.077 -7.8
5 24 29.249 5.34 0 29.249 5.34 4 27.007 4.623 -0.2 31.009 6.883 -0.183
0 // 3rd blade
1 16 -22.249 17.464 1.6 3 0 -5.19615 5.19615 0 3 2.4 -4 0 1-4cylo.dat
1 16 -22.249 17.464 -2.4 3 0 -5.19615 5.19615 0 3 2.4 1 0 1-4chrd.dat
1 16 -22.249 17.464 1.6 3 0 -5.19615 5.19615 0 3 2.4 -1 0 1-4chrd.dat
1 16 -26.249 10.536 -5.6 -3 0 -5.19615 -5.19615 0 3 -2.4 4 0 1-4cylo.dat
1 16 -26.249 10.536 -1.6 -3 0 -5.19615 -5.19615 0 3 -2.4 -1 0 1-4chrd.dat
1 16 -26.249 10.536 -5.6 -3 0 -5.19615 -5.19615 0 3 -2.4 1 0 1-4chrd.dat
2 24 -9.239 3.827 -4.5222 -7.071 7.071 -2.9646
2 24 -7.071 7.071 -2.9646 -5.1323 8.3666 -2.1282
2 24 -9.239 3.827 -4.5222 -9.9416 0.2939 -5.8864
2 24 -9.239 3.827 -0.5222 -7.071 7.071 1.0354
2 24 -7.071 7.071 1.0354 -5.1323 8.3666 1.8718
2 24 -9.239 3.827 -0.5222 -9.9416 0.2939 -1.8864
3 16 -5.1323 8.3666 -2.1282 -7.071 7.071 -2.9646 -17.507 21.077 -0.2
4 16 -27.445 20.464 -2.4 -19.249 22.66 0 -29.249 5.34 -8 -31.445 13.536 -5.6
4 16 -27.007 4.623 -7.8 -29.249 5.34 -8 -19.249 22.66 0 -17.507 21.077 -0.2
4 16 -27.007 4.623 -7.8 -17.507 21.077 -0.2 -7.071 7.071 -2.9646 -9.239 3.827 -4.5222
3 16 -9.9416 0.2939 -5.8864 -27.007 4.623 -7.8 -9.239 3.827 -4.5222
3 16 -5.1323 8.3666 1.8718 -17.507 21.077 3.8 -7.071 7.071 1.0354
4 16 -9.239 3.827 -0.5222 -7.071 7.071 1.0354 -17.507 21.077 3.8 -27.007 4.623 -3.8
4 16 -31.445 13.536 -1.6 -29.249 5.34 -4 -19.249 22.66 4 -27.445 20.464 1.6
4 16 -29.249 5.34 -4 -27.007 4.623 -3.8 -17.507 21.077 3.8 -19.249 22.66 4
3 16 -9.239 3.827 -0.5222 -27.007 4.623 -3.8 -9.9416 0.2939 -1.8864
1 16 -11.3198 14.7221 0.8359 0 0 6.18745 0 -1 -6.35541 -2 0 -0.96409 rect3.dat
1 16 -18.378 21.869 1.9 0.87093 -0.86603 0 -0.79151 0.5 0 -0.1 0 2 rect2p.dat
1 16 -29.445 17 -2 -2 0.86603 0 -3.4641 -0.5 0 -1.6 0 -2 rect2p.dat
1 16 -28.128 4.981 -5.9 -1.12093 -0.86603 0 0.35849 0.5 0 -0.1 0 2 rect2p.dat
1 16 -18.4744 2.4582 -4.8432 0 0 8.53283 0 1 -2.16434 2 0 0.95682 rect3.dat
5 24 -17.507 21.077 3.8 -17.507 21.077 -0.2 -5.1323 8.3666 1.8718 -19.249 22.66 4
5 24 -27.007 4.623 -3.8 -27.007 4.623 -7.8 -29.249 5.34 -4 -9.9416 0.2939 -1.8864
5 24 -19.249 22.66 4 -19.249 22.66 0 -21.466 23.413 3.817 -17.507 21.077 3.8
5 24 -29.249 5.34 -4 -29.249 5.34 -8 -27.007 4.623 -3.8 -31.009 6.883 -3.817
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Paul Easter
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Massimo Maso,
Magnus Forsberg,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
