File Detail parts/6042.dat

Official File parts/6042.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

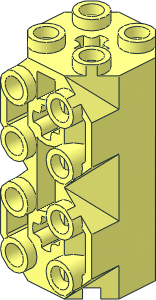

Brick 2 x 2 x 3.333 Octagonal With Side Studs

File Header:

0 Brick  2 x  2 x  3.333 Octagonal With Side Studs
0 Name: 6042.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Aquazone, pipe, side stud

0 !HISTORY 1998-10-15 [PTadmin] Official Update 1998-09
0 !HISTORY 1999-04-14 [sbliss] Fixed 2 bad subfile references by inlining.
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2011-11-16 [Rolf] BFC'd, refactored
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2021-12-29 [MagFors] Reshaped axleholes
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6042s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6042s01.dat
1 16 0 0 0 1 0 0 0 76 0 0 0 1 axlehole.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 76 0 1 0 0 0 1 0 0 0 1 axlehol3.dat
1 16 0 76 0 0 0 1 0 -1 0 -1 0 0 stud4a.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat

4 16 -6 0 -6 -8 0 -20 8 0 -20 6 0 -6
4 16 6 0 6 8 0 20 -8 0 20 -6 0 6
2 24 -8 0 -20 8 0 -20
2 24 -8 0 20 8 0 20
4 16 8 0 20 8 80 20 -8 80 20 -8 0 20
4 16 -12 80 -16 -7 76 -16 7 76 -16 12 80 -16
4 16 12 80 16 7 76 16 -7 76 16 -12 80 16
4 16 12 80 16 -12 80 16 -8 80 20 8 80 20
4 16 8 80 -20 -8 80 -20 -12 80 -16 12 80 -16
2 24 -8 80 20 8 80 20
2 24 12 80 16 -12 80 16
2 24 -8 80 -20 8 80 -20
2 24 12 80 -16 -12 80 -16
4 16 -7 76 16 7 76 16 7 2.75 16 -7 2.75 16
2 24 7 2.75 16 -7 2.75 16
2 24 7 68.25 -16 -7 68.25 -16
4 16 7 68.25 -16 7 76 -16 -7 76 -16 -7 68.25 -16
4 16 8 68.25 -15 7 68.25 -16 -7 68.25 -16 -8 68.25 -15
4 16 -8 2.75 8 -7 2.75 16 7 2.75 16 8 2.75 8
4 16 -8 68.25 -15 -8 68.25 -8 8 68.25 -8 8 68.25 -15

1 16 0 2.75 0 8 0 0 0 65.5 0 0 0 8 2-4cyli.dat
1 16 0 2.75 0 8 0 0 0 1 0 0 0 8 2-4edge.dat
1 16 0 2.75 0 -8 0 0 0 -1 0 0 0 8 2-4ndis.dat
1 16 0 68.25 0 8 0 0 0 -1 0 0 0 -8 2-4ndis.dat
1 16 0 68.25 0 8 0 0 0 -1 0 0 0 -8 2-4edge.dat
1 16 0 68.25 0 8 0 0 0 7.75 0 0 0 8 4-4cyli.dat
1 16 0 20 -20 1 0 0 0 0 -1 0 12 0 axl5hol8.dat
1 16 0 60 -20 1 0 0 0 0 -1 0 12 0 axl5hol8.dat
1 16 0 20 -8 1 0 0 0 0 -1 0 1 0 axl5end.dat
1 16 0 60 -8 1 0 0 0 0 -1 0 1 0 axl5end.dat
1 16 0 20 -8 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 60 -8 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 20 -8 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 60 -8 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 20 -20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 60 -20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 20 -20 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 60 -20 1 0 0 0 0 -1 0 1 0 axl5hol9.dat
1 16 0 20 -20 1 0 0 0 0 -1 0 1 0 axl5ho10.dat
1 16 0 60 -20 1 0 0 0 0 -1 0 1 0 axl5ho10.dat

4 16 -4 3.15 -20 -4 3.15 -8.75 4 3.15 -8.75 4 3.15 -20
4 16 -4 3.15 -20 4 3.15 -20 8 0 -20 -8 0 -20
2 24 4 3.15 -20 -4 3.15 -20
2 24 -4 3.15 -8.75 4 3.15 -8.75
3 16 0 12 -8.75 4 3.15 -8.75 -4 3.15 -8.75
3 16 4 70 -20 0 66 -20 -4 70 -20
4 16 -7.704 75.543 -20 -8 80 -20 8 80 -20 7.704 75.543 -20
4 16 7.704 75.543 -20 5.757 74.242 -20 -5.757 74.242 -20 -7.704 75.543 -20
4 16 5.757 74.242 -20 4.457 72.296 -20 -4.457 72.296 -20 -5.757 74.242 -20
4 16 4.457 72.296 -20 4 70 -20 -4 70 -20 -4.457 72.296 -20

5 24 0 12 -8.75 0 12 -20 3.062 12.609 -20 -3.062 12.609 -8.75
5 24 0 28 -20 0 28 -8.75 3.062 27.391 -8.75 -3.062 27.391 -20
5 24 0 52 -8.75 0 52 -20 3.062 52.609 -20 -3.062 52.609 -8.75

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © Steve Bliss
Licensed under CC BY 4.0
