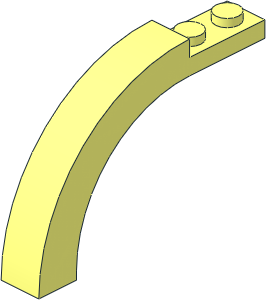

0 Arch 1 x 6 x 3.333 with Curved Top and Two Studs
0 Name: 6060.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2000-12-11 [sbliss] Replaced 'curved' surfaces with primitives.
0 !HISTORY 2002-01-06 [sbliss] Made BFC compliant, added missing cylinder and edgeline.
0 !HISTORY 2003-03-12 [PTadmin] Official Update 2003-01
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-10-22 [GeraldLasser] Complete Rewrite, Original by James Jessiman
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6060s01.dat
4 16 -6 16 -31.934 -6 16 -20 -6 4.2636 -24 -6 4.6509 -29.625
4 16 6 4.2636 -24 6 16 -20 6 16 -31.934 6 4.6509 -29.625
4 16 6 16 -24 6 4.2636 -24 -6 4.2636 -24 -6 16 -24
2 24 -6 4.2636 -24 6 4.2636 -24
2 24 6 4.2636 -24 6 16 -24
2 24 -6 4.2636 -24 -6 16 -24
1 16 0 16 -22 6 0 0 0 -1 0 0 0 -2 rect3.dat
1 16 0 12 -18 2 0 0 0 3.5 0 0 0 2 box4-1.dat
4 16 10 16 -20 6 16 -20 6 16 16 10 16 20
4 16 10 16 20 6 16 16 -6 16 16 -10 16 20
4 16 -10 16 20 -6 16 16 -6 16 -20 -10 16 -20
1 16 0 12 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 0 16 -2 6 0 0 0 -4 0 0 0 18 box5.dat
1 16 0 16 0 10 0 0 0 -8 0 0 0 20 box4-4a.dat
1 16 0 8 10 1 0 0 0 1 0 0 0 1 stud.dat
1 16 0 8 -10 1 0 0 0 1 0 0 0 1 stud.dat
history:
0 !HISTORY 2024-10-22 [GeraldLasser] COmplete Rewrite, Original by James Jessiman
to
0 !HISTORY 2024-10-22 [GeraldLasser] Complete Rewrite, Original by James Jessiman
description:
~Arch 1 x 6 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 6 x 3.333 with Curved Top and Two Studs
Removed ~ and typo in history
description:
~Arch 1 x 6 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 6 x 3.333 with Curved Top and Two Studs
Tried again to remove tilde
history:
0 !HISTORY 2024-10-22 [GeraldLasser] Complete Rewrite, Original by James Jessiman
to
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2000-12-11 [sbliss] Replaced 'curved' surfaces with primitives.
0 !HISTORY 2002-01-06 [sbliss] Made BFC compliant, added missing cylinder and edgeline.
0 !HISTORY 2003-03-12 [PTadmin] Official Update 2003-01
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-10-22 [GeraldLasser] Complete Rewrite, Original by James Jessiman
added old History
this is practically the same, as it had a lot of overlaps and the chance for the new shrter part opened the opportunity to fix this by using modern day primitives
keywords:
to
description:
~Arch 1 x 6 x 3.333 with Curved Top and Two Studs
to
~Arch 1 x 6 x 3.333 with Curved Top and Two Studs
keywords:
to
description:
~Arch 1 x 6 x 3.333 with Curved Top and Two Studs
to
Arch 1 x 6 x 3.333 with Curved Top and Two Studs
This part is copyright © James Jessiman
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Steve Bliss,
Gerald Lasser,
Orion Pobursky,
