Official File parts/60614.dat
Part Attributes:
File Header:

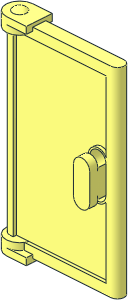

0 Door 1 x 2 x 3 with Holes in Handle
0 Name: 60614.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2010-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP In windowframe 60594 place door at -32 4 -5 and 32 64 -5
0 BFC CERTIFY CCW
0 !KEYWORDS 4132, 60594, 60598, 60806
0 !HISTORY 2008-08-25 {LEGO Universe Team} Original part shape
0 !HISTORY 2010-05-30 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
Show contents
1 16 0 60 0 2 0 0 0 -2 0 0 0 -2 bump5000.dat
1 16 0 60 0 0 0 2 0 -1 0 -2 0 0 2-4ndis.dat
1 16 0 60 0 0 0 -4 0 1 0 4 0 0 2-4edge.dat
1 16 0 60 0 0 0 -2 0 -1 0 -2 0 0 2-4ring1.dat
4 16 0 60 2 0 60 4 6 60 4 2 60 2
4 16 2 60 -2 6 60 -4 0 60 -4 0 60 -2
4 16 2 60 2 6 60 4 6 60 -4 2 60 -2
1 16 3 59 -3 0 0 3 -1 0 0 0 -1 0 box2-7.dat
1 16 3 59 3 0 0 3 1 0 0 0 1 0 box2-7.dat
1 16 6 59.5 0 0 -1 0 0 0 0.5 -2 0 0 rect2p.dat
1 16 0 58 0 0 0 -4 0 2 0 4 0 0 2-4cyli.dat
1 16 0 58 0 0 0 4 0 1 0 -4 0 0 2-4edge.dat
2 24 3.382 58 -2 3.382 56 -2
2 24 3.382 58 2 3.382 56 2
2 24 3.382 58 -2 6 58 -2
2 24 3.382 58 2 6 58 2
3 16 1.5308 58 -3.6956 0 58 -4 6 58 -4
3 16 2.8284 58 -2.8284 1.5308 58 -3.6956 6 58 -4
4 16 3.382 58 -2 2.8284 58 -2.8284 6 58 -4 6 58 -2
4 16 2.8284 58 2.8284 3.382 58 2 6 58 2 6 58 4
3 16 1.5308 58 3.6956 2.8284 58 2.8284 6 58 4
3 16 0 58 4 1.5308 58 3.6956 6 58 4
1 16 0 56 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 56 0 4 0 0 0 2 0 0 0 4 4-4cyli.dat
1 16 0 56 0 4 0 0 0 1 0 0 0 4 4-4disc.dat
1 16 -1 56 0 0 0 -2 0 1 0 2 0 0 2-4edge.dat
2 24 0 56 -1 0 56 -2
2 24 0 56 -2 -1 56 -2
2 24 6 59 -2 6 58 -2
2 24 6 59 2 6 58 2
1 16 30 59 0 0 0 2 0 1 0 -2 0 0 2-4edge.dat
1 16 30 59 0 0 0 2 0 -1 0 2 0 0 2-4disc.dat
1 16 18 59 0 -12 0 0 0 -1 0 0 0 2 rect2p.dat
2 24 3.382 56 -2 28.5 56 -2
2 24 0 56 -1 28.5 56 -1
4 16 3.382 56 -2 28.5 56 -2 28.5 56 -1 0 56 -1
4 16 3.382 58 -2 6 58 -2 28.5 56 -2 3.382 56 -2
4 16 30 59 -2 28.5 56 -2 6 58 -2 6 59 -2
3 16 6 58 2 3.382 58 2 3.382 56 2
0 // top
1 16 0 0 0 2 0 0 0 2 0 0 0 2 bump5000.dat
1 16 0 0 0 0 0 2 0 1 0 -2 0 0 2-4ndis.dat
1 16 0 0 0 0 0 -4 0 1 0 4 0 0 2-4edge.dat
1 16 0 0 0 0 0 -2 0 1 0 -2 0 0 2-4ring1.dat
4 16 2 0 2 6 0 4 0 0 4 0 0 2
4 16 0 0 -2 0 0 -4 6 0 -4 2 0 -2
4 16 2 0 -2 6 0 -4 6 0 4 2 0 2
1 16 3 1 -3 0 0 3 -1 0 0 0 -1 0 box2-7.dat
1 16 3 1 3 0 0 3 1 0 0 0 1 0 box2-7.dat
1 16 6 0.5 0 0 -1 0 0 0 0.5 -2 0 0 rect2p.dat
1 16 0 2 0 0 0 -4 0 -2 0 4 0 0 2-4cyli.dat
1 16 0 2 0 0 0 4 0 1 0 -4 0 0 2-4edge.dat
2 24 3.382 2 -2 3.382 4 -2
2 24 3.382 2 2 3.382 4 2
2 24 3.382 2 -2 6 2 -2
2 24 3.382 2 2 6 2 2
3 16 6 2 -4 0 2 -4 1.5308 2 -3.6956
3 16 6 2 -4 1.5308 2 -3.6956 2.8284 2 -2.8284
4 16 6 2 -2 6 2 -4 2.8284 2 -2.8284 3.382 2 -2
4 16 6 2 4 6 2 2 3.382 2 2 2.8284 2 2.8284
3 16 6 2 4 2.8284 2 2.8284 1.5308 2 3.6956
3 16 6 2 4 1.5308 2 3.6956 0 2 4
1 16 0 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 4 0 4 0 0 0 -2 0 0 0 4 4-4cyli.dat
1 16 0 4 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 -1 4 0 0 0 -2 0 1 0 2 0 0 2-4edge.dat
2 24 0 4 -1 0 4 -2
2 24 0 4 -2 -1 4 -2
2 24 6 1 -2 6 2 -2
2 24 6 1 2 6 2 2
1 16 30 1 0 0 0 2 0 -1 0 -2 0 0 2-4edge.dat
1 16 30 1 0 0 0 2 0 1 0 2 0 0 2-4disc.dat
1 16 18 1 0 -12 0 0 0 1 0 0 0 -2 rect2p.dat
2 24 3.382 4 -2 28.5 4 -2
2 24 0 4 -1 28.5 4 -1
4 16 0 4 -1 28.5 4 -1 28.5 4 -2 3.382 4 -2
4 16 3.382 4 -2 28.5 4 -2 6 2 -2 3.382 2 -2
4 16 6 1 -2 6 2 -2 28.5 4 -2 30 1 -2
3 16 3.382 4 2 3.382 2 2 6 2 2
0 // backside
1 16 -0.5 30 -1.5 0 0.5 0 26 0 0 0 0 -0.5 box2-11.dat
2 24 0 56 -1 0 4 -1
1 16 -1 56 0 0 0 -2 0 -52 0 2 0 0 2-4cyli.dat
1 16 1.19 30 2 2.191 0 0 0 0 26 0 -1 0 rect2p.dat
1 16 26 26 2 -2.5 0 0 0 0 -2.5 0 -1 0 4-4edge.dat
1 16 26 26 2 -2.5 0 0 0 0 -2.5 0 -1 0 4-4ndis.dat
1 16 26 34 2 -2.5 0 0 0 0 -2.5 0 -1 0 4-4edge.dat
1 16 26 34 2 -2.5 0 0 0 0 -2.5 0 -1 0 4-4ndis.dat
4 16 26 28.5 2 28.5 28.5 2 28.5 31.5 2 26 31.5 2
4 16 23.5 28.5 2 26 28.5 2 26 31.5 2 23.5 31.5 2
4 16 23.5 23.5 2 23.5 36.5 2 3.382 56 2 3.382 4 2
4 16 23.5 36.5 2 28.5 36.5 2 6 58 2 3.382 56 2
4 16 3.382 4 2 6 2 2 28.5 23.5 2 23.5 23.5 2
4 16 6 59 2 6 58 2 28.5 36.5 2 30 59 2
4 16 28.5 23.5 2 6 2 2 6 1 2 30 1 2
4 16 28.5 36.5 2 28.5 23.5 2 30 1 2 30 59 2
0 // handle
1 16 26 34 -1 -3 0 0 0 0 3 0 1 0 3-8edge.dat
1 16 26 34 -1 -3 0 0 0 0 3 0 1 0 1-4ndis.dat
1 16 26 34 -2 -2.5 0 0 0 0 2.5 0 1 0 2-4edge.dat
1 16 26 34 -2 -3 0 0 0 0 3 0 1 0 3-8edge.dat
1 16 26 34 -2 -3 0 0 0 0 3 0 1 0 3-8cyli.dat
1 16 28.31 35.84 -1.5 0 -0.5663 0.1893 0 -0.3787 -0.2831 0.5 0 0 rect3.dat
1 16 28.5 45.78 -1.5 0 1 0 0 0 10.2225 0.5 0 0 rect3.dat
1 16 26 34 -2 -0.5 0 0 0 0 0.5 0 1 0 2-4ring5.dat
0 BFC INVERTNEXT
1 16 26 34 -2 -2.5 0 0 0 0 2.5 0 4 0 4-4cyli.dat
1 16 26 34 -4.5 -2.5 0 0 0 0 2.5 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 26 34 -4.5 2.5 0 0 0 0 -2.5 0 2.5 0 2-4cyli.dat
1 16 26 34 -4.5 -2.5 0 0 0 0 -2.5 0 -1 0 4-4disc.dat
1 16 26 34 -7 -2.5 0 0 0 0 2.5 0 1 0 2-4edge.dat
1 16 26 34 -7 -2.5 0 0 0 0 2.5 0 2.5 0 2-4cyli.dat
1 16 26 34 -7 -2.5 0 0 0 0 2.5 0 1 0 2-4disc.dat
0 //
1 16 26 26 -1 -3 0 0 0 0 -3 0 1 0 3-8edge.dat
1 16 26 26 -1 -3 0 0 0 0 -3 0 1 0 1-4ndis.dat
1 16 26 26 -2 -2.5 0 0 0 0 -2.5 0 1 0 2-4edge.dat
1 16 26 26 -2 -3 0 0 0 0 -3 0 1 0 3-8edge.dat
1 16 26 26 -2 -3 0 0 0 0 -3 0 1 0 3-8cyli.dat
1 16 28.31 24.16 -1.5 0 -0.5663 0.1893 0 0.3787 0.2831 -0.5 0 0 rect3.dat
1 16 28.5 14.22 -1.5 0 1 0 0 0 -10.2225 -0.5 0 0 rect3.dat
1 16 26 26 -2 -0.5 0 0 0 0 -0.5 0 1 0 2-4ring5.dat
0 BFC INVERTNEXT
1 16 26 26 -2 -2.5 0 0 0 0 -2.5 0 4 0 4-4cyli.dat
1 16 26 26 -4.5 -2.5 0 0 0 0 -2.5 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 26 26 -4.5 2.5 0 0 0 0 2.5 0 2.5 0 2-4cyli.dat
1 16 26 26 -4.5 -2.5 0 0 0 0 2.5 0 -1 0 4-4disc.dat
1 16 26 26 -7 -2.5 0 0 0 0 -2.5 0 1 0 2-4edge.dat
1 16 26 26 -7 -2.5 0 0 0 0 -2.5 0 2.5 0 2-4cyli.dat
1 16 26 26 -7 -2.5 0 0 0 0 -2.5 0 1 0 2-4disc.dat
0 //
2 24 23 34 -1 23 26 -1
1 16 23.25 30 -1.5 0 -0.25 0 4 0 0 0 0 -0.5 box2-11.dat
1 16 23.5 30 -3.25 0 1 0 4 0 0 0 0 1.25 rect3.dat
1 16 28.5 30 -3.25 0 -1 0 -4 0 0 0 0 1.25 rect3.dat
1 16 23.5 30 -5.75 0 1 0 0 0 4 -1.25 0 0 rect1.dat
1 16 26 30 -5.75 0 2.5 0 -4 0 0 0 0 -1.25 box2-11.dat
5 24 23.5 34 -4.5 23.5 26 -4.5 23.5 34 -3 23.5 34 -6.5
5 24 28.5 34 -4.5 28.5 26 -4.5 28.5 34 -3 28.5 34 -6.5
0 // front
3 16 28.5 35.555 -1 26 37 -1 28.5 56 -1
3 16 28.5 4 -1 26 23 -1 28.5 24.445 -1
4 16 0 56 -1 28.5 56 -1 26 37 -1 23 37 -1
4 16 23 23 -1 26 23 -1 28.5 4 -1 0 4 -1
4 16 0 56 -1 23 37 -1 23 23 -1 0 4 -1
4 16 28.5 56 -2 30 59 -2 30 1 -2 28.5 4 -2
1 16 30 1 0 0 0 2 0 58 0 -2 0 0 2-4cyli.dat
