Official File parts/61190b.dat
Part Attributes:
File Header:

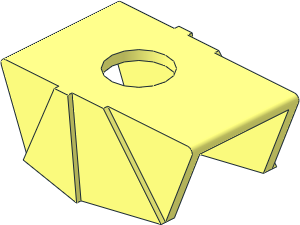

0 Minifig Armour SW Clone Trooper Pauldron
0 Name: 61190b.dat
0 Author: Greg Teft [gregteft]
0 !LDRAW_ORG Part UPDATE 2012-03
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 !HELP origin at 'shoulders', top is 2 LDU thick
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Neckwear
0 !KEYWORDS Armor, Clone Wars, Shoulders, Star Wars
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2012-12-24 [cwdee] Update category
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
