Official File parts/61190f.dat
Part Attributes:
File Header:

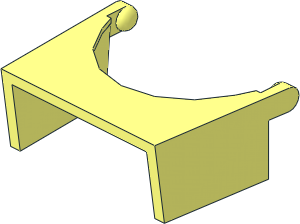

0 Minifig Helmet Visor SW Clone Trooper
0 Name: 61190f.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place visor at y=1.3 on helmet 61189
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS BrickLink 61190c, Rebrickable 61190c
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
1 16 16 0 0 0 -1.5 0 -2 0 0 0 0 2 4-8sphe.dat
1 16 16.1 0 0 -0.1 -1 0 -2 0 0 0 0 -2 2-4edge.dat
1 16 16.1 0 0 -0.1 1 0 -2 0 0 0 0 -2 2-4ndis.dat
1 16 16 0 0 0 0.1 0 -2 0 0 0 0 -2 2-4cyls.dat
1 16 16 0 0 0 2 0 -2 0 0 0 0 2 2-4cyli.dat
1 16 18 0 0 0 1 0 -2 0 0 0 0 2 2-4edge.dat
1 16 18 0 0 0 -1 0 -2 0 0 0 0 2 2-4chrd.dat
1 16 -16 0 0 0 1.5 0 -2 0 0 0 0 2 4-8sphe.dat
1 16 -16.1 0 0 0.1 1 0 -2 0 0 0 0 -2 2-4edge.dat
1 16 -16.1 0 0 0.1 -1 0 -2 0 0 0 0 -2 2-4ndis.dat
1 16 -16 0 0 0 -0.1 0 -2 0 0 0 0 -2 2-4cyls.dat
1 16 -16 0 0 0 -2 0 -2 0 0 0 0 2 2-4cyli.dat
1 16 -18 0 0 0 -1 0 -2 0 0 0 0 2 2-4edge.dat
1 16 -18 0 0 0 1 0 -2 0 0 0 0 2 2-4chrd.dat
0 BFC INVERTNEXT
1 16 0 -2 -1 0 0 -15 0 .9 0 -16 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 0 -2 -1 0 0 15 0 .9 0 -16 0 0 3-16cylo.dat
1 16 0 -2 -1 0 0 -15 0 1 0 -16 0 0 3-16ndis.dat
1 16 0 -2 -1 0 0 15 0 1 0 -16 0 0 3-16ndis.dat
1 16 0 -1.1 -1 0 0 -1 0 -1 0 -1.06667 0 0 3-16ring15.dat
1 16 0 -1.1 -1 0 0 1 0 -1 0 -1.06667 0 0 3-16ring15.dat
0 BFC INVERTNEXT
1 16 0 -1.1 -1 0 0 -16 0 2 0 -17 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 0 -1.1 -1 0 0 16 0 2 0 -17 0 0 3-16cylo.dat
1 16 0 .9 -1 0 0 -16 0 -1 0 -17 0 0 3-16tndis.dat
1 16 0 .9 -1 0 0 16 0 -1 0 -17 0 0 3-16tndis.dat
2 24 14 0 -25.7122 14 12 -24
2 24 14 12 -24 16 12 -24
2 24 18 -2 0 16 -2 -26
2 24 18 2 0 17.6667 2 -4
2 24 16 -2 -26 16 12 -24
2 24 17.6667 12 -4 16 12 -24
2 24 17.6667 2 -4 17.6667 12 -4
2 24 16 -2 0 16 -2 -4
2 24 16 -2 -4 15.1 -2 -4
2 24 16.2 2 0 16.2 2 -4
2 24 17.6667 2 -4 16.2 2 -4
2 24 15.95 12 -4 17.6667 12 -4
2 24 14.2977 0.9 -21.2902 14 0 -25.7122
2 24 14.7824 0.9 -7.5059 14.2977 0.9 -21.2902
2 24 14.7824 -1.1 -7.531005 15.0759 -1.1 -4.2664
2 24 15.0759 -1.1 -4.2664 15.25 -1.1 -4
2 24 15.25 -1.1 -4 15.1 -1.1 -4
2 24 15.58 12 -4.4 14 12 -24
2 24 15.95 12 -4 15.58 12 -4.4
2 24 14.7824 -1.1 -7.531005 14.7824 0.9 -7.5059
1 16 16.1 0 -3 0 1 -0.1 0 0 -2 -1 0 0 rect1.dat
3 16 14.7824 -1.1 -7.531005 13.8585 -1.1 -7.1232 15.1 -1.1 -4
1 16 14.47925 -1.55 -5.5616 0 1 0.62075 -0.45 0 0 0 0 1.5616 rect3.dat
4 16 15.95 8.4 -4 15.25 -1.1 -4 16 -2 -4 16.2 2 -4
4 16 15.25 -1.1 -4 15.1 -1.1 -4 15.1 -2 -4 16 -2 -4
4 16 15.95 12 -4 15.95 8.4 -4 16.2 2 -4 17.6667 12 -4
3 16 16.2 2 -4 17.6667 2 -4 17.6667 12 -4
4 16 18 2 0 17.6667 2 -4 16.2 2 -4 16.2 2 0
4 16 17.6667 2 -4 18 2 0 18 -2 0 16 -2 -26
4 16 16 -2 -26 16 12 -24 17.6667 12 -4 17.6667 2 -4
4 16 15.1 -2 -4 13.8585 -2 -7.1232 15 -2 -17 16 -2 -4
3 16 15.0759 -1.1 -4.2664 15.1 -1.1 -4 15.25 -1.1 -4
3 16 14.7824 0.9 -7.5059 15.0759 -1.1 -4.2664 15.58 8.4 -4.4
3 16 15.58 8.4 -4.4 15.58 12 -4.4 14 12 -24
4 16 15.58 12 -4.4 15.58 8.4 -4.4 15.95 8.4 -4 15.95 12 -4
3 16 15.58 8.4 -4.4 15.0759 -1.1 -4.2664 15.25 -1.1 -4
3 16 15.25 -1.1 -4 15.95 8.4 -4 15.58 8.4 -4.4
3 16 16 -2 0 16 -2 -4 18 -2 0
3 16 14 12 -24 14.7824 0.9 -7.5059 15.58 8.4 -4.4
3 16 14.7824 0.9 -7.5059 14.7824 -1.1 -7.531005 15.0759 -1.1 -4.2664
3 16 14 12 -24 14.2977 0.9 -21.2902 14.7824 0.9 -7.5059
3 16 14 0 -25.7122 14.2977 0.9 -21.2902 14 12 -24
4 16 18 -2 0 16 -2 -4 15 -2 -17 16 -2 -26
4 16 15.58 12 -4.4 15.95 12 -4 17.6667 12 -4 16 12 -24
3 16 14 12 -24 15.58 12 -4.4 16 12 -24
4 16 14 12 -24 16 12 -24 16 -2 -26 14 0 -25.7122
2 24 -14 0 -25.7122 -14 12 -24
2 24 -14 12 -24 -16 12 -24
2 24 -18 -2 0 -16 -2 -26
2 24 -18 2 0 -17.6667 2 -4
2 24 -16 -2 -26 -16 12 -24
2 24 -17.6667 12 -4 -16 12 -24
2 24 -17.6667 2 -4 -17.6667 12 -4
2 24 -16 -2 0 -16 -2 -4
2 24 -16 -2 -4 -15.1 -2 -4
2 24 -16.2 2 0 -16.2 2 -4
2 24 -17.6667 2 -4 -16.2 2 -4
2 24 -15.95 12 -4 -17.6667 12 -4
2 24 -14.2977 0.9 -21.2902 -14 0 -25.7122
2 24 -14.7824 0.9 -7.5059 -14.2977 0.9 -21.2902
2 24 -14.7824 -1.1 -7.531005 -15.0759 -1.1 -4.2664
2 24 -15.0759 -1.1 -4.2664 -15.25 -1.1 -4
2 24 -15.25 -1.1 -4 -15.1 -1.1 -4
2 24 -15.58 12 -4.4 -14 12 -24
2 24 -15.95 12 -4 -15.58 12 -4.4
2 24 -14.7824 -1.1 -7.531005 -14.7824 0.9 -7.5059
1 16 -16.1 0 -3 0 -1 -0.1 0 0 2 -1 0 0 rect1.dat
3 16 -15.1 -1.1 -4 -13.8585 -1.1 -7.1232 -14.7824 -1.1 -7.531005
1 16 -14.47925 -1.55 -5.5616 0 -1 -0.62075 0.45 0 0 0 0 1.5616 rect3.dat
4 16 -16 -2 -4 -15.25 -1.1 -4 -15.95 8.4 -4 -16.2 2 -4
4 16 -15.1 -2 -4 -15.1 -1.1 -4 -15.25 -1.1 -4 -16 -2 -4
4 16 -15.95 12 -4 -17.6667 12 -4 -16.2 2 -4 -15.95 8.4 -4
3 16 -17.6667 12 -4 -17.6667 2 -4 -16.2 2 -4
4 16 -16.2 2 -4 -17.6667 2 -4 -18 2 0 -16.2 2 0
4 16 -18 -2 0 -18 2 0 -17.6667 2 -4 -16 -2 -26
4 16 -17.6667 12 -4 -16 12 -24 -16 -2 -26 -17.6667 2 -4
4 16 -15 -2 -17 -13.8585 -2 -7.1232 -15.1 -2 -4 -16 -2 -4
3 16 -15.25 -1.1 -4 -15.1 -1.1 -4 -15.0759 -1.1 -4.2664
3 16 -15.58 8.4 -4.4 -15.0759 -1.1 -4.2664 -14.7824 0.9 -7.5059
3 16 -14 12 -24 -15.58 12 -4.4 -15.58 8.4 -4.4
4 16 -15.95 8.4 -4 -15.58 8.4 -4.4 -15.58 12 -4.4 -15.95 12 -4
3 16 -15.25 -1.1 -4 -15.0759 -1.1 -4.2664 -15.58 8.4 -4.4
3 16 -15.58 8.4 -4.4 -15.95 8.4 -4 -15.25 -1.1 -4
3 16 -18 -2 0 -16 -2 -4 -16 -2 0
3 16 -15.58 8.4 -4.4 -14.7824 0.9 -7.5059 -14 12 -24
3 16 -15.0759 -1.1 -4.2664 -14.7824 -1.1 -7.531005 -14.7824 0.9 -7.5059
3 16 -14.7824 0.9 -7.5059 -14.2977 0.9 -21.2902 -14 12 -24
3 16 -14 12 -24 -14.2977 0.9 -21.2902 -14 0 -25.7122
4 16 -15 -2 -17 -16 -2 -4 -18 -2 0 -16 -2 -26
4 16 -17.6667 12 -4 -15.95 12 -4 -15.58 12 -4.4 -16 12 -24
3 16 -16 12 -24 -15.58 12 -4.4 -14 12 -24
4 16 -16 -2 -26 -16 12 -24 -14 12 -24 -14 0 -25.7122
2 24 16 -2 -26 -16 -2 -26
2 24 -14 0 -25.7122 14 0 -25.7122
2 24 14.2977 0.9 -21.2902 -14.2977 0.9 -21.2902
4 16 14.2977 0.9 -21.2902 -14.2977 0.9 -21.2902 -14.7824 0.9 -18 14.7824 0.9 -18
4 16 -14.2977 0.9 -21.2902 14.2977 0.9 -21.2902 14 0 -25.7122 -14 0 -25.7122
4 16 -16 -2 -26 -14 0 -25.7122 14 0 -25.7122 16 -2 -26
4 16 -16 -2 -26 16 -2 -26 15 -2 -17 -15 -2 -17
5 24 -15.58 8.4 -4.4 -15.95 8.4 -4 -15.25 -1.1 -4 -15.58 12 -4.4
5 24 -14.7824 0.9 -7.5059 -15.0759 -1.1 -4.2664 -14.7824 -1.1 -7.531005 -15.58 8.4 -4.4
5 24 15.25 -1.1 -4 15.95 8.4 -4 15.58 8.4 -4.4 16 -2 -4
5 24 15.25 -1.1 -4 15.58 8.4 -4.4 15.0759 -1.1 -4.2664 15.95 8.4 -4
5 24 15.58 8.4 -4.4 14.7824 0.9 -7.5059 15.0759 -1.1 -4.2664 14 12 -24
5 24 -15.95 8.4 -4 -15.95 12 -4 -15.58 8.4 -4.4 -17.6667 12 -4
5 24 -15.25 -1.1 -4 -15.58 8.4 -4.4 -15.95 8.4 -4 -15.0759 -1.1 -4.2664
5 24 15.95 8.4 -4 15.58 8.4 -4.4 15.25 -1.1 -4 15.95 12 -4
5 24 -15.25 -1.1 -4 -15.95 8.4 -4 -15.58 8.4 -4.4 -16 -2 -4
5 24 -15.58 12 -4.4 -15.58 8.4 -4.4 -14 12 -24 -15.95 12 -4
5 24 15.58 8.4 -4.4 15.0759 -1.1 -4.2664 15.25 -1.1 -4 14.7824 0.9 -7.5059
5 24 -18 -2 0 -18 2 0 -17.6667 2 -4 -18 -1.8478 0.7654
5 24 -15.58 8.4 -4.4 -14 12 -24 -15.58 12 -4.4 -14.7824 0.9 -7.5059
5 24 -14.2977 0.9 -21.2902 -14 12 -24 -14.7824 0.9 -7.5059 -14 0 -25.7122
5 24 -15.0759 -1.1 -4.2664 -15.58 8.4 -4.4 -15.25 -1.1 -4 -14.7824 0.9 -7.5059
5 24 14.2977 0.9 -21.2902 14 12 -24 14 0 -25.7122 14.7824 0.9 -7.5059
5 24 15.58 8.4 -4.4 15.58 12 -4.4 15.95 8.4 -4 14 12 -24
5 24 14.7824 0.9 -7.5059 14 12 -24 14.2977 0.9 -21.2902 15.58 8.4 -4.4
5 24 15.95 12 -4 15.95 8.4 -4 15.58 12 -4.4 17.6667 12 -4
5 24 17.6667 2 -4 16 -2 -26 18 2 0 16 12 -24
5 24 -14 12 -24 -14.7824 0.9 -7.5059 -14.2977 0.9 -21.2902 -15.58 8.4 -4.4
5 24 15.0759 -1.1 -4.2664 14.7824 0.9 -7.5059 14.7824 -1.1 -7.531005 15.58 8.4 -4.4
5 24 15.58 8.4 -4.4 14 12 -24 14.7824 0.9 -7.5059 15.58 12 -4.4
5 24 -15.58 8.4 -4.4 -14.7824 0.9 -7.5059 -14 12 -24 -15.0759 -1.1 -4.2664
5 24 -17.6667 2 -4 -16 -2 -26 -17.6667 12 -4 -18 -2 0
5 24 18 2 0 18 -2 0 16 -2 -26 18 -1.8478 0.7654
