Official File parts/6142617d.dat
Part Attributes:
File Header:

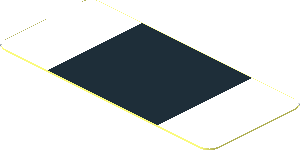

0 Sticker 0.8 x 1.8 with Black Stripe on White Background
0 Name: 6142617d.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 1969, Camaro, Chevrolet, Drag, Race, Set 75874, Speed Champions
0 !KEYWORDS Z/28
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show contents
0 // Primitives
1 16 -16.5 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 0 0 18 0 .25 0 6.5 0 0 box3u12.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -16.5 0 6.5 -1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 16.5 0 6.5 1.5 0 0 0 -.25 0 0 0 1.5 1-4cyli.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 0 -6.5 1.5 0 0 0 -.25 0 0 0 -1.5 1-4cyli.dat
1 15 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 15 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 15 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Bottom face
4 16 16.5 0 8 18 0 6.5 -18 0 6.5 -16.5 0 8
4 16 16.5 0 -8 -16.5 0 -8 -18 0 -6.5 18 0 -6.5
0 // Lateral face
3 16 -16.5 0 8 -16.5 -.25 8 -9.25 -.25 8
4 16 -16.5 0 8 -9.25 -.25 8 9.25 -.25 8 16.5 0 8
3 16 16.5 0 8 9.25 -.25 8 16.5 -.25 8
3 16 -16.5 0 -8 -9.25 -.25 -8 -16.5 -.25 -8
4 16 -16.5 0 -8 16.5 0 -8 9.25 -.25 -8 -9.25 -.25 -8
3 16 16.5 0 -8 16.5 -.25 -8 9.25 -.25 -8
0 // Top face
0 // Black face
4 0 -9.25 -.25 8 -9.25 -.25 -8 9.25 -.25 -8 9.25 -.25 8
0 // White faces
4 15 -16.5 -.25 8 -18 -.25 6.5 -18 -.25 -6.5 -16.5 -.25 -8
4 15 -16.5 -.25 8 -16.5 -.25 -8 -9.25 -.25 -8 -9.25 -.25 8
4 15 16.5 -.25 8 9.25 -.25 8 9.25 -.25 -8 16.5 -.25 -8
4 15 16.5 -.25 8 16.5 -.25 -8 18 -.25 -6.5 18 -.25 6.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
