Official File parts/61485.dat
Part Attributes:
File Header:

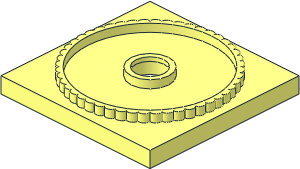

0 Turntable Flat Base 4 x 4
0 Name: 61485.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-11-01 [MagFors] Reduced hight on clic-ring.
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 20 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -20 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -20 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -20 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 20 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 20 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
0 BFC INVERTNEXT
1 16 0 8 0 36 0 0 0 -4 0 0 0 36 box4.dat
1 16 0 8 0 40 0 0 0 -8 0 0 0 40 box4.dat
4 16 -40 8 -40 -36 8 -36 36 8 -36 40 8 -40
4 16 40 8 40 36 8 36 -36 8 36 -40 8 40
4 16 -40 8 40 -36 8 36 -36 8 -36 -40 8 -40
4 16 40 8 -40 36 8 -36 36 8 36 40 8 40
4 16 36 4 36 8 4 8 -8 4 8 -36 4 36
4 16 -36 4 -36 -8 4 -8 8 4 -8 36 4 -36
4 16 -36 4 36 -8 4 8 -8 4 -8 -36 4 -36
4 16 36 4 -36 8 4 -8 8 4 8 36 4 36
1 16 0 4 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 4 0 8 0 0 0 -6 0 0 0 8 4-4cylo.dat
1 16 0 -2 0 0.5 0 0 0 -1 0 0 0 -0.5 4-4ring15.dat
0 BFC INVERTNEXT
1 16 0 -4 0 7.5 0 0 0 2 0 0 0 7.5 4-4cylo.dat
1 16 0 -4 0 0.5 0 0 0 1 0 0 0 0.5 4-4ring15.dat
1 16 0 -4 0 2 0 0 0 1 0 0 0 2 4-4ring4.dat
1 16 0 -4 0 10 0 0 0 4 0 0 0 10 4-4cylo.dat
1 16 0 0 0 10 0 0 0 1 0 0 0 10 4-4ndis.dat
4 16 -40 0 40 -10 0 10 10 0 10 40 0 40
4 16 40 0 -40 10 0 -10 -10 0 -10 -40 0 -40
4 16 40 0 40 10 0 10 10 0 -10 40 0 -40
4 16 -40 0 -40 -10 0 -10 -10 0 10 -40 0 40
1 16 2.251 -4 34.349 2.2516 0 0.0981 0 4 0 -0.1476 0 1.4968 2-4cylc.dat
1 16 6.716 -4 33.763 2.213 0 0.2926 0 4 0 -0.4402 0 1.4712 2-4cylc.dat
1 16 11.065 -4 32.598 2.1366 0 0.4822 0 4 0 -0.7253 0 1.4204 2-4cylc.dat
1 16 15.225 -4 30.875 2.0237 0 0.6634 0 4 0 -0.998 0 1.3453 2-4cylc.dat
1 16 19.125 -4 28.623 1.8761 0 0.8334 0 4 0 -1.2536 0 1.2472 2-4cylc.dat
1 16 22.697 -4 25.882 1.6964 0 0.989 0 4 0 -1.4877 0 1.1278 2-4cylc.dat
1 16 25.882 -4 22.698 1.4877 0 1.1278 0 4 0 -1.6964 0 0.989 2-4cylc.dat
1 16 28.623 -4 19.125 1.2536 0 1.2472 0 4 0 -1.8761 0 0.8334 2-4cylc.dat
1 16 30.875 -4 15.225 0.998 0 1.3453 0 4 0 -2.0237 0 0.6634 2-4cylc.dat
1 16 32.598 -4 11.065 0.7253 0 1.4204 0 4 0 -2.1366 0 0.4822 2-4cylc.dat
1 16 33.763 -4 6.715 0.4402 0 1.4712 0 4 0 -2.213 0 0.2926 2-4cylc.dat
1 16 34.35 -4 2.251 0.1476 0 1.4968 0 4 0 -2.2516 0 0.0981 2-4cylc.dat
1 16 34.349 -4 -2.251 -0.1476 0 1.4968 0 4 0 -2.2516 0 -0.0981 2-4cylc.dat
1 16 33.762 -4 -6.716 -0.4402 0 1.4712 0 4 0 -2.213 0 -0.2926 2-4cylc.dat
1 16 32.597 -4 -11.065 -0.7253 0 1.4204 0 4 0 -2.1366 0 -0.4822 2-4cylc.dat
1 16 30.874 -4 -15.226 -0.998 0 1.3453 0 4 0 -2.0237 0 -0.6634 2-4cylc.dat
1 16 28.622 -4 -19.125 -1.2536 0 1.2472 0 4 0 -1.8761 0 -0.8334 2-4cylc.dat
1 16 25.881 -4 -22.697 -1.4877 0 1.1278 0 4 0 -1.6964 0 -0.989 2-4cylc.dat
1 16 22.697 -4 -25.881 -1.6964 0 0.989 0 4 0 -1.4877 0 -1.1278 2-4cylc.dat
1 16 19.125 -4 -28.622 -1.8761 0 0.8334 0 4 0 -1.2536 0 -1.2472 2-4cylc.dat
1 16 15.226 -4 -30.874 -2.0237 0 0.6634 0 4 0 -0.998 0 -1.3453 2-4cylc.dat
1 16 11.066 -4 -32.598 -2.1366 0 0.4822 0 4 0 -0.7253 0 -1.4204 2-4cylc.dat
1 16 6.716 -4 -33.763 -2.213 0 0.2926 0 4 0 -0.4402 0 -1.4712 2-4cylc.dat
1 16 2.252 -4 -34.351 -2.2516 0 0.0981 0 4 0 -0.1476 0 -1.4968 2-4cylc.dat
1 16 -2.251 -4 -34.351 -2.2516 0 -0.0981 0 4 0 0.1476 0 -1.4968 2-4cylc.dat
1 16 -6.715 -4 -33.764 -2.213 0 -0.2926 0 4 0 0.4402 0 -1.4712 2-4cylc.dat
1 16 -11.065 -4 -32.599 -2.1366 0 -0.4822 0 4 0 0.7253 0 -1.4204 2-4cylc.dat
1 16 -15.225 -4 -30.876 -2.0237 0 -0.6634 0 4 0 0.998 0 -1.3453 2-4cylc.dat
1 16 -19.125 -4 -28.624 -1.8761 0 -0.8334 0 4 0 1.2536 0 -1.2472 2-4cylc.dat
1 16 -22.697 -4 -25.883 -1.6964 0 -0.989 0 4 0 1.4877 0 -1.1278 2-4cylc.dat
1 16 -25.882 -4 -22.699 -1.4877 0 -1.1278 0 4 0 1.6964 0 -0.989 2-4cylc.dat
1 16 -28.623 -4 -19.126 -1.2536 0 -1.2472 0 4 0 1.8761 0 -0.8334 2-4cylc.dat
1 16 -30.875 -4 -15.226 -0.998 0 -1.3453 0 4 0 2.0237 0 -0.6634 2-4cylc.dat
1 16 -32.599 -4 -11.066 -0.7253 0 -1.4204 0 4 0 2.1366 0 -0.4822 2-4cylc.dat
1 16 -33.764 -4 -6.718 -0.4402 0 -1.4712 0 4 0 2.213 0 -0.2926 2-4cylc.dat
1 16 -34.352 -4 -2.252 -0.1476 0 -1.4968 0 4 0 2.2516 0 -0.0981 2-4cylc.dat
1 16 -34.352 -4 2.251 0.1476 0 -1.4968 0 4 0 2.2516 0 0.0981 2-4cylc.dat
1 16 -33.765 -4 6.716 0.4402 0 -1.4712 0 4 0 2.213 0 0.2926 2-4cylc.dat
1 16 -32.6 -4 11.066 0.7253 0 -1.4204 0 4 0 2.1366 0 0.4822 2-4cylc.dat
1 16 -30.877 -4 15.226 0.998 0 -1.3453 0 4 0 2.0237 0 0.6634 2-4cylc.dat
1 16 -28.625 -4 19.126 1.2536 0 -1.2472 0 4 0 1.8761 0 0.8334 2-4cylc.dat
1 16 -25.884 -4 22.698 1.4877 0 -1.1278 0 4 0 1.6964 0 0.989 2-4cylc.dat
1 16 -22.7 -4 25.883 1.6964 0 -0.989 0 4 0 1.4877 0 1.1278 2-4cylc.dat
1 16 -19.127 -4 28.624 1.8761 0 -0.8334 0 4 0 1.2536 0 1.2472 2-4cylc.dat
1 16 -15.227 -4 30.876 2.0237 0 -0.6634 0 4 0 0.998 0 1.3453 2-4cylc.dat
1 16 -11.067 -4 32.6 2.1366 0 -0.4822 0 4 0 0.7253 0 1.4204 2-4cylc.dat
1 16 -6.717 -4 33.766 2.213 0 -0.2926 0 4 0 0.4402 0 1.4712 2-4cylc.dat
1 16 -2.252 -4 34.354 2.2516 0 -0.0981 0 4 0 0.1476 0 1.4968 2-4cylc.dat
2 24 4.503 0 34.204 4.503 -4 34.204
2 24 8.929 0 33.323 8.929 -4 33.323
2 24 13.202 0 31.873 13.202 -4 31.873
2 24 17.249 0 29.877 17.249 -4 29.877
2 24 21.001 0 27.37 21.001 -4 27.37
2 24 24.394 0 24.395 24.394 -4 24.395
2 24 27.37 0 21.002 27.37 -4 21.002
2 24 29.877 0 17.25 29.877 -4 17.25
2 24 31.873 0 13.202 31.873 -4 13.202
2 24 33.323 0 8.929 33.323 -4 8.929
2 24 34.204 0 4.503 34.204 -4 4.503
2 24 34.5 0 0 34.5 -4 0
2 24 34.204 0 -4.503 34.204 -4 -4.503
2 24 33.323 0 -8.929 33.323 -4 -8.929
2 24 31.873 0 -13.202 31.873 -4 -13.202
2 24 29.877 0 -17.249 29.877 -4 -17.249
2 24 27.37 0 -21.001 27.37 -4 -21.001
2 24 24.395 0 -24.394 24.395 -4 -24.394
2 24 21.002 0 -27.37 21.002 -4 -27.37
2 24 17.25 0 -29.877 17.25 -4 -29.877
2 24 13.202 0 -31.873 13.202 -4 -31.873
2 24 8.929 0 -33.323 8.929 -4 -33.323
2 24 4.503 0 -34.204 4.503 -4 -34.204
2 24 0 0 -34.5 0 -4 -34.5
2 24 -4.503 0 -34.204 -4.503 -4 -34.204
2 24 -8.929 0 -33.323 -8.929 -4 -33.323
2 24 -13.202 0 -31.873 -13.202 -4 -31.873
2 24 -17.249 0 -29.877 -17.249 -4 -29.877
2 24 -21.001 0 -27.37 -21.001 -4 -27.37
2 24 -24.394 0 -24.395 -24.394 -4 -24.395
2 24 -27.37 0 -21.002 -27.37 -4 -21.002
2 24 -29.877 0 -17.25 -29.877 -4 -17.25
2 24 -31.873 0 -13.202 -31.873 -4 -13.202
2 24 -33.323 0 -8.929 -33.323 -4 -8.929
2 24 -34.204 0 -4.503 -34.204 -4 -4.503
2 24 -34.5 0 0 -34.5 -4 0
2 24 -34.204 0 4.503 -34.204 -4 4.503
2 24 -33.323 0 8.929 -33.323 -4 8.929
2 24 -31.873 0 13.202 -31.873 -4 13.202
2 24 -29.877 0 17.249 -29.877 -4 17.249
2 24 -27.37 0 21.001 -27.37 -4 21.001
2 24 -24.395 0 24.394 -24.395 -4 24.394
2 24 -21.002 0 27.37 -21.002 -4 27.37
2 24 -17.25 0 29.877 -17.25 -4 29.877
2 24 -13.202 0 31.873 -13.202 -4 31.873
2 24 -8.929 0 33.323 -8.929 -4 33.323
2 24 -4.503 0 34.204 -4.503 -4 34.204
2 24 0 0 34.5 0 -4 34.5
1 16 0 0 0 33 0 0 0 4 0 0 0 33 48\4-4edge.dat
1 16 0 -4 0 33 0 0 0 4 0 0 0 33 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -4 0 33 0 0 0 4 0 0 0 33 48\4-4cyli.dat
1 16 0 -4 0 1.5 0 0 0 1 0 0 0 1.5 48\4-4ring22.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Update ring primitives via script. Do not hold.
2024-03-23 00:52:07
2024-03-24 17:25:40
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Santeri Piippo
Licensed under CC BY 4.0
