File Detail parts/6156.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/6156.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

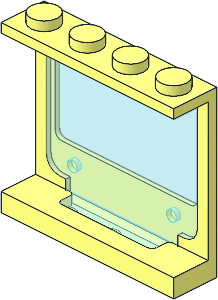

Panel 1 x 4 x 3 with Fixed Transparent Light Blue Glass

File Header:

0 Panel  1 x  4 x  3 with Fixed Transparent Light Blue Glass
0 Name: 6156.dat
0 Author: Thomas Burger [grapeape]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 1998-07-15 [PTadmin] Official Update 1998-07
0 !HISTORY 2007-07-16 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2017-09-03 [MagFors] bfc'd, subfiled glass
0 !HISTORY 2020-06-13 [MagFors] Made subfiles
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6156s01.dat
1 43 0 0 0 1 0 0 0 1 0 0 0 1 s\6156s02.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2017-09-04 17:05:01

Alex Taylor [anathema]

posted a vote of Hold.

2020-06-02 20:25:02

I'm fairly sure the glass here should be Trans Light Blue rather than Trans Medium Blue

Magnus Forsberg [MagFors]

made the following comment.

2020-06-13 16:15:02

I agree, the colour is wrong.
Do you know if this is an assembly or a dual-mould? Partnumbers? Maybe the glass as a subfile is wrong?
Should I make 2 unknown partnumbers instead?

Alex Taylor [anathema]

posted a vote of Hold.

2020-06-13 17:00:01

Unfortunately I don't actually have one to check, but I suspect from the photos online that it's an assembly, albeit one which comes preassembled and is probably not separable.

Willy Tschager [Holly-Wood]

made the following comment.

2020-08-25 12:30:01

Looks like a dual mold:

https://i.ebayimg.com/images/g/a9wAAOSwg9RdxsBS/s-l1600.jpg

https://i.ebayimg.com/images/g/dCcAAOSw9~5ZW7Dw/s-l1600.jpg

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-07-20 22:40:01

I'm reworking this one. And the question remains. Is it an assembly or a dual mould?
Should I have edge lines between the two sub-parts?

From images it looks like an impossible assemby.
Did lego do dual moulding in the early 90ties? This part is only in 3 sets in the year 94-98.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2021-07-21 15:40:01

I decided to go for a dual mould design, without edge lines between the subparts.

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-07-23 13:30:01

Wrong stud orientation.

This looks really strange without the edges. As you are going to treat the faces as there where no interruption why did you keep these:

2 24 33 7 8 33 45 8
2 24 -33 45 8 -33 7 8

I think leaving them all out is a Bad Idea(TM)

Magnus Forsberg [MagFors]

made the following comment.

2021-07-23 21:15:01

Stud orientation fixed in the subfile.

Yes, I find the images of this part confusing, and I can't understand how it is put together.
I see nothing wrong in keeping the internal edge lines visible. I even added some lines to hint the underside of the topstuds.

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2021-07-27 01:35:01

Sorry, but I'm gonna keep my hold. Either all edges in or all edges out. This way it looks really strange.

Magnus Forsberg [MagFors]

made the following comment.

2022-02-13 19:35:01

Added more edge lines in the subfile.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2022-02-14 13:35:01

Max Martin Richter [MMR1988]
