Official File parts/6177949b.dat
Part Attributes:
File Header:

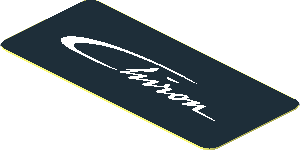

0 Sticker 0.8 x 1.8 Bugatti "Chiron" Logo
0 Name: 6177949b.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
Show contents
1 0 0 -0.25 0 1 0 0 0 1 0 0 0 1 s\logobugat01.dat
0 // Bottom face
4 16 16.5 0 8 18 0 6.5 -18 0 6.5 -16.5 0 8
4 16 18 0 6.5 18 0 -6.5 -18 0 -6.5 -18 0 6.5
4 16 -18 0 -6.5 18 0 -6.5 16.5 0 -8 -16.5 0 -8
1 16 -16.5 0 6.5 0 0 -1.5 0 -1 0 1.5 0 0 1-4chrd.dat
1 16 16.5 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 -16.5 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 16.5 0 -6.5 0 0 1.5 0 -1 0 -1.5 0 0 1-4chrd.dat
0 // Lateral faces
4 16 -16.5 0 8 -16.5 -0.25 8 16.5 -0.25 8 16.5 0 8
1 16 -16.5 -0.25 6.5 0 0 -1.5 0 0.25 0 1.5 0 0 1-4cyli.dat
1 16 16.5 -0.25 6.5 1.5 0 0 0 0.25 0 0 0 1.5 1-4cyli.dat
4 16 -18 0 -6.5 -18 -0.25 -6.5 -18 -0.25 6.5 -18 0 6.5
4 16 18 0 6.5 18 -0.25 6.5 18 -0.25 -6.5 18 0 -6.5
1 16 -16.5 -0.25 -6.5 -1.5 0 0 0 0.25 0 0 0 -1.5 1-4cyli.dat
1 16 16.5 -0.25 -6.5 0 0 1.5 0 0.25 0 -1.5 0 0 1-4cyli.dat
4 16 16.5 0 -8 16.5 -0.25 -8 -16.5 -0.25 -8 -16.5 0 -8
0 // Top face
4 0 -16.5 -0.25 8 -18 -0.25 6.5 18 -0.25 6.5 16.5 -0.25 8
4 0 -18 -0.25 6.5 -13.5 -0.25 2.515 13.5 -0.25 2.515 18 -0.25 6.5
4 0 -18 -0.25 6.5 -18 -0.25 -6.5 -13.5 -0.25 -2.515 -13.5 -0.25 2.515
4 0 18 -0.25 -6.5 18 -0.25 6.5 13.5 -0.25 2.515 13.5 -0.25 -2.515
4 0 18 -0.25 -6.5 13.5 -0.25 -2.515 -13.5 -0.25 -2.515 -18 -0.25 -6.5
4 0 16.5 -0.25 -8 18 -0.25 -6.5 -18 -0.25 -6.5 -16.5 -0.25 -8
1 0 -16.5 -0.25 6.5 0 0 -1.5 0 1 0 1.5 0 0 1-4chrd.dat
1 0 16.5 -0.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 0 -16.5 -0.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 16.5 -0.25 -6.5 0 0 1.5 0 1 0 -1.5 0 0 1-4chrd.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
Edits:
