File Detail parts/6192.dat

Official File parts/6192.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

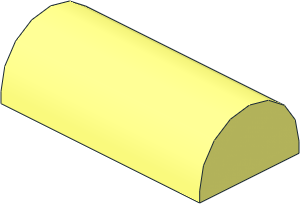

0 Brick  2 x  4 with Curved Top
0 Name: 6192.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 6192b, Rebrickable 6192b

0 !HISTORY 2007-07-16 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4
0 !HISTORY 2014-12-26 [GeraldLasser] BFCd
0 !HISTORY 2015-04-12 [MMR1988] Primitive replacement, rework inside stud area
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04

Show contents

0 BFC INVERTNEXT
1 16 0 24 0 36 0 0 0 -4 0 0 0 16 box4o4a.dat
0 BFC INVERTNEXT
1 16 36 20 0 0 -72 0 0 0 -16 -16 0 0 2-4cylo.dat
1 16 36 20 0 0 1 0 0 0 -16 -16 0 0 2-4chrd.dat
1 16 -36 20 0 0 -1 0 0 0 -16 -16 0 0 2-4chrd.dat

1 16 0 24 0 40 0 0 0 -4 0 0 0 20 box4o4a.dat
1 16 40 20 0 0 -80 0 0 0 -20 -20 0 0 2-4cylo.dat
1 16 40 20 0 0 -1 0 0 0 -20 -20 0 0 2-4chrd.dat
1 16 -40 20 0 0 1 0 0 0 -20 -20 0 0 2-4chrd.dat

4 16 40 24 20 36 24 16 -36 24 16 -40 24 20
4 16 -40 24 20 -36 24 16 -36 24 -16 -40 24 -20
4 16 -40 24 -20 -36 24 -16 36 24 -16 40 24 -20
4 16 40 24 -20 36 24 -16 36 24 16 40 24 20

1 16 20 4 0 1 0 0 0 1 0 0 0 1 s\6192s01.dat
1 16 0 4 0 1 0 0 0 1 0 0 0 1 s\6192s01.dat
1 16 -20 4 0 1 0 0 0 1 0 0 0 1 s\6192s01.dat

1 16 20 6.471886 0 1 0 0 0 -4.3820285 0 0 0 1 stud4a.dat
1 16 0 6.471886 0 1 0 0 0 -4.3820285 0 0 0 1 stud4a.dat
1 16 -20 6.471886 0 1 0 0 0 -4.3820285 0 0 0 1 stud4a.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Roland Melkert [roland]

initially submitted the part.

2014-12-23 18:05:01

Steffen [Steffen]

made the following comment.

2014-12-25 20:55:00

should get BFCed

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2014-12-26 17:45:01

BFCed

Existing certification-votes were deleted.

Philippe Hurbain [Philo]

posted a vote of Certify.

2014-12-26 18:30:00

Steffen [Steffen]

posted a vote of Certify.

2014-12-27 14:40:00

Chris Dee [cwdee]

posted a vote of Admin Review.

2014-12-27 21:40:01

Magnus Forsberg [MagFors]

made the following comment.

2014-12-27 21:50:00

The understuds are not connected to the surface.

Chris Dee [cwdee]

made the following comment.

2014-12-28 09:05:00

It would be good to fix the understuds

Chris Dee [cwdee]

posted a vote of Hold.

2015-03-14 07:55:00

Would anyone be able to connect the understuds?

Max Martin Richter [MMR1988]

made the following comment.

2015-03-14 09:30:00

I'll dive in my collection and will rework this part..

Magnus Forsberg [MagFors]

made the following comment.

2015-03-14 09:45:01

I see a possible new primitive, similar to stud4s.dat or stud4s2.dat.
This part exists in trans plastic.

Max Martin Richter [MMR1988]

made the following comment.

2015-03-14 10:15:00

Yes, I know it's available in transparent and yes I had the same thought for a new primitive but I'm unsure of it's use in many parts...

Magnus Forsberg [MagFors]

made the following comment.

2015-03-14 10:50:00

Maybe if it was made as a 2-4stud4??.dat instead?
I can find four more parts that need, or could use a new primitive.
4744, 6215, 6216 and 30165

1 36 20 -48 -100 1 0 0 0 1 0 0 0 1 30165.dat
1 46 80 -48 -100 -1 0 0 0 1 0 0 0 -1 6192.dat
1 36 -60 -48 -120 0 0 1 0 1 0 -1 0 0 4744.dat
1 46 -20 -48 -100 0 0 1 0 1 0 -1 0 0 6216.dat
1 46 -100 -48 -120 0 0 -1 0 1 0 1 0 0 6215.dat

Max Martin Richter [MMR1988]

submitted a new version of the part.

2015-04-12 09:40:01

I fixed the inside stud area and used some other prims. Please see my comment for the subpart.

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2017-06-25 20:00:00

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2020-05-11 11:25:01

[PTadmin]

edited the part header.

2022-03-06 17:40:01

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2022-03-06 17:40:01

added my history line

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-07-04 13:14:05

As the official part 6192 has significant errors (singular matrices, BFC-NOCERTIFY etc.), this file should be released ASAP.
https://forums.ldraw.org/thread-27552-post-50892.html#pid50892
Improvements can be later anytime.

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2023-07-04 19:58:32

Orion Pobursky [OrionP]

2023-08-25 01:30:53

Release 2023-04
