Official File parts/6231.dat
Part Attributes:
File Header:

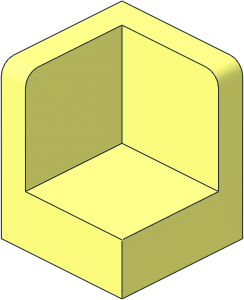

0 Panel 1 x 1 x 1 Corner with Rounded Corners
0 Name: 6231.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2001-10-12 [sparre] bug-fix
0 !HISTORY 2001-11-30 [PTadmin] Official Update 2001-02
0 !HISTORY 2007-10-26 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [mikeheide] BFC'd (2007-08-24)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2011-01-24 [Rolf] Added rounded corners
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
2 24 10 24 10 -10 24 10
2 24 -10 24 10 -10 24 -10
2 24 -10 24 -10 10 24 -10
2 24 10 24 -10 10 24 10
2 24 10 16 6 -6 16 6
2 24 -6 16 6 -6 16 -10
2 24 -6 16 -10 10 16 -10
2 24 10 16 -10 10 16 6
2 24 8 0 10 -10 0 10
2 24 -10 0 10 -10 0 -8
2 24 -6 0 -8 -6 0 6
2 24 -6 0 6 8 0 6
2 24 10 2 6 10 16 6
2 24 -6 0 6 -6 16 6
2 24 -6 2 -10 -6 16 -10
2 24 10 16 -10 10 24 -10
2 24 10 2 10 10 24 10
2 24 -10 0 10 -10 24 10
2 24 -10 2 -10 -10 24 -10
4 16 10 24 10 6 24 6 -6 24 6 -10 24 10
4 16 -10 24 10 -6 24 6 -6 24 -6 -10 24 -10
4 16 -10 24 -10 -6 24 -6 6 24 -6 10 24 -10
4 16 10 24 -10 6 24 -6 6 24 6 10 24 10
0 BFC INVERTNEXT
1 16 0 24 0 6 0 0 0 -4 0 0 0 6 box5.dat
4 16 -6 16 6 -6 16 -10 10 16 -10 10 16 6
4 16 -10 24 -10 10 24 -10 10 16 -10 -6 16 -10
4 16 10 24 -10 10 24 10 10 16 6 10 16 -10
4 16 10 2 6 10 16 6 10 24 10 10 2 10
4 16 -10 24 10 8 2 10 10 2 10 10 24 10
4 16 -10 24 10 -10 0 10 8 0 10 8 2 10
4 16 -10 2 -8 -10 0 -8 -10 0 10 -10 24 10
4 16 -10 24 -10 -10 2 -10 -10 2 -8 -10 24 10
4 16 -6 16 -10 -6 2 -10 -10 2 -10 -10 24 -10
4 16 -6 16 6 -6 2 -8 -6 2 -10 -6 16 -10
4 16 -6 16 6 -6 0 6 -6 0 -8 -6 2 -8
4 16 8 2 6 8 0 6 -6 0 6 -6 16 6
4 16 10 16 6 10 2 6 8 2 6 -6 16 6
4 16 -10 0 10 -6 0 6 8 0 6 8 0 10
4 16 -10 0 10 -10 0 -8 -6 0 -8 -6 0 6
1 16 8 2 6 2 0 0 0 0 -2 0 2 0 1-4disc.dat
1 16 8 2 10 2 0 0 0 0 -2 0 -2 0 1-4disc.dat
1 16 8 2 6 2 0 0 0 0 -2 0 4 0 1-4cylo.dat
1 16 -10 2 -8 0 2 0 0 0 -2 -2 0 0 1-4disc.dat
1 16 -6 2 -8 0 -2 0 -2 0 0 0 0 -2 1-4disc.dat
1 16 -10 2 -8 0 4 0 0 0 -2 -2 0 0 1-4cylo.dat
0 //
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
