Official File parts/6309pug.dat
Part Attributes:
Base Part: 6309.dat
File Header:

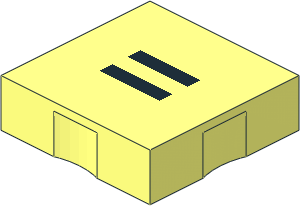

0 Duplo Tile 2 x 2 with Equality Pattern
0 Name: 6309pug.dat
0 Author: Tony Hafner [hafhead]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 6309pb012, Rebrickable 6309pr0072, Set 9531
0 !HISTORY 2004-09-15 [PTadmin] Official Update 2004-03
0 !HISTORY 2007-07-16 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6309s01.dat
0 // Old solid face
0 // 4 16 -40 0 -40 -40 0 40 40 0 40 40 0 -40
0 // Symbol
4 0 -16 0 4 16 0 4 16 0 11 -16 0 11
4 0 -16 0 -11 16 0 -11 16 0 -4 -16 0 -4
0 // Surround
4 16 -16 0 -4 16 0 -4 16 0 4 -16 0 4
4 16 -40 0 -40 -16 0 -4 -16 0 4 -40 0 40
3 16 -16 0 4 -16 0 11 -40 0 40
3 16 -16 0 -11 -16 0 -4 -40 0 -40
4 16 16 0 4 16 0 -4 40 0 -40 40 0 40
3 16 16 0 11 16 0 4 40 0 40
3 16 16 0 -4 16 0 -11 40 0 -40
4 16 -16 0 11 16 0 11 40 0 40 -40 0 40
4 16 16 0 -11 -16 0 -11 -40 0 -40 40 0 -40
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Tony Hafner
Licensed under CC BY 4.0
