Official File parts/64275.dat
Part Attributes:
File Header:

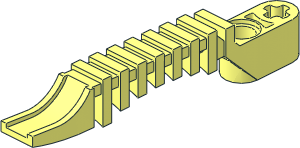

0 Technic Bionicle Thornax Launcher Half 1 x 8
0 Name: 64275.dat
0 Author: Joerg Sommerer [Brickaneer]
0 !LDRAW_ORG Part UPDATE 2012-01
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 !HELP For tensioned part use 64275c01.
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
Show contents
