Official File parts/6538b.dat
Part Attributes:
File Header:

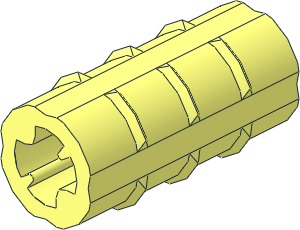

0 Technic Axle Joiner Offset
0 Name: 6538b.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2002-08-18 [PTadmin] Official Update 2002-04
0 !HISTORY 2007-07-16 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-09-13 [mkennedy] Put ridges and center in subparts
0 !HISTORY 2012-01-08 [timgould] Made central divider thinner and recentered
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 .7071 -.7071 0 .7071 .7071 0 0 0 1 s\6538s01.dat
1 16 0 0 -20 1 0 0 0 0 1 0 19.75 0 axl2hole.dat
1 16 0 0 0.25 1 0 0 0 0 1 0 19.75 0 axl2hole.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
0 BFC INVERTNEXT
1 16 0 0 -0.25 3.5 0 0 0 0 -3.5 0 0.5 0 4-4cyli.dat
1 16 0 0 0.25 3.5 0 0 0 0 3.5 0 1 0 4-4edge.dat
1 16 0 0 -0.25 3.5 0 0 0 0 3.5 0 1 0 4-4edge.dat
1 16 0 0 0.25 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 0 0 -0.25 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 0 0 -0.25 .5 0 0 0 0 -.5 0 1 0 4-4ring7.dat
1 16 0 0 0.25 -.5 0 0 0 0 -.5 0 -1 0 4-4ring7.dat
1 16 0 0 -0.25 2 0 0 0 0 -2 0 1 0 4-4ring2.dat
1 16 0 0 0.25 -2 0 0 0 0 -2 0 -1 0 4-4ring2.dat
0
1 16 0 0 -10 .7071 -.7071 0 .7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 -10 .7071 .7071 0 .7071 -.7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 -10 -.7071 -.7071 0 -.7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 -10 -.7071 .7071 0 -.7071 -.7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 -10 -.7071 -.7071 0 .7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 -10 -.7071 .7071 0 .7071 .7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 -10 .7071 -.7071 0 -.7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 -10 .7071 .7071 0 -.7071 .7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 0 .7071 -.7071 0 .7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 0 .7071 .7071 0 .7071 -.7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 0 -.7071 -.7071 0 -.7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 0 -.7071 .7071 0 -.7071 -.7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 0 -.7071 -.7071 0 .7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 0 -.7071 .7071 0 .7071 .7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 0 .7071 -.7071 0 -.7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 0 .7071 .7071 0 -.7071 .7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 10 .7071 -.7071 0 .7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 10 .7071 .7071 0 .7071 -.7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 10 -.7071 -.7071 0 -.7071 .7071 0 0 0 1 s\6538s02.dat
1 16 0 0 10 -.7071 .7071 0 -.7071 -.7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 10 -.7071 -.7071 0 .7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 10 -.7071 .7071 0 .7071 .7071 0 0 0 -1 s\6538s02.dat
1 16 0 0 10 .7071 -.7071 0 -.7071 -.7071 0 0 0 1 s\6538s02.dat
1 16 0 0 10 .7071 .7071 0 -.7071 .7071 0 0 0 -1 s\6538s02.dat
0
1 16 0 0 -20 .7071 -.7071 0 .7071 .7071 0 0 0 1 bush2.dat
1 16 0 0 -20 -.7071 -.7071 0 -.7071 .7071 0 0 0 1 bush2.dat
1 16 0 0 -20 .7071 .7071 0 .7071 -.7071 0 0 0 1 bush2.dat
1 16 0 0 -20 -.7071 .7071 0 -.7071 -.7071 0 0 0 1 bush2.dat
0
1 16 0 0 20 .7071 -.7071 0 .7071 .7071 0 0 0 -1 bush2.dat
1 16 0 0 20 -.7071 -.7071 0 -.7071 .7071 0 0 0 -1 bush2.dat
1 16 0 0 20 .7071 .7071 0 .7071 -.7071 0 0 0 -1 bush2.dat
1 16 0 0 20 -.7071 .7071 0 -.7071 -.7071 0 0 0 -1 bush2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Steve Bliss
Licensed under CC BY 4.0
