Official File parts/65413.dat
Part Attributes:
File Header:

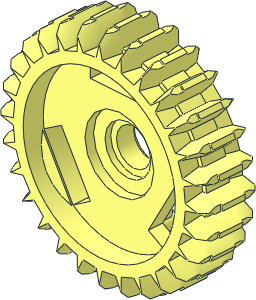

0 Technic Gear 28 Tooth Double Bevel with Peghole
0 Name: 65413.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Differential
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01
0 !HISTORY 2021-06-17 [Sirio] Reworked external ring after updating of tooth primitive
0 !HISTORY 2023-03-05 [OrionP] Official Update 2023-01
