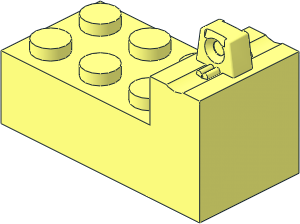

Hinge Brick 2 x 4 Locking with 1 Finger on Top at One End

File Header:

0 Hinge Brick  2 x  4 Locking with  1 Finger on Top at One End
0 Name: 18455.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2016-03-18 [Holly-Wood] File preparation for LDraw Parts Tracker
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03

Show contents

0 // Inner studs
1 16 20 24 0 0 0 -8 0 -20 0 8 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 20 24 0 0 0 -6 0 -20 0 6 0 0 2-4cylo.dat
1 16 20 24 0 0 0 -2 0 -1 0 2 0 0 2-4ring3.dat
2 24 20 4 -8 20 24 -8
2 24 20 4 -6 20 24 -6
2 24 20 4 6 20 24 6
2 24 20 4 8 20 24 8
1 16 -10 4 0 1 0 0 0 -5 0 0 0 1 stug4-1x2.dat

0 // Inner studs small
1 16 24.8787 -12 -5 .8787 0 0 0 36 0 0 0 .7574 box3u4p.dat
1 16 25.7574 6 -5 0 .5666 .5666 -18 0 0 0 -.3787 .3787 box2-7.dat
3 16 26.8906 24 -5 25.7574 24 -5.7574 25.7574 24 -4.2426

1 16 24.8787 -12 5 .8787 0 0 0 36 0 0 0 .7574 box3u4p.dat
1 16 25.7574 6 5 0 .5666 .5666 -18 0 0 0 -.3787 .3787 box2-7.dat
3 16 26.8906 24 5 25.7574 24 4.2426 25.7574 24 5.7574

1 16 35.1213 -12 5 -.8787 0 0 0 36 0 0 0 -.7574 box3u4p.dat
1 16 34.2426 6 5 0 -.5666 -.5666 -18 0 0 0 .3787 -.3787 box2-7.dat
3 16 34.2426 24 -5.7574 33.1094 24 -5 34.2426 24 -4.2426

1 16 35.1213 -12 -5 -.8787 0 0 0 36 0 0 0 -.7574 box3u4p.dat
1 16 34.2426 6 -5 0 -.5666 -.5666 -18 0 0 0 .3787 -.3787 box2-7.dat
3 16 34.2426 24 5.7574 34.2426 24 4.2426 33.1094 24 5

2 24 24 24 -16 24 24 -5.7574
2 24 24 24 -4.2426 24 24 4.2426
2 24 24 24 5.7574 24 24 16
2 24 36 24 -16 36 24 -5.7574
2 24 36 24 -4.2426 36 24 4.2426
2 24 36 24 5.7574 36 24 16

0 // Inner boxes
0 BFC INVERTNEXT
1 16 30 24 0 0 0 -6 0 -36 0 16 0 0 box5-2p.dat
0 BFC INVERTNEXT
1 16 -8 24 0 0 0 -28 0 -20 0 16 0 0 box5-1.dat
2 24 20 24 -16 20 24 -8
2 24 20 24 -6 20 24 6
2 24 20 24 8 20 24 16

0 // Outer boxes
1 16 -10 24 0 0 0 -30 0 -24 0 20 0 0 box4-4a.dat
1 16 20 4.5 0 0 20 0 -19.5 0 0 0 0 -20 box3u7a.dat
1 16 40 -15.5 0 0 -1 0 0 0 -.5 20 0 0 rect3.dat
1 16 20 -8 0 0 1 0 0 0 -8 -20 0 0 rect.dat
4 16 -36 24 16 -36 24 -16 -40 24 -20 -40 24 20
4 16 20 24 20 20 24 16 -36 24 16 -40 24 20
4 16 20 24 -20 -40 24 -20 -36 24 -16 20 24 -16
3 16 20 24 -20 20 24 -16 24 24 -16
4 16 20 24 -8 24 24 -5.7574 24 24 -16 20 24 -16
4 16 20 24 -8 20 24 -6 24 24 -4.2426 24 24 -5.7574
4 16 20 24 -6 20 24 6 24 24 4.2426 24 24 -4.2426
4 16 20 24 8 24 24 5.7574 24 24 4.2426 20 24 6
4 16 20 24 16 24 24 16 24 24 5.7574 20 24 8

3 16 24 24 16 20 24 16 20 24 20
4 16 36 24 16 24 24 16 20 24 20 40 24 20
3 16 40 24 -20 36 24 -16 36 24 -5.7574
3 16 40 24 -20 36 24 -5.7574 36 24 -4.2426
4 16 40 24 20 40 24 -20 36 24 -4.2426 36 24 4.2426
3 16 40 24 20 36 24 4.2426 39.3 -7.3 -3.5
3 16 40 24 20 36 24 4.2426 36 24 5.7574
3 16 40 24 20 36 24 5.7574 36 24 16

4 16 24 24 -16 36 24 -16 40 24 -20 20 24 -20

0 // Clip
1 16 30 -15 0 0 0 -1 0 1 0 1 0 0 clh13.dat

0 // Studs
1 16 -10 0 -10 -1 0 0 0 1 0 0 0 -1 stug-1x3.dat
1 16 -10 0 10 -1 0 0 0 1 0 0 0 -1 stug-1x3.dat
