0 Technic Gearbox 4 x 4 x 1.667
0 Name: 6585.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-18 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Fixed overlaping with stud4a, add missing conditional lines, optimize quads, fixed size underside part 36x16, deleted duplicate line with box4-1 (2004-11-28)
0 !HISTORY 2010-02-14 [Philo] Enlarged U groove to properly receive gear 6589. Rectified.
0 !HISTORY 2010-02-15 [arezey] Split in half, corrected pinhole outer ring
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2021-01-10 [GeraldLasser] Increased Bottom Cut-Out for Gear 6589, Re-Organized Sub-File
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6585s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\6585s01.dat
1 16 0 36 0 -8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 36 0 -1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 0 36 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 24 0 6 0 0 0 12 0 0 0 6 4-4cyli.dat
1 16 30 0 30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 10 0 30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -10 0 30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -30 0 30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 30 0 -30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 10 0 -30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -10 0 -30 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -30 0 -30 1 0 0 0 1 0 0 0 1 stud2.dat
Existing certification-votes were deleted.
Could use 2 stud groups instead of 8 loose studs.
description:

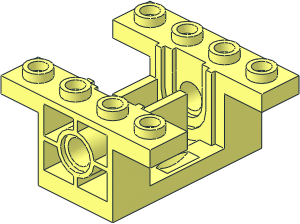

Technic Gearbox 4 x 4 x 1.667
to
Technic Gearbox 4 x 4 x 1.667
This part is copyright © Marc Klein
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Guy Vivan,
Philippe Hurbain,
Santeri Piippo,
Gerald Lasser,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
3 5 -18 33 0 -18 32 8.6831 -18 32 -8.6831
3 5 18 33 0 18 32 -8.6831 18 32 8.6831
This looks a bit odd (in the subfile):
3 10 -8 0 22 -8 10 22 -6 10 22
4 11 6 10 22 8 0 22 -8 0 22 -6 10 22
3 12 6 10 22 8 10 22 8 0 22
More of the middle surfaces could be placed in the subfile, if it was used rotated, instead of mirrored.
