Official File parts/18575.dat
Part Attributes:
File Header:

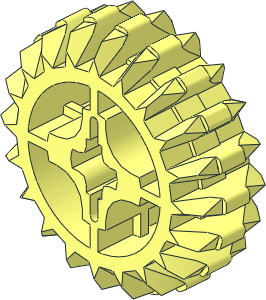

0 Technic Gear 20 Tooth Double Bevel Reinforced
0 Name: 18575.dat
0 Author: Merlijn Wissink [legolijntje]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 32269
0 !HISTORY 2016-06-19 [marckl] Based on 32269 from Marc Klein
0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01
0 !HISTORY 2018-06-06 [Philo] Subparted, minor improvements
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 0 -10 1 0 0 0 0 -1 0 20 0 axlehol5.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\32269s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\32269s02.dat
1 16 0 0 10 1.4167 0 0 0 0 1.4167 0 -1 0 48\4-4ring12.dat
1 16 0 0 -10 1.4167 0 0 0 0 1.4167 0 1 0 48\4-4ring12.dat
1 16 -1 -7.901 0 0 -1 0 0 0 2.0994 10 0 0 rect3.dat
1 16 -1 7.901 0 0 -1 0 0 0 -2.0994 10 0 0 rect3.dat
1 16 1 7.901 0 0 1 0 0 0 -2.0994 10 0 0 rect3.dat
1 16 1 -7.901 0 0 1 0 0 0 2.0994 10 0 0 rect3.dat
4 16 4.4495 -4.4495 10 6.7725 -2.897 10 5.5433 -2.2961 10 4.2428 -4.2427 10
4 16 2.897 -6.7725 10 4.4495 -4.4495 10 4.2428 -4.2427 10 2.2959 -5.5428 10
4 16 2.352 -9.513 10 2.897 -6.7725 10 2.2959 -5.5428 10 1 -5.8011 10
3 16 11.998 -1 10 11 -1 10 9.513 -2.352 10
3 16 1 -11 10 2.352 -9.513 10 1 -5.8016 10
3 16 1 -11 10 1 -11.998 10 2.352 -9.513 10
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\32269s01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\32269s02.dat
0 BFC INVERTNEXT
1 16 0 -10 10 -1 0 0 0 0 -1 0 -20 0 8\2-4cylo.dat
1 16 0 -10 10 -1 0 0 0 0 -1 0 -1 0 8\2-4ndis.dat
1 16 0 -10 -10 -1 0 0 0 0 -1 0 1 0 8\2-4ndis.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32269s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\32269s02.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\32269s01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\32269s02.dat
0 BFC INVERTNEXT
1 16 0 10 10 1 0 0 0 0 1 0 -20 0 8\2-4cylo.dat
1 16 0 10 10 1 0 0 0 0 1 0 -1 0 8\2-4ndis.dat
1 16 0 10 -10 1 0 0 0 0 1 0 1 0 8\2-4ndis.dat
3 16 1 11.998 10 1 11 10 2.352 9.513 10
3 16 11 1 10 11.998 1 10 9.513 2.352 10
4 16 2.897 6.7725 10 2.352 9.513 10 1 5.8011 10 2.2961 5.5433 10
4 16 4.4495 4.4495 10 2.897 6.7725 10 2.2961 5.5433 10 4.2425 4.2426 10
4 16 6.7725 2.897 10 4.4495 4.4495 10 4.2425 4.2426 10 5.5428 2.2959 10
3 16 1 5.8009 10 2.352 9.513 10 1 11 10
3 16 -11.998 1 10 -11 1 10 -9.513 2.352 10
3 16 -1 11 10 -1 11.998 10 -2.352 9.513 10
4 16 -4.4495 4.4495 10 -6.7725 2.897 10 -5.5433 2.2961 10 -4.2428 4.2427 10
4 16 -2.897 6.7725 10 -4.4495 4.4495 10 -4.2428 4.2427 10 -2.2959 5.5428 10
4 16 -2.352 9.513 10 -2.897 6.7725 10 -2.2959 5.5428 10 -1 5.8011 10
3 16 -1 11 10 -2.352 9.513 10 -1 5.8016 10
3 16 -1 -11.998 10 -1 -11 10 -2.352 -9.513 10
3 16 -11 -1 10 -11.998 -1 10 -9.513 -2.352 10
4 16 -2.897 -6.7725 10 -2.352 -9.513 10 -1 -5.8011 10 -2.2961 -5.5433 10
4 16 -4.4495 -4.4495 10 -2.897 -6.7725 10 -2.2961 -5.5433 10 -4.2425 -4.2426 10
4 16 -6.7725 -2.897 10 -4.4495 -4.4495 10 -4.2425 -4.2426 10 -5.5428 -2.2959 10
3 16 -1 -5.8009 10 -2.352 -9.513 10 -1 -11 10
4 16 -1 11 10 1 11 10 1 11.998 10 -1 11.998 10
4 16 -11 -1 10 -11 1 10 -11.998 1 10 -11.998 -1 10
4 16 1 -11 10 -1 -11 10 -1 -11.998 10 1 -11.998 10
4 16 5.5433 -2.2961 -10 6.7725 -2.897 -10 4.4495 -4.4495 -10 4.2427 -4.2428 -10
4 16 4.2427 -4.2428 -10 4.4495 -4.4495 -10 2.897 -6.7725 -10 2.2959 -5.5428 -10
3 16 11 -1 -10 11.998 -1 -10 9.513 -2.352 -10
3 16 1 -11.998 -10 1 -11 -10 2.352 -9.513 -10
4 16 2.2959 -5.5428 -10 2.897 -6.7725 -10 2.352 -9.513 -10 1 -5.8011 -10
3 16 2.352 -9.513 -10 1 -11 -10 1 -5.8016 -10
4 16 2.2961 5.5433 -10 2.897 6.7725 -10 4.4495 4.4495 -10 4.2425 4.2426 -10
4 16 4.2425 4.2426 -10 4.4495 4.4495 -10 6.7725 2.897 -10 5.5428 2.2959 -10
3 16 1 11 -10 1 11.998 -10 2.352 9.513 -10
3 16 11.998 1 -10 11 1 -10 9.513 2.352 -10
4 16 1 5.8011 -10 2.352 9.513 -10 2.897 6.7725 -10 2.2961 5.5433 -10
3 16 2.352 9.513 -10 1 5.8009 -10 1 11 -10
4 16 1 11.998 -10 1 11 -10 -1 11 -10 -1 11.998 -10
4 16 -5.5433 2.2961 -10 -6.7725 2.897 -10 -4.4495 4.4495 -10 -4.2427 4.2428 -10
4 16 -4.2427 4.2428 -10 -4.4495 4.4495 -10 -2.897 6.7725 -10 -2.2959 5.5428 -10
3 16 -11 1 -10 -11.998 1 -10 -9.513 2.352 -10
3 16 -1 11.998 -10 -1 11 -10 -2.352 9.513 -10
4 16 -2.2959 5.5428 -10 -2.897 6.7725 -10 -2.352 9.513 -10 -1 5.8011 -10
3 16 -2.352 9.513 -10 -1 11 -10 -1 5.8016 -10
4 16 -11.998 1 -10 -11 1 -10 -11 -1 -10 -11.998 -1 -10
4 16 -2.2961 -5.5433 -10 -2.897 -6.7725 -10 -4.4495 -4.4495 -10 -4.2425 -4.2426 -10
4 16 -4.2425 -4.2426 -10 -4.4495 -4.4495 -10 -6.7725 -2.897 -10 -5.5428 -2.2959 -10
3 16 -1 -11 -10 -1 -11.998 -10 -2.352 -9.513 -10
3 16 -11.998 -1 -10 -11 -1 -10 -9.513 -2.352 -10
4 16 -1 -5.8011 -10 -2.352 -9.513 -10 -2.897 -6.7725 -10 -2.2961 -5.5433 -10
3 16 -2.352 -9.513 -10 -1 -5.8009 -10 -1 -11 -10
4 16 -1 -11.998 -10 -1 -11 -10 1 -11 -10 1 -11.998 -10
4 16 -6 0 10 -5.5433 2.2961 10 -6.7725 2.897 10 -9.513 2.352 10
4 16 -6.7725 -2.897 10 -5.5433 -2.2961 10 -6 0 10 -9.513 -2.352 10
4 16 -9.513 -2.352 10 -6 0 10 -9.513 2.352 10 -11 1 10
3 16 -11 1 10 -11 -1 10 -9.513 -2.352 10
4 16 6.7725 2.897 10 5.5433 2.2961 10 6 0 10 9.513 2.352 10
4 16 6 0 10 5.5433 -2.2961 10 6.7725 -2.897 10 9.513 -2.352 10
4 16 9.513 2.352 10 6 0 10 9.513 -2.352 10 11 1 10
3 16 11 -1 10 11 1 10 9.513 -2.352 10
4 16 11 1 10 11 -1 10 11.998 -1 10 11.998 1 10
4 16 -6.7725 2.897 -10 -5.5433 2.2961 -10 -6 0 -10 -9.513 2.352 -10
4 16 -6 0 -10 -5.5433 -2.2961 -10 -6.7725 -2.897 -10 -9.513 -2.352 -10
4 16 -9.513 2.352 -10 -6 0 -10 -9.513 -2.352 -10 -11 1 -10
3 16 -11 -1 -10 -11 1 -10 -9.513 -2.352 -10
4 16 6 0 -10 5.5433 2.2961 -10 6.7725 2.897 -10 9.513 2.352 -10
4 16 6.7725 -2.897 -10 5.5433 -2.2961 -10 6 0 -10 9.513 -2.352 -10
4 16 9.513 -2.352 -10 6 0 -10 9.513 2.352 -10 11 1 -10
3 16 11 1 -10 11 -1 -10 9.513 -2.352 -10
4 16 11.998 -1 -10 11 -1 -10 11 1 -10 11.998 1 -10
1 16 -1.5 -5.7018 0 0 0 -0.5 0 -1 0.0998 -10 0 0 rect3.dat
1 16 1.5 -5.7018 0 0 0 0.5 0 -1 0.0998 10 0 0 rect3.dat
1 16 -1.5 5.7018 0 0 0 -0.5 0 1 -0.0998 10 0 0 rect3.dat
1 16 1.5 5.7018 0 0 0 0.5 0 1 -0.0998 -10 0 0 rect3.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Update ring primitives via script. Do not hold.
2024-03-23 00:47:06
2024-03-24 17:24:48
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Merlijn Wissink
Licensed under CC BY 2.0
