File Detail parts/67196k05.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/67196k05.dat

Part Attributes: Base Part: 67196-f1.dat

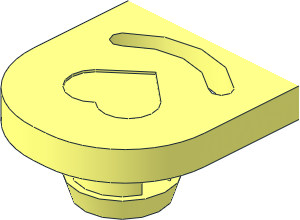

Bracelet 24.5L with 14 x 1 Studs End Segment with Fastener Pin

File Header:

0 Bracelet 24.5L with 14 x  1 Studs End Segment with Fastener Pin
0 Name: 67196k05.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part Flexible_Section UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Sheet Plastic
0 !KEYWORDS Band, Dots, Strap, wrist

0 !HISTORY 2022-05-03 [GeraldLasser] Derieved from Philos 66821k05.dat
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05

Show contents

1 16 -14 2.25 7.25 0 1 0 0 0 2.25 7.75 0 0 rect2p.dat
1 16 14 2.25 7.25 0 -1 0 0 0 -2.25 7.75 0 0 rect2p.dat
1 16 1 0 -.5 13 0 0 0 4.5 0 0 0 -13 48\1-4cylo.dat
1 16 0 2.25 -13.5 -1 0 0 0 0 -2.25 0 1 0 rect2p.dat
1 16 -1 0 -.5 -13 0 0 0 4.5 0 0 0 -13 48\1-4cylo.dat
1 16 1 0 -.5 13 0 0 0 1 0 0 0 -13 48\1-4chrd.dat
1 16 -1 0 -.5 -13 0 0 0 1 0 0 0 -13 48\1-4chrd.dat
1 16 1 4.5 -.5 13 0 0 0 -1 0 0 0 -13 48\1-4chrd.dat
1 16 -1 4.5 -.5 -13 0 0 0 -1 0 0 0 -13 48\1-4chrd.dat

0 BFC INVERTNEXT
1 16 8.1317 0 8.1317 -1.06066 0 1.06066 0 4.5 0 -1.06066 0 -1.06066 8\2-4cylo.dat
1 16 8.1317 0 8.1317 -1.06066 0 1.06066 0 1 0 -1.06066 0 -1.06066 8\2-4ndis.dat
1 16 8.1317 4.5 8.1317 -1.06066 0 1.06066 0 -1 0 -1.06066 0 -1.06066 8\2-4ndis.dat
0 BFC INVERTNEXT
1 16 -8.1317 0 8.1317 -1.06066 0 -1.06066 0 4.5 0 1.06066 0 -1.06066 8\2-4cylo.dat
1 16 -8.1317 0 8.1317 -1.06066 0 -1.06066 0 1 0 1.06066 0 -1.06066 8\2-4ndis.dat
1 16 -8.1317 4.5 8.1317 -1.06066 0 -1.06066 0 -1 0 1.06066 0 -1.06066 8\2-4ndis.dat

1 16 0 0 0 0 0 -10 0 4.5 0 10 0 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -13 0 4.5 0 13 0 0 1-8cylo.dat
1 16 0 0 0 0 0 -10 0 1 0 10 0 0 1-8chrd.dat
1 16 0 0 0 0 0 -13 0 1 0 13 0 0 1-8ndis.dat
4 16 -8.1317 0 6.0104 -10.253 0 8.1317 -14 0 -.5 -6.487 0 2.1
1 16 0 4.5 0 0 0 -10 0 -1 0 10 0 0 1-8chrd.dat
1 16 0 4.5 0 0 0 -13 0 -1 0 13 0 0 1-8ndis.dat
4 16 -14 4.5 -.5 -10.253 4.5 8.1317 -8.1317 4.5 6.0104 1 4.5 -13.5
4 16 -8.1317 4.5 6.0104 -7.071 4.5 7.071 0 4.5 10 1 4.5 -13.5
1 16 0 0 0 0 0 10 0 4.5 0 10 0 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 13 0 4.5 0 13 0 0 1-8cylo.dat
1 16 0 0 0 0 0 10 0 1 0 10 0 0 1-8chrd.dat
1 16 0 0 0 0 0 13 0 1 0 13 0 0 1-8ndis.dat
4 16 14 0 -.5 10.253 0 8.1317 8.1317 0 6.0104 6.487 0 2.1
1 16 0 4.5 0 0 0 10 0 -1 0 10 0 0 1-8chrd.dat
1 16 0 4.5 0 0 0 13 0 -1 0 13 0 0 1-8ndis.dat
4 16 8.1317 4.5 6.0104 10.253 4.5 8.1317 14 4.5 -.5 1 4.5 -13.5
4 16 0 4.5 10 7.071 4.5 7.071 8.1317 4.5 6.0104 1 4.5 -13.5
3 16 0 0 13 13 0 13 14 0 15
4 16 14 0 15 -14 0 15 -13 0 13 0 0 13
4 16 14 4.5 15 0 4.5 13 -13 4.5 13 -14 4.5 15
3 16 13 4.5 13 0 4.5 13 14 4.5 15
1 16 0 11 0 7 0 0 0 1 0 0 0 7 4-4disc.dat
1 16 0 14 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 0 11 0 7 0 0 0 1 0 0 0 7 4-4edge.dat
1 16 0 14 0 6 0 0 0 -1 0 0 0 6 4-4edge.dat
1 16 0 11 0 1 0 0 0 3 0 0 0 1 4-4con6.dat
1 16 0 11 0 0 0 6 0 -6.5 0 -6 0 0 3-16cylo.dat
1 16 0 11 0 0 0 6 0 -6.5 0 6 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 5.5434 7.75 0 0 -3 0 3.25 0 0 0 0 2.2962 box3u2p.dat
1 16 0 11 0 0 0 -6 0 -6.5 0 -6 0 0 3-16cylo.dat
1 16 0 11 0 0 0 -6 0 -6.5 0 6 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 -5.5434 7.75 0 0 3 0 3.25 0 0 0 0 2.2962 box3u2p.dat
3 16 -10.253 4.5 8.1317 -14 4.5 -.5 -13 4.5 13
3 16 -13 4.5 13 -14 4.5 -.5 -14 4.5 15
3 16 -10.253 4.5 8.1317 -13 4.5 13 -9.1924 4.5 9.1924
3 16 10.253 4.5 8.1317 9.1923 4.5 9.1923 13 4.5 13
3 16 10.253 4.5 8.1317 13 4.5 13 14 4.5 -.5
3 16 14 4.5 -.5 13 4.5 13 14 4.5 15
3 16 10.253 0 8.1317 14 0 -.5 13 0 13
3 16 13 0 13 14 0 -.5 14 0 15
3 16 10.253 0 8.1317 13 0 13 9.1923 0 9.1923
3 16 -10.253 0 8.1317 -9.1924 0 9.1924 -13 0 13
3 16 -10.253 0 8.1317 -13 0 13 -14 0 -.5
3 16 -14 0 -.5 -13 0 13 -14 0 15
3 16 1 4.5 -13.5 -1 4.5 -13.5 -14 4.5 -.5

0 BFC INVERTNEXT
1 16 2.687 0 -1.7 0 0 3.8 0 .3 0 -3.8 0 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 2.687 0 -1.7 0 0 -3.8 0 .3 0 -3.8 0 0 1-8cylo.dat
0 BFC INVERTNEXT
1 16 -2.687 0 -1.7 0 0 -3.8 0 .3 0 -3.8 0 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 -2.687 0 -1.7 0 0 3.8 0 .3 0 -3.8 0 0 1-8cylo.dat
1 16 2.687 .3 -1.7 0 0 3.8 0 1 0 -3.8 0 0 3-8chrd.dat
1 16 2.687 .3 -1.7 0 0 -3.8 0 1 0 -3.8 0 0 1-8chrd.dat
1 16 -2.687 .3 -1.7 0 0 -3.8 0 1 0 -3.8 0 0 3-8chrd.dat
1 16 -2.687 .3 -1.7 0 0 3.8 0 1 0 -3.8 0 0 1-8chrd.dat
1 16 2.68699 .15 3.24349 0 1 -2.68699 -.15 0 0 0 0 2.25651 rect3.dat
1 16 -2.68699 .15 3.24349 -2.68699 -1 0 0 0 .15 -2.25651 0 0 rect2p.dat
4 16 0 .3 -4.38698 2.687 .3 -5.5 5.37398 .3 .98698 0 .3 5.5
4 16 0 .3 -4.38698 0 .3 5.5 -5.37398 .3 .98698 -2.687 .3 -5.5
2 24 0 0 -4.38698 0 .3 -4.38698
5 24 -5.37398 .3 .98698 -5.37398 0 .98698 -6.19782 0 -.24574 0 0 5.5
5 24 5.37398 .3 .98698 5.37398 0 .98698 6.19782 0 -.24574 0 0 5.5

1 16 2.687 0 -1.7 0 0 3.8 0 1 0 -3.8 0 0 3-8ndis.dat
1 16 2.687 0 -1.7 0 0 -3.8 0 1 0 -3.8 0 0 1-8tndis.dat
1 16 -2.687 0 -1.7 0 0 -3.8 0 1 0 -3.8 0 0 3-8ndis.dat
1 16 -2.687 0 -1.7 0 0 3.8 0 1 0 -3.8 0 0 1-8tndis.dat
4 16 0 0 5.5 0 0 10 -7.07104 0 7.07104 -5.37398 0 .98698
4 16 -8.1317 0 6.01038 -6.487 0 2.1 -5.37398 0 .98698 -7.07104 0 7.07104
4 16 7.071 0 7.071 0 0 10 0 0 5.5 5.37398 0 .98698
4 16 5.37398 0 .98698 6.487 0 2.1 8.1317 0 6.01038 7.071 0 7.071
3 16 14 0 -.5 6.487 0 2.1 6.487 0 -1.7
3 16 14 0 -.5 6.487 0 -1.7 6.487 0 -5.5
3 16 14 0 -.5 6.487 0 -5.5 1 0 -13.5
3 16 -6.487 0 2.1 -14 0 -.5 -6.487 0 -1.7
3 16 -6.487 0 -1.7 -14 0 -.5 -6.487 0 -5.5
3 16 -6.487 0 -5.5 -14 0 -.5 -1 0 -13.5
3 16 -2.687 0 -5.5 -6.487 0 -5.5 -1 0 -13.5
4 16 1 0 -13.5 0 0 -5.5 -2.687 0 -5.5 -1 0 -13.5
3 16 0 0 -5.5 1 0 -13.5 2.687 0 -5.5
3 16 2.687 0 -5.5 1 0 -13.5 6.487 0 -5.5
