Official File parts/68568.dat
Part Attributes:
File Header:

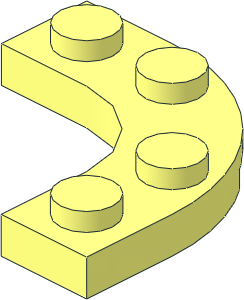

0 Plate 3 x 3 with 2 x 2 Corner Round and 2 x 2 with 1 x 1 Corner Round Cutout
0 Name: 68568.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS banana, curved, macaroni
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
0 BFC INVERTNEXT
1 16 10 0 10 0 0 20 0 8 0 20 0 0 1-4cylo.dat
1 16 10 8 10 0 0 20 0 -1 0 20 0 0 1-4tang.dat
1 16 10 0 10 0 0 40 0 8 0 40 0 0 48\1-12cylo.dat
3 16 30 8 44.64 33.4794 4 42.3182 33.4794 8 42.3182
4 16 30 8 44.64 30 0 44.64 33.4794 0 42.3182 33.4794 4 42.3182
4 16 33.4794 4 42.3182 33.4794 0 42.3182 34.3501 0 41.7329 34.3501 4 41.7329
1 16 10 0 10 31.73413 0 -24.35046 0 4 0 24.35046 0 31.73413 48\1-24cylo.dat
4 16 41.7341 4 34.3505 41.7341 0 34.3505 42.3182 0 33.4794 42.3182 4 33.4794
4 16 44.64 0 30 44.64 8 30 42.3182 4 33.4794 42.3182 0 33.4794
3 16 44.64 8 30 42.3182 8 33.4794 42.3182 4 33.4794
1 16 10 0 10 40 0 0 0 8 0 0 0 40 48\1-12cylo.dat
1 16 0 8 40 0 0 -10 0 -8 0 -10 0 0 box4-4a.dat
1 16 40 8 0 -10 0 0 0 -8 0 0 0 -10 box4-4a.dat
0 // top
1 16 10 0 10 20 0 0 0 1 0 0 0 20 1-4ring1.dat
1 16 10 0 10 40 0 0 0 1 0 0 0 40 48\1-4aring.dat
0 // bottom
4 16 50 8 -10 46 8 -6 46 8 20 50 8 10
4 16 30 8 -10 30 8 10 33.2043 8 14 33.2044 8 -6
4 16 50 8 10 46 8 20 48.636 8 20.352 49.656 8 15.22
4 16 46.956 8 25.308 48.636 8 20.352 46 8 20 46 8 26
3 16 44.64 8 30 46.956 8 25.308 46 8 26
4 16 42.3182 8 33.4794 44.64 8 30 40.5087 8 29 39.4402 8 30.6014
1 16 40.8792 6 32.0404 0 0 1.43904 2 0 0 0 -1 1.43904 rect.dat
3 16 39.4402 4 30.6014 41.7342 4 34.3504 42.3182 4 33.4794
4 16 40 8 26 40.5087 8 29 44.64 8 30 46 8 26
4 16 40 8 26 27.6191 8 26 29 8 29 40.5087 8 29
4 16 24.142 8 24.142 27.6191 8 26 30.6259 8 21.5 26.956 8 21.33
4 16 26.956 8 21.33 30.6259 8 21.5 32.3092 8 18.5 28.478 8 17.654
4 16 33.2044 8 14 30 8 13.978 28.478 8 17.654 32.3092 8 18.5
4 16 34 8 21.5 34 8 18.5 32.3092 8 18.5 30.6259 8 21.5
3 16 33.2044 8 14 30 8 10 30 8 13.978
4 16 33.2044 8 -6 46 8 -6 50 8 -10 30 8 -10
1 16 40 8 20 6 0 0 0 -1 0 0 0 6 1-4ndis.dat
1 16 10 4 10 24.35046 0 31.73413 0 -1 0 31.73413 0 -24.35046 48\1-24chrd.dat
4 16 24.142 8 24.142 26 8 27.6191 29 8 29 27.6191 8 26
4 16 20.352 8 48.636 20 8 46 10 8 50 15.22 8 49.656
4 16 -10 8 30 -6 8 33.2044 14 8 33.2043 10 8 30
4 16 -10 8 50 10 8 50 20 8 46 -6 8 46
4 16 26 8 46 20 8 46 20.352 8 48.636 25.308 8 46.956
3 16 26 8 46 25.308 8 46.956 30 8 44.64
4 16 30.6014 8 39.4402 29 8 40.5087 30 8 44.64 33.4794 8 42.3182
1 16 32.0404 6 40.8792 0 -1 1.43904 2 0 0 0 0 1.43904 rect.dat
3 16 33.4794 4 42.3182 34.3502 4 41.7329 30.6014 4 39.4402
4 16 26 8 46 30 8 44.64 29 8 40.5087 26 8 40
4 16 29 8 40.5087 29 8 29 26 8 27.6191 26 8 40
4 16 24.142 8 24.142 21.33 8 26.956 21.5 8 30.6259 26 8 27.6191
4 16 18.5 8 32.3092 21.5 8 30.6259 21.33 8 26.956 17.654 8 28.478
4 16 21.5 8 30.6259 18.5 8 32.3092 18.5 8 34 21.5 8 34
4 16 17.654 8 28.478 13.978 8 30 14 8 33.2044 18.5 8 32.3092
3 16 13.978 8 30 10 8 30 14 8 33.2044
4 16 -10 8 30 -10 8 50 -6 8 46 -6 8 33.2044
1 16 20 8 40 0 0 6 0 -1 0 6 0 0 1-4ndis.dat
0 // underside - inside
0 BFC INVERTNEXT
1 16 39.6022 6 7 0 0 6.39782 2 0 0 0 -13 0 box2-7.dat
0 BFC INVERTNEXT
1 16 33.6022 6 16.25 0 -0.44755 -0.84538 2 0 0 0 2.25 0 box2-7.dat
1 16 32.3129 6 20 0 0 1.68706 2 0 0 0 1.5 0 box2-7.dat
0 BFC INVERTNEXT
1 16 35.3129 6 23.75 0 -1.5034 -6.19046 2 0 0 0 2.25 0 box2-7.dat
0 BFC INVERTNEXT
1 16 40 4 20 6 0 0 0 4 0 0 0 6 1-4cylo.dat
1 16 40 4 20 6 0 0 0 -1 0 0 0 6 1-4chrd.dat
2 24 34 8 18.5 34 4 18.5
5 24 33.2043 8 14 33.2043 4 14 32.3092 4 18.5 33.2044 4 -6
1 16 33.2044 6 4 0 -1 0 -2 0 0 0 0 -10 rect3.dat
0 BFC INVERTNEXT
1 16 7 6 39.6022 0 -13 0 2 0 0 0 0 6.39782 box2-7.dat
0 BFC INVERTNEXT
1 16 16.25 6 33.6022 0 2.25 0 2 0 0 0 -0.44755 -0.84538 box2-7.dat
1 16 20 6 32.3129 0 1.5 0 2 0 0 0 0 1.68706 box2-7.dat
0 BFC INVERTNEXT
1 16 23.75 6 35.3129 0 2.25 0 2 0 0 0 -1.5034 -6.19046 box2-7.dat
0 BFC INVERTNEXT
1 16 20 4 40 0 0 6 0 4 0 6 0 0 1-4cylo.dat
1 16 20 4 40 0 0 6 0 -1 0 6 0 0 1-4chrd.dat
5 24 14 8 33.2043 14 4 33.2043 18.5 8 32.3092 -6 8 33.2044
2 24 18.5 4 34 18.5 8 34
1 16 4 6 33.2044 0 0 -10 2 0 0 0 -1 0 rect3.dat
1 16 39.97445 6 29.8007 -0.53425 1 0 0 0 2 0.8007 0 0 rect2p.dat
1 16 29.8007 6 39.97445 -0.8007 0 0 0 0 2 0.53425 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 34.7544 6 34.7544 0 0 -5.75437 2 0 0 0 -5.75437 0 box2-5.dat
0 // underside - top
4 16 46 4 -6 33.2044 4 14 32.3092 4 18.5 34 4 18.5
3 16 46 4 20 46 4 -6 34 4 18.5
4 16 46 4 20 34 4 18.5 34 4 21.5 40 4 26
4 16 40 4 26 34 4 21.5 30.6259 4 21.5 27.6191 4 26
3 16 46 4 -6 33.2044 4 -6 33.2043 4 14
4 16 18.5 4 34 18.5 4 32.3092 14 4 33.2044 -6 4 46
3 16 20 4 46 18.5 4 34 -6 4 46
4 16 26 4 40 21.5 4 34 18.5 4 34 20 4 46
4 16 26 4 27.6191 21.5 4 30.6259 21.5 4 34 26 4 40
3 16 14 4 33.2043 -6 4 33.2044 -6 4 46
4 16 39.4402 4 30.6014 40.5087 4 29 29 4 29 30.6014 4 39.4402
3 16 29 4 29 29 4 40.5087 30.6014 4 39.4402
4 16 39.4402 4 30.6014 30.6014 4 39.4402 34.3501 4 41.7329 41.7329 4 34.3501
2 24 30.6259 4 21.5 30.6259 8 21.5
2 24 21.5 4 30.6259 21.5 8 30.6259
2 24 30 0 44.64 34.352 0 41.736
2 24 41.7341 0 34.3505 44.64 0 30
2 24 33.4794 4 42.3182 34.352 4 41.736
2 24 41.7341 4 34.3505 42.3182 4 33.4794
2 24 30 8 44.64 33.4794 8 42.3182
2 24 42.3182 8 33.4794 44.64 8 30
5 24 30 8 44.64 30 0 44.64 25.308 8 46.956 34.352 8 41.736
5 24 34.352 4 41.736 34.352 0 41.736 30 8 44.64 38.284 4 38.284
5 24 41.736 4 34.352 41.736 0 34.352 38.284 4 38.284 44.64 8 30
5 24 44.64 8 30 44.64 0 30 41.736 8 34.352 46.956 8 25.308
0 // studs
1 16 10 0 40 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 40 0 10 1 0 0 0 1 0 0 0 1 stug-2x1.dat
1 16 10 4 40 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 40 4 10 1 0 0 0 -1 0 0 0 1 stud3.dat
