Official File parts/69819.dat
Part Attributes:
File Header:

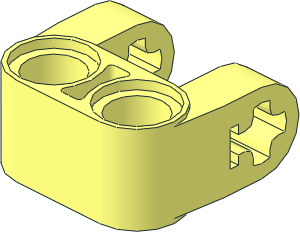

0 Technic Cross Block 2 x 2 Split Reinforced (Axle/Twin Pin)
0 Name: 69819.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
1 16 -10 9 -20 0 0 -9 0 1 0 9 0 0 2-4cyli.dat
1 16 -10 9 -20 0 0 -9 0 1 0 9 0 0 1-4edge.dat
1 16 -10 0 0 0 -10 0 9 0 0 0 0 9 2-4cyli.dat
1 16 -10 0 0 0 1 0 9 0 0 0 0 9 2-4edge.dat
1 16 -20 0 0 0 1 0 9 0 0 0 0 9 2-4edge.dat
1 16 -10 0 0 0 -10 0 -1 0 0 0 0 -1 axlehol4.dat
1 16 -10 0 0 0 -1 0 3 0 0 0 0 3 2-4ring2.dat
1 16 -20 0 0 0 1 0 3 0 0 0 0 3 2-4ring2.dat
0 BFC INVERTNEXT
1 16 -15 0 -5.58 5 0 0 0 0 4 0 -2 0 box3u2p.dat
3 16 -10 -6 0 -10 -6 -5.58 -10 -5.54 -2.3
3 16 -10 -5.54 -2.3 -10 -6 -5.58 -10 -4.24 -4.24
3 16 -10 -4.24 -4.24 -10 -6 -5.58 -10 -2.3 -5.54
3 16 -10 -2.3 -5.54 -10 -6 -5.58 -10 -2 -5.58
3 16 -10 2.3 -5.54 -10 6 -5.58 -10 4.24 -4.24
3 16 -10 6 -5.58 -10 2.3 -5.54 -10 2 -5.58
3 16 -10 4.24 -4.24 -10 6 -5.58 -10 5.54 -2.3
3 16 -10 6 0 -10 5.54 -2.3 -10 6 -5.58
3 16 -20 -6 -5.58 -20 -6 0 -20 -5.54 -2.3
3 16 -20 -6 -5.58 -20 -5.54 -2.3 -20 -4.24 -4.24
3 16 -20 -6 -5.58 -20 -4.24 -4.24 -20 -2.3 -5.54
3 16 -20 -2.3 -5.54 -20 -2 -5.58 -20 -6 -5.58
3 16 -20 6 -5.58 -20 2.3 -5.54 -20 4.24 -4.24
3 16 -20 2 -5.58 -20 2.3 -5.54 -20 6 -5.58
3 16 -20 6 -5.58 -20 4.24 -4.24 -20 5.54 -2.3
3 16 -20 6 -5.58 -20 5.54 -2.3 -20 6 0
4 16 -10 -9 -11 -10 9 -11 -10 6 -7.58 -10 -6 -7.58
4 16 -10 -9 -11 -10 -6 -7.58 -10 -6 0 -10 -9 0
4 16 -10 6 -7.58 -10 9 -11 -10 9 0 -10 6 0
4 16 -20 -6 -5.58 -20 -4 -5.58 -20 -4 -7.58 -20 -6 -7.58
1 16 -15 -3 -5.58 5 0 0 0 0 1 0 1 0 rect3.dat
1 16 -15 3 -5.58 -5 0 0 0 0 -1 0 1 0 rect3.dat
4 16 -20 4 -5.58 -20 6 -5.58 -20 6 -7.58 -20 4 -7.58
4 16 -10 -4 -5.58 -10 -6 -5.58 -10 -6 -7.58 -10 -4 -7.58
4 16 -10 6 -5.58 -10 4 -5.58 -10 4 -7.58 -10 6 -7.58
2 24 -10 -9 -11 -10 -9 0
2 24 -10 9 -11 -10 9 0
1 16 -10 10 -20 0 0 -9 0 1 0 9 0 0 2-4edge.dat
1 16 -10 -9 -20 0 0 -9 0 -1 0 9 0 0 2-4cyli.dat
1 16 -10 -9 -20 0 0 -9 0 -1 0 9 0 0 1-4edge.dat
1 16 -10 -10 -20 0 0 -9 0 -1 0 9 0 0 2-4edge.dat
3 16 -10 9 -11 -16.3639 9 -13.6361 -20 9 -9
3 16 -20 9 -9 -16.3639 9 -13.6361 -19 9 -20
2 24 -20 9 -9 -20 9 0
2 24 -19 9 -20 -20 9 -9
4 16 -10 9 -11 -20 9 -9 -20 9 0 -10 9 0
3 16 -16.3639 -9 -13.6361 -10 -9 -11 -20 -9 -9
3 16 -16.3639 -9 -13.6361 -20 -9 -9 -19 -9 -20
2 24 -20 -9 -9 -20 -9 0
2 24 -19 -9 -20 -20 -9 -9
4 16 -20 -9 0 -20 -9 -9 -10 -9 -11 -10 -9 0
4 16 -20 6 -7.58 -20 9 -9 -20 -9 -9 -20 -6 -7.58
4 16 -20 9 -9 -20 6 -7.58 -20 6 0 -20 9 0
4 16 -20 -6 -7.58 -20 -9 -9 -20 -9 0 -20 -6 0
4 16 -20 -9 -9 -20 9 -9 -19 9 -20 -19 -9 -20
5 24 -20 -9 -9 -20 9 -9 -20 9 0 -19 9 -20
1 16 -10 -9 -20 0 0 -9 0 18 0 -9 0 0 1-4cyli.dat
1 16 10 0 -20 -1 0 0 0 1 0 0 0 1 connhole.dat
1 16 10 9 -20 0 0 9 0 1 0 9 0 0 2-4cyli.dat
1 16 10 9 -20 0 0 9 0 1 0 9 0 0 1-4edge.dat
1 16 10 0 0 0 10 0 9 0 0 0 0 9 2-4cyli.dat
1 16 10 0 0 0 -1 0 9 0 0 0 0 9 2-4edge.dat
1 16 20 0 0 0 -1 0 9 0 0 0 0 9 2-4edge.dat
1 16 10 0 0 0 10 0 -1 0 0 0 0 -1 axlehol4.dat
1 16 10 0 0 0 1 0 3 0 0 0 0 3 2-4ring2.dat
1 16 20 0 0 0 -1 0 3 0 0 0 0 3 2-4ring2.dat
0 BFC INVERTNEXT
1 16 15 0 -5.58 -5 0 0 0 0 4 0 -2 0 box3u2p.dat
3 16 10 -6 -5.58 10 -6 0 10 -5.54 -2.3
3 16 10 -6 -5.58 10 -5.54 -2.3 10 -4.24 -4.24
3 16 10 -6 -5.58 10 -4.24 -4.24 10 -2.3 -5.54
3 16 10 -6 -5.58 10 -2.3 -5.54 10 -2 -5.58
3 16 10 6 -5.58 10 2.3 -5.54 10 4.24 -4.24
3 16 10 2.3 -5.54 10 6 -5.58 10 2 -5.58
3 16 10 6 -5.58 10 4.24 -4.24 10 5.54 -2.3
3 16 10 5.54 -2.3 10 6 0 10 6 -5.58
3 16 20 -6 0 20 -6 -5.58 20 -5.54 -2.3
3 16 20 -5.54 -2.3 20 -6 -5.58 20 -4.24 -4.24
3 16 20 -4.24 -4.24 20 -6 -5.58 20 -2.3 -5.54
3 16 20 -2 -5.58 20 -2.3 -5.54 20 -6 -5.58
3 16 20 2.3 -5.54 20 6 -5.58 20 4.24 -4.24
3 16 20 2.3 -5.54 20 2 -5.58 20 6 -5.58
3 16 20 4.24 -4.24 20 6 -5.58 20 5.54 -2.3
3 16 20 5.54 -2.3 20 6 -5.58 20 6 0
4 16 10 6 -7.58 10 9 -11 10 -9 -11 10 -6 -7.58
4 16 10 -6 0 10 -6 -7.58 10 -9 -11 10 -9 0
4 16 10 9 0 10 9 -11 10 6 -7.58 10 6 0
4 16 20 -4 -7.58 20 -4 -5.58 20 -6 -5.58 20 -6 -7.58
1 16 15 -3 -5.58 -5 0 0 0 0 1 0 1 0 rect3.dat
1 16 15 3 -5.58 5 0 0 0 0 -1 0 1 0 rect3.dat
4 16 20 6 -7.58 20 6 -5.58 20 4 -5.58 20 4 -7.58
4 16 10 -6 -7.58 10 -6 -5.58 10 -4 -5.58 10 -4 -7.58
4 16 10 4 -7.58 10 4 -5.58 10 6 -5.58 10 6 -7.58
2 24 10 -9 -11 10 -9 0
2 24 10 9 -11 10 9 0
1 16 10 10 -20 0 0 9 0 1 0 9 0 0 2-4edge.dat
1 16 10 -9 -20 0 0 9 0 -1 0 9 0 0 2-4cyli.dat
1 16 10 -9 -20 0 0 9 0 -1 0 9 0 0 1-4edge.dat
1 16 10 -10 -20 0 0 9 0 -1 0 9 0 0 2-4edge.dat
3 16 16.3639 9 -13.6361 10 9 -11 20 9 -9
3 16 16.3639 9 -13.6361 20 9 -9 19 9 -20
2 24 20 9 -9 20 9 0
2 24 19 9 -20 20 9 -9
4 16 20 9 0 20 9 -9 10 9 -11 10 9 0
3 16 10 -9 -11 16.3639 -9 -13.6361 20 -9 -9
3 16 20 -9 -9 16.3639 -9 -13.6361 19 -9 -20
2 24 20 -9 -9 20 -9 0
2 24 19 -9 -20 20 -9 -9
4 16 10 -9 -11 20 -9 -9 20 -9 0 10 -9 0
4 16 20 -9 -9 20 9 -9 20 6 -7.58 20 -6 -7.58
4 16 20 6 0 20 6 -7.58 20 9 -9 20 9 0
4 16 20 -9 0 20 -9 -9 20 -6 -7.58 20 -6 0
4 16 19 9 -20 20 9 -9 20 -9 -9 19 -9 -20
5 24 20 -9 -9 20 9 -9 20 9 0 19 9 -20
1 16 10 -9 -20 0 0 9 0 18 0 -9 0 0 1-4cyli.dat
1 16 -10 0 -20 0 0 1 0 1 0 -1 0 0 beamhole.dat
1 16 0 9.5 -11 0 0 -10 0.5 0 0 0 -1 0 rect1.dat
1 16 0 -9.5 -11 0 0 10 -0.5 0 0 0 -1 0 rect1.dat
1 16 0 0 -11 0 0 -10 9 0 0 0 -1 0 rect2p.dat
1 16 0 9.5 -29 0 0 10 0.5 0 0 0 1 0 rect1.dat
1 16 0 -9.5 -29 0 0 -10 -0.5 0 0 0 1 0 rect1.dat
4 16 10 9 -29 10 -9 -29 -10 -9 -29 -10 9 -29
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
