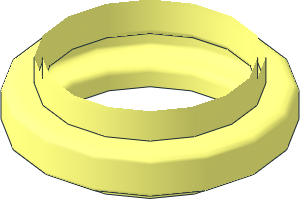

0 ~Technic Ribbed Hose End Segment
0 Name: 71944k01.dat
0 Author: William Howard [WilliamH]
0 !LDRAW_ORG Part Flexible_Section UPDATE 2024-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 !HELP To model a Ribbed Technic Hose, see the example of 71944.dat
0 !HELP For a hose with N ribs, you need a 71944k01.dat subpart,
0 !HELP (N-2) 71944k02.dat subparts and a final 71944k01.dat subpart.
0 !HELP The distance between each 71944k01-71944k02 or 71944k02-71944k02
0 !HELP subparts is 6.25 LDU
0 !HELP For a hose with an odd number of ribs, the middle rib should be at x=0
0 !HELP with other subparts at +/- 6.25, 12.5, 18.75, 25, 31.25 etc
0 !HELP For a hose with an even number of ribs, the middle two ribs should be at
0 !HELP x=+/-3.125 with other subparts at +/- 9.375, 15.625, 21.875, 28.125 etc
0 !HELP The rotation matrix to use for each subpart is (0 1 0 1 0 0 0 0 1),
0 !HELP except the left hand 71944k01.dat, for which it is (0 -1 0 1 0 0 0 0 1)
0 !HELP The subparts will overlap slightly, this is to allow for creating curved
0 !HELP hoses
0 BFC CERTIFY CCW
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2020-03-11 [Philo] Corrected internal tube diameter, Refactored to minimize surface number.
0 !HISTORY 2020-04-03 [PTadmin] Renamed from 79
0 !HISTORY 2020-07-12 [MagFors] Adapted help info to real usage
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\71944s01.dat
1 16 0 2.5 0 7 0 0 0 1 0 0 0 7 4-4edge.dat
1 16 0 2.5 0 6.5 0 0 0 1 0 0 0 6.5 4-4edge.dat
1 16 0 2.5 0 0.5 0 0 0 -1 0 0 0 0.5 4-4ring13.dat
1 16 0 -1.5 0 7 0 0 0 -1.8 0 0 0 7 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -1.5 0 6.5 0 0 0 -1.8 0 0 0 6.5 4-4cyli.dat
1 16 0 1.5 0 7 0 0 0 1 0 0 0 7 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 1.5 0 6.5 0 0 0 1 0 0 0 6.5 4-4cyli.dat
This part is copyright © William Howard
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Philippe Hurbain,
Magnus Forsberg,
Orion Pobursky,
