Official File parts/18653.dat
Part Attributes:
File Header:

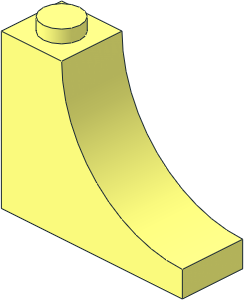

0 Arch 1 x 3 x 2 Inverted
0 Name: 18653.dat
0 Author: Rolf Osterthun [Rolf]
0 !LDRAW_ORG Part UPDATE 2015-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
Show contents
1 16 5 4 5.5 0 0 -1.5 0 44 0 0.5 0 0 box3u6.dat
3 16 6.5 48 5 5 48 3.5 3.5 48 5
1 16 5 26 5 0 0.75 -0.75 22 0 0 0 -0.75 -0.75 box2-5.dat
1 16 5 4 -5.5 0 0 1.5 0 44 0 -0.5 0 0 box3u6.dat
3 16 3.5 48 -5 5 48 -3.5 6.5 48 -5
1 16 5 26 -5 0 -0.75 0.75 22 0 0 0 0.75 0.75 box2-5.dat
1 16 15 27 5.5 0 0 -1.5 0 21 0 0.5 0 0 box3u6.dat
3 16 16.5 48 5 15 48 3.5 13.5 48 5
1 16 15 37.5 5 0 0.75 -0.75 10.5 0 0 0 -0.75 -0.75 box2-5.dat
1 16 15 27 -5.5 0 0 1.5 0 21 0 -0.5 0 0 box3u6.dat
3 16 13.5 48 -5 15 48 -3.5 16.5 48 -5
1 16 15 37.5 -5 0 -0.75 0.75 10.5 0 0 0 0.75 0.75 box2-5.dat
1 16 25 36 5.5 0 0 -1.5 0 12 0 0.5 0 0 box3u6.dat
3 16 26.5 48 5 25 48 3.5 23.5 48 5
1 16 25 42 5 0 0.75 -0.75 6 0 0 0 -0.75 -0.75 box2-5.dat
1 16 25 36 -5.5 0 0 1.5 0 12 0 -0.5 0 0 box3u6.dat
3 16 23.5 48 -5 25 48 -3.5 26.5 48 -5
1 16 25 42 -5 0 -0.75 0.75 6 0 0 0 0.75 0.75 box2-5.dat
1 16 35 41 5.5 0 0 -1.5 0 7 0 0.5 0 0 box3u6.dat
3 16 36.5 48 5 35 48 3.5 33.5 48 5
1 16 35 44.5 5 0 0.75 -0.75 3.5 0 0 0 -0.75 -0.75 box2-5.dat
1 16 35 41 -5.5 0 0 1.5 0 7 0 -0.5 0 0 box3u6.dat
3 16 33.5 48 -5 35 48 -3.5 36.5 48 -5
1 16 35 44.5 -5 0 -0.75 0.75 3.5 0 0 0 0.75 0.75 box2-5.dat
4 16 -10 48 -10 -6 48 -6 46 48 -6 50 48 -10
4 16 50 48 -10 46 48 -6 46 48 6 50 48 10
4 16 50 48 10 46 48 6 -6 48 6 -10 48 10
4 16 -10 48 10 -6 48 6 -6 48 -6 -10 48 -10
0 BFC INVERTNEXT
1 16 0 26 0 0 -6 0 0 0 -22 6 0 0 box2-5.dat
1 16 46 4 -6 0 0 -40 40 0 0 0 -1 0 48\1-4ndis.dat
1 16 46 4 6 -40 0 0 0 0 40 0 1 0 48\1-4ndis.dat
1 16 46 4 6 0 0 -40 40 0 0 0 -12 0 48\1-4cylo.dat
4 16 -6 48 6 6 44 6 6 4 6 -6 4 6
4 16 6 44 6 -6 48 6 46 48 6 46 44 6
4 16 -6 4 -6 6 4 -6 6 44 -6 -6 48 -6
4 16 46 44 -6 46 48 -6 -6 48 -6 6 44 -6
1 16 46 46 0 0 1 0 0 0 2 6 0 0 rect.dat
2 24 -6 48 6 3.5 48 6
2 24 6.5 48 6 13.5 48 6
2 24 16.5 48 6 23.5 48 6
2 24 26.5 48 6 33.5 48 6
2 24 36.5 48 6 46 48 6
2 24 -6 48 -6 3.5 48 -6
2 24 6.5 48 -6 13.5 48 -6
2 24 16.5 48 -6 23.5 48 -6
2 24 26.5 48 -6 33.5 48 -6
2 24 36.5 48 -6 46 48 -6
2 24 6.5 10.005 5 6.5 10.005 6
2 24 6.344 9.22 4.844 6.5 10.005 5
2 24 6 4 4.5 6.344 9.22 4.844
2 24 6.5 10.005 -6 6.5 10.005 -5
2 24 6 4 -4.5 6.344 9.22 -4.844
2 24 6.344 9.22 -4.844 6.5 10.005 -5
2 24 13.5 27.207 5 13.5 27.207 6
2 24 16.5 30.899 5 16.5 30.899 6
2 24 15 29.19 3.5 16.5 30.899 5
2 24 14.264 28.352 4.236 15 29.19 3.5
2 24 13.5 27.207 5 14.264 28.352 4.236
2 24 16.5 30.899 -6 16.5 30.899 -5
2 24 13.5 27.207 -6 13.5 27.207 -5
2 24 13.5 27.207 -5 14.264 28.352 -4.236
2 24 14.264 28.352 -4.236 15 29.19 -3.5
2 24 15 29.19 -3.5 16.5 30.899 -5
2 24 23.5 36.972 5 23.5 36.972 6
2 24 26.5 38.887 5 26.5 38.887 6
2 24 26 38.64 4.5 26.5 38.887 5
2 24 25 37.973 3.5 26 38.64 4.5
2 24 23.5 36.972 5 25 37.973 3.5
2 24 26.5 38.887 -6 26.5 38.887 -5
2 24 23.5 36.972 -6 23.5 36.972 -5
2 24 23.5 36.972 -5 25 37.973 -3.5
2 24 26 38.64 -4.5 26.5 38.887 -5
2 24 25 37.973 -3.5 26 38.64 -4.5
2 24 33.5 41.908 5 33.5 41.908 6
2 24 36.5 42.805 5 36.5 42.805 6
2 24 35.648 42.636 4.148 36.5 42.805 5
2 24 35 42.416 3.5 35.648 42.636 4.148
2 24 33.5 41.908 5 35 42.416 3.5
2 24 36.5 42.805 -6 36.5 42.805 -5
2 24 33.5 41.908 -6 33.5 41.908 -5
2 24 33.5 41.908 -5 35 42.416 -3.5
2 24 35.648 42.636 -4.148 36.5 42.805 -5
2 24 35 42.416 -3.5 35.648 42.636 -4.148
1 16 0 24 0 0 -10 0 0 0 -24 10 0 0 box2-5.dat
1 16 50 0 10 0 0 -40 40 0 0 0 -1 0 48\1-4ndis.dat
1 16 50 0 -10 -40 0 0 0 0 40 0 1 0 48\1-4ndis.dat
0 BFC INVERTNEXT
1 16 50 0 10 0 0 -40 40 0 0 0 -20 0 48\1-4cylo.dat
4 16 -10 0 10 10 0 10 10 40 10 -10 48 10
4 16 50 40 10 50 48 10 -10 48 10 10 40 10
4 16 -10 48 -10 10 40 -10 10 0 -10 -10 0 -10
4 16 10 40 -10 -10 48 -10 50 48 -10 50 40 -10
1 16 50 44 0 0 -1 0 0 0 4 -10 0 0 rect.dat
2 24 -10 48 10 50 48 10
2 24 -10 48 -10 50 48 -10
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 stud.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Rolf Osterthun
Licensed under CC BY 4.0
