Official File parts/73109.dat
Part Attributes:
File Header:

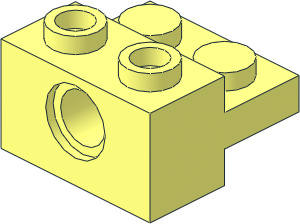

0 Technic Brick 1 x 2 with Plate 1 x 2
0 Name: 73109.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
0 // Brick Bottom
4 16 20 24 -10 -20 24 -10 -16 24 -6 16 24 -6
4 16 20 24 10 20 24 -10 16 24 -6 16 24 6
4 16 -20 24 10 -16 24 6 -16 24 -6 -20 24 -10
4 16 -16 24 6 -8 24 8 8 24 8 16 24 6
4 16 16 24 6 8 24 8 8 24 10 20 24 10
4 16 -20 24 10 -8 24 10 -8 24 8 -16 24 6
1 16 0 18 0 1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 0 18 0 1 0 0 0 1 0 0 0 1 cylj4x8.dat
2 24 16 24 6 -16 24 6
2 24 16 24 -6 -16 24 -6
2 24 -8 24 10 -20 24 10
2 24 8 24 10 20 24 10
2 24 20 24 10 20 24 -10
2 24 -20 24 -10 -20 24 10
0 BFC INVERTNEXT
1 16 12 14 0 0 0 4 0 -10 0 -6 0 0 box2-5.dat
0 BFC INVERTNEXT
1 16 -12 14 0 0 0 -4 0 -10 0 6 0 0 box2-5.dat
4 16 16 24 6 16 4 6 8 4 6 8 18 6
4 16 16 24 -6 8 18 -6 8 4 -6 16 4 -6
4 16 -8 18 6 -8 4 6 -16 4 6 -16 24 6
4 16 -8 18 -6 -16 24 -6 -16 4 -6 -8 4 -6
4 16 16 24 6 8 18 6 -8 18 6 -16 24 6
4 16 16 24 -6 -16 24 -6 -8 18 -6 8 18 -6
1 16 0 10 6 8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 0 10 -6 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 0 10 6 8 0 0 0 0 8 0 -12 0 2-4cylo.dat
1 16 8 7 0 0 -1 0 -3 0 0 0 0 -6 rect2p.dat
1 16 -8 7 0 0 1 0 -3 0 0 0 0 6 rect2p.dat
0 // Brick Outside
4 16 20 24 -10 9 19 -10 -9 19 -10 -20 24 -10
4 16 20 0 -10 -20 0 -10 -9 1 -10 9 1 -10
4 16 20 24 -10 20 0 -10 9 1 -10 9 19 -10
4 16 -20 24 -10 -9 19 -10 -9 1 -10 -20 0 -10
1 16 0 10 -10 9 0 0 0 0 9 0 1 0 4-4ndis.dat
1 16 0 12 -10 20 0 0 0 0 12 0 1 0 recte3.dat
3 16 -20 16 10 -20 24 10 -20 24 -10
3 16 -20 8 10 -20 16 10 -20 24 -10
4 16 -20 24 -10 -20 0 -10 -20 0 10 -20 8 10
4 16 20 24 10 20 16 10 20 0 -10 20 24 -10
3 16 20 8 10 20 0 10 20 0 -10
3 16 20 16 10 20 8 10 20 0 -10
2 24 20 16 10 20 24 10
2 24 20 0 10 20 8 10
2 24 -20 16 10 -20 24 10
2 24 -20 0 10 -20 8 10
1 16 0 0 0 -20 0 0 0 1 0 0 0 -10 rect.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug2-2x1.dat
0 // Plate Attachment and Pin Hole
0 BFC INVERTNEXT
1 16 0 21 10 0 0 8 -3 0 0 0 -2 0 box3u5p.dat
3 16 6 16 8 8 18 8 0 16 8
4 16 -6 16 8 0 16 8 8 18 8 -8 18 8
4 16 -8 10 8 -6 10 8 -6 16 8 -8 18 8
4 16 8 18 8 6 16 8 6 10 8 8 10 8
1 16 0 10 0 1 0 0 0 0 1 0 1 0 connhol3.dat
1 16 0 10 8 6 0 0 0 0 6 0 -1 0 2-4ndis.dat
1 16 0 10 8 2 0 0 0 0 -2 0 -1 0 2-4ring3.dat
1 16 0 10 8 8 0 0 0 0 -8 0 -1 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 10 10 0 0 -8 -8 0 0 0 -2 0 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 10 10 0 0 8 -8 0 0 0 -2 0 3-16cyli.dat
1 16 0 10 10 0 0 -8 -8 0 0 0 1 0 3-16edge.dat
1 16 0 10 10 0 0 8 -8 0 0 0 1 0 3-16edge.dat
2 24 7.391 6.938 10 7.602 8 10
2 24 -7.602 8 10 -7.391 6.938 10
4 16 8 18 10 8 18 8 8 10 8 8 16 10
4 16 7.391 6.938 10 7.602 8 10 8 10 8 7.391 6.938 8
4 16 -7.391 6.938 8 -8 10 8 -7.602 8 10 -7.391 6.938 10
4 16 -8 18 10 -8 16 10 -8 10 8 -8 18 8
4 16 -8 10 8 -8 10 12 -7.602 8 12 -7.602 8 10
4 16 8 10 8 7.602 8 10 7.602 8 12 8 10 12
4 16 8 10 12 8 16 12 8 16 10 8 10 8
4 16 -8 16 10 -8 16 12 -8 10 12 -8 10 8
2 24 -8 10 8 -8 18 8
2 24 -8 16 10 -8 18 10
2 24 8 16 10 8 18 10
2 24 8 10 8 8 18 8
2 24 7.6023 8 12 8 10 12
2 24 -8 10 12 -7.6023 8 12
2 24 8 16 10 8 16 12
2 24 -8 16 12 -8 16 10
2 24 8 16 12 8 10 12
2 24 -8 10 12 -8 16 12
5 24 -8 10 12 -8 10 8 -8 18 8 -7.3912 6.9384 8
5 24 -7.3912 6.9384 10 -7.3912 6.9384 8 -5.6568 4.3432 8 -8 10 8
5 24 7.391 6.938 10 7.391 6.938 8 8 10 8 5.6568 4.3432 8
5 24 8 10 12 8 10 8 7.391 6.938 8 8 18 8
1 16 0 8 11 7.602 0 0 0 1 0 0 0 1 recte3.dat
1 16 0 10 10 0 0 -8 -8 0 0 0 -1 0 3-16ndis.dat
1 16 0 10 10 0 0 8 -8 0 0 0 -1 0 3-16ndis.dat
3 16 20 0 10 8 2 10 0 2 10
4 16 -20 0 10 20 0 10 0 2 10 -8 2 10
4 16 20 0 10 20 8 10 7.391 6.938 10 8 2 10
4 16 -20 8 10 -20 0 10 -8 2 10 -7.391 6.938 10
3 16 -7.391 6.938 10 -7.602 8 10 -20 8 10
3 16 7.602 8 10 7.391 6.938 10 20 8 10
4 16 -20 24 10 -20 16 10 -16 16 10 -8 24 10
4 16 20 24 10 8 24 10 16 16 10 20 16 10
2 24 16 16 10 20 16 10
2 24 -20 16 10 -16 16 10
4 16 -10 16 10 -8 18 10 -8 24 10 -16 16 10
4 16 10 16 10 16 16 10 8 24 10 8 18 10
3 16 8 18 10 8 16 10 10 16 10
3 16 -10 16 10 -8 16 10 -8 18 10
4 16 10 12 10 16 12 10 16 16 10 10 16 10
4 16 -16 12 10 -10 12 10 -10 16 10 -16 16 10
2 24 8 16 10 10 16 10
2 24 -10 16 10 -8 16 10
2 24 -10 12 10 -16 12 10
2 24 10 12 10 16 12 10
0 // Plate
4 16 8 16 10 8 16 12 10 16 14 10 16 10
4 16 -10 16 14 -8 16 12 -8 16 10 -10 16 10
4 16 6.00535 16 12.48755 6.765 16 14 10 16 14 8 16 12
4 16 8 16 12 5.6023 16 12 5.5434 16 12.2962 6.00535 16 12.48755
4 16 6.765 16 14 6.00535 16 12.48755 4.59615 16 14.59615 5.6568 16 15.6568
4 16 -6.765 16 14 -5.6568 16 15.6568 -4.59615 16 14.59615 -6.00535 16 12.48755
4 16 0 16 18 -2.48755 16 16.00535 -4.59615 16 14.59615 -5.6568 16 15.6568
4 16 0 16 18 5.6568 16 15.6568 4.59615 16 14.59615 2.48755 16 16.00535
3 16 0 16 18 2.48755 16 16.00535 0 16 16.5
3 16 0 16 18 0 16 16.5 -2.48755 16 16.00535
4 16 -8 16 12 -6.00535 16 12.48755 -5.5434 16 12.2962 -5.6023 16 12
4 16 -6.00535 16 12.48755 -8 16 12 -10 16 14 -6.765 16 14
1 16 0 16 10 0 0 -.5 0 -1 0 .5 0 0 3-16ring12.dat
1 16 0 16 10 0 0 .5 0 -1 0 .5 0 0 3-16ring12.dat
1 16 0 16 10 0 0 -8 0 -1 0 8 0 0 1-8chrd.dat
1 16 0 16 10 0 0 8 0 -1 0 8 0 0 1-8chrd.dat
3 16 -7.602 8 12 -8 10 12 7.602 8 12
3 16 8 10 12 7.602 8 12 -8 10 12
3 16 5.602 12 12 8 10 12 -5.602 12 12
3 16 -8 10 12 -5.602 12 12 8 10 12
4 16 -5.602 16 12 -5.602 12 12 -8 10 12 -8 16 12
4 16 8 10 12 5.602 12 12 5.6023 16 12 8 16 12
2 24 5.6023 16 12 8 16 12
2 24 -5.6023 16 12 -8 16 12
1 16 5.57285 14 12.1481 0 1 .02945 2 0 0 0 0 -.1481 rect3.dat
1 16 -5.57285 14 12.1481 0 -1 -.02945 -2 0 0 0 0 -.1481 rect3.dat
0 BFC INVERTNEXT
1 16 0 16 10 0 0 -6 0 -4 0 6 0 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 0 16 10 0 0 6 0 -4 0 6 0 0 3-16cylo.dat
1 16 0 12 10 0 0 -6 0 -1 0 6 0 0 3-16chrd.dat
1 16 0 12 10 0 0 6 0 -1 0 6 0 0 3-16chrd.dat
4 16 5.5434 12 12.2962 5.6023 12 12 -5.6023 12 12 -5.5434 12 12.2962
3 16 0 12 16 5.5434 12 12.2962 -5.5434 12 12.2962
2 24 5.6023 12 12 -5.6023 12 12
5 24 5.5434 16 12.2962 5.5434 12 12.2962 5.6023 16 12 4.2426 16 14.2426
5 24 -5.5434 16 12.2962 -5.5434 12 12.2962 -5.6023 16 12 -4.2426 16 14.2426
5 24 5.6568 16 15.6568 5.6568 12 15.6568 6.765 12 14 3.0616 12 17.3912
5 24 -5.6568 16 15.6568 -5.6568 12 15.6568 -6.765 12 14 -3.0616 12 17.3912
1 16 10 14 12 0 -1 0 0 0 2 -2 0 0 rect.dat
1 16 -10 14 12 0 1 0 -2 0 0 0 0 2 rect.dat
1 16 -8.3825 14 14 -1.6175 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 8.3825 14 14 -1.6175 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 6.2109 14 14.8284 0 -1 .5541 -2 0 0 0 0 -.8284 rect3.dat
1 16 -6.2109 14 14.8284 0 1 -.5541 -2 0 0 0 0 -.8284 rect3.dat
1 16 0 16 10 0 0 -8 0 -4 0 8 0 0 1-8cylo.dat
1 16 0 16 10 0 0 8 0 -4 0 8 0 0 1-8cylo.dat
3 16 -16 12 26 16 12 26 0 12 18
4 16 -10 12 14 -16 12 26 0 12 18 -6.765 12 14
4 16 0 12 18 16 12 26 10 12 14 6.765 12 14
4 16 16 12 10 10 12 10 10 12 14 16 12 26
4 16 -10 12 14 -10 12 10 -16 12 10 -16 12 26
0 BFC INVERTNEXT
1 16 0 14 10 0 0 16 -2 0 0 0 16 0 box3u2p.dat
4 16 20 16 30 16 16 26 -16 16 26 -20 16 30
4 16 -20 16 30 -16 16 26 -16 16 10 -20 16 10
4 16 20 16 10 16 16 10 16 16 26 20 16 30
1 16 0 12 10 0 0 20 -4 0 0 0 20 0 box3u4a.dat
4 16 -20 8 10 -7.602 8 10 -7.602 8 12 -20 8 30
4 16 20 8 10 20 8 30 7.602 8 12 7.602 8 10
4 16 -20 8 30 -7.6023 8 12 7.6023 8 12 20 8 30
1 16 0 8 20 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
2 24 -20 8 10 -7.602 8 10
2 24 7.602 8 10 20 8 10
Status:
Official
