Official File parts/18675ps1.dat
External site data provided by Rebrickable.com

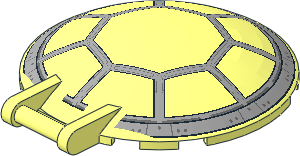

Dish 6 x 6 Inverted - No Studs with Handle with Octagonal Cockpit Pattern
0 Dish  6 x  6 Inverted - No Studs with Handle with Octagonal Cockpit Pattern
0 Name: 18675ps1.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS 18675pb05, BrickLink 18675pb05, Rebrickable 18675pr0004, Set 75101
0 !KEYWORDS Spokes, Star Wars, tie, windscreen

0 !HISTORY 2019-08-05 [GeraldLasser] reworked pattern to included space around the handle
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2020-11-07 [cwdee] Correct description
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18675s01.dat

0 BFC NOCLIP
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18675ps1s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\18675ps1s01.dat
1 16 0 0 0 0.707107 0 0.707107 0 1 0 -0.707107 0 0.707107 s\18675ps1s01.dat
1 16 0 0 0 -0.707107 0 0.707107 0 1 0 0.707107 0 0.707107 s\18675ps1s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\18675ps1s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\18675ps1s01.dat
1 16 0 0 0 -0.707107 0 0.707107 0 1 0 -0.707107 0 -0.707107 s\18675ps1s01.dat
1 16 0 0 0 0.707107 0 0.707107 0 1 0 0.707107 0 -0.707107 s\18675ps1s02.dat
1 16 0 0 0 0.707107 0 -0.707107 0 1 0 -0.707107 0 -0.707107 s\18675ps1s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\18675ps1s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\18675ps1s01.dat
1 16 0 0 0 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 s\18675ps1s01.dat
1 16 0 0 0 -0.707107 0 -0.707107 0 1 0 -0.707107 0 0.707107 s\18675ps1s01.dat
1 16 0 0 0 -.707107 0 -.707107 0 1 0 .707107 0 -.707107 s\18675ps1s02.dat

1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\18675ps1s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\18675ps1s03.dat

Status

Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 22: 1 16 0 0 0 0.707107 0 0.707107 0 1 0 -0.707107 0 0.707107 s\18675ps1s01.dat
    Line 23: 1 16 0 0 0 -0.707107 0 0.707107 0 1 0 0.707107 0 0.707107 s\18675ps1s01.dat
    Line 26: 1 16 0 0 0 -0.707107 0 0.707107 0 1 0 -0.707107 0 -0.707107 s\18675ps1s01.dat
    Line 27: 1 16 0 0 0 0.707107 0 0.707107 0 1 0 0.707107 0 -0.707107 s\18675ps1s02.dat
    Line 28: 1 16 0 0 0 0.707107 0 -0.707107 0 1 0 -0.707107 0 -0.707107 s\18675ps1s01.dat
    Line 31: 1 16 0 0 0 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 s\18675ps1s01.dat
    Line 32: 1 16 0 0 0 -0.707107 0 -0.707107 0 1 0 -0.707107 0 0.707107 s\18675ps1s01.dat
    Line 33: 1 16 0 0 0 -.707107 0 -.707107 0 1 0 .707107 0 -.707107 s\18675ps1s02.dat
