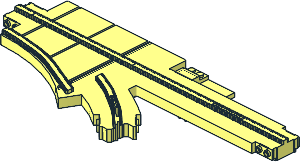

0 Monorail Track Point Right (Straight)
0 Name: 74780-f1.dat
0 Author: Mikkel Bech Jensen [gaia]
0 !LDRAW_ORG Shortcut UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Use the following transformation matrices for
0 !HELP 1 x 2 Plates and 1 x 2 Tile with Arrow
0 !HELP 1 16 36.2 1 70 1 0 0 0 1 0 0 0 1 3023.dat
0 !HELP 1 16 36.2 -7 70 1 0 0 0 1 0 0 0 1 3069bp14.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Airport Shuttle, BrickLink 2889, Rebrickable 2889, Set 6347
0 !KEYWORDS Set 6991, Unitron
0 !HISTORY 2020-02-02 [Holly-Wood] Fixed collision
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2020-11-15 [cwdee] Update description
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 // Bottom
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2881a.dat
0 // Points Inner Wheel
1 47 -134 13 0 -.68438 0 -.72973 0 -1 0 .72985 0 -.68438 2884.dat
0 // Track Points Interior Shover Straight
1 16 -89.802 13 16.486 .21303 0 -.97704 0 1 0 .97704 0 .21303 2911.dat
0 // Points Shover Straight
1 16 36.2 9 35 -1 0 0 0 1 0 0 0 -1 2883.dat
0 // Points Rack Shover Straight
1 16 106.15 8.107 0 .99444 -.11021 0 .11021 .99444 0 0 0 1 2890.dat
0 // Track Points Interior Shover Curve
1 16 -76.144 13 -68.105 -.33216 0 .94322 0 1 0 -.94322 0 -.33216 2911.dat
0 // Points Rack Shover Curve
1 16 11.669 5 -104.683 .80902 0 .58779 0 1 0 -.58779 0 .80902 2890.dat
0 // Switch Rack
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2882.dat
0 // Top
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2880a.dat
This part is copyright © Mikkel Bech Jensen
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Willy Tschager,
Chris Dee,
3D View
