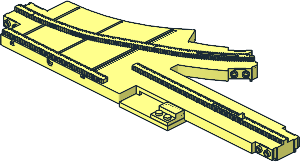

0 Monorail Track Point Left (Curved)
0 Name: 74781-f2.dat
0 Author: Mikkel Bech Jensen [gaia]
0 !LDRAW_ORG Shortcut UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Use the following transformation matrices for
0 !HELP 1 x 2 Plates and 1 x 2 Tile with Arrow
0 !HELP 1 16 98.62 1 -70 1 0 0 0 1 0 0 0 1 3023.dat
0 !HELP 1 16 98.62 -7 -70 1 0 0 0 1 0 0 0 1 3069bp14.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Airport Shuttle, BrickLink 2890, Rebrickable 2890, Set 6347
0 !KEYWORDS Set 6991, Unitron
0 !HISTORY 2020-02-02 [Holly-Wood] Fixed collision
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2020-11-15 [cwdee] Update description
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 // Bottom
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2886.dat
0 // Points Inner Wheel
1 47 -133.99 13 0 .70058 0 -.71431 0 -1 0 -.71431 0 -.70046 2884.dat
0 // Track Points Interior Shover Straight
1 16 -27.423 13 -16.055 -.20962 0 -.97778 0 1 0 .97778 0 -.20962 2911.dat
0 // Points Shover Straight
1 16 98.62 9 -35 1 0 0 0 1 0 0 0 1 2883.dat
0 // Points Rack Shover Straight
1 16 168.62 5 0 1 0 0 0 1 0 0 0 1 2890.dat
0 // Track Points Interior Shover Curve
1 16 -113.094 13 29.508 .55049 0 .83485 0 1 0 -.83485 0 .55049 2911.dat
0 // Points Rack Shover Curve
1 16 -32.408 7.367 80.699 .87458 -.10177 -.47409 .12254 .99238 .01303 .46915 -.06949 .88038 2890.dat
0 // Switch Rack
1 16 0 0 -69.5 1 0 0 0 1 0 0 0 1 2887.dat
0 // Top
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2885.dat
This part is copyright © Mikkel Bech Jensen
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Willy Tschager,
Chris Dee,
3D View
