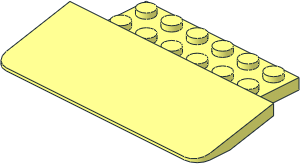

0 Slope 5 x 8 x 0.667 with 2 x 6 Plate
0 Name: 75539.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Stuntz
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
0 // Bottom
4 16 -56 8 -16 56 8 -16 57 8 -20 -57 8 -20
4 16 56 8 16 -56 8 16 -60 8 20 60 8 20
4 16 -56 8 16 -56 8 -16 -57 8 -20 -60 8 20
4 16 56 8 -16 56 8 16 60 8 20 57 8 -20
4 16 60 8 -74 57 8 -74 57 8 -20 60 8 20
4 16 -57 8 -20 -57 8 -74 -60 8 -74 -60 8 20
1 16 -70 8 -70 -10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 -70 8 -70 0 0 -10 0 -1 0 -10 0 0 1-8chrd.dat
1 16 70 8 -70 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 70 8 -70 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 -80 8 -70 -80 8 -54.2857 -77 8 -54.2857 -77 8 -74
3 16 -77 8 -74 -77.071 8 -77.071 -80 8 -70
3 16 -77.071 8 -77.071 -77 8 -74 -60 8 -74
3 16 -77.071 8 -77.071 -60 8 -74 -70 8 -80
3 16 -70 8 -80 -60 8 -74 -57 8 -74
4 16 77 8 -54.2857 80 8 -54.2857 80 8 -70 77 8 -74
3 16 77.071 8 -77.071 77 8 -74 80 8 -70
3 16 77 8 -74 77.071 8 -77.071 60 8 -74
3 16 60 8 -74 77.071 8 -77.071 70 8 -80
3 16 60 8 -74 70 8 -80 57 8 -74
4 16 -70 8 -80 -57 8 -74 57 8 -74 70 8 -80
0 // Bottom Inside
1 16 0 4 0 -1 0 0 0 -1 0 0 0 -1 stug4-1x5.dat
0 BFC INVERTNEXT
1 16 0 8 0 -56 0 0 0 -4 0 0 0 -16 box5.dat
1 16 0 6 -20 0 0 -57 -2 0 0 0 1 0 rect.dat
1 16 0 8 -47 -57 0 0 0 1 0 0 0 -27 recte3.dat
1 16 0 0 -21.5 -57 0 0 0 4 0 0 0 -1.5 box2-7.dat
4 16 57 4 -23 57 4 -20 57 8 -20 57 8 -74
4 16 -57 8 -20 -57 4 -20 -57 4 -23 -57 8 -74
3 16 -57 4 -23 -57 -4 -23 -57 8 -74
3 16 57 -4 -23 57 4 -23 57 8 -74
1 16 0 2 -48.5 -57 0 0 0 -1 -6 0 0 25.5 rect3.dat
4 16 60 8 20 60 0 20 60 0 -20 60 8 -74
2 24 60 8 20 60 8 -74
0 BFC INVERTNEXT
1 16 68.5 4 -48.5 -8.5 0 0 0 -2 -6 0 0 25.5 box2-5.dat
3 16 60 -4 -23 60 8 -74 60 0 -23
3 16 60 0 -20 60 0 -23 60 8 -74
4 16 77 -4 -23 77 0 -23 77 8 -54.2857 77 8 -74
3 16 77 8 -54.2857 77 0 -23 77 .7 -23
4 16 77 0 -23 60 0 -23 60 0 -20 76 0 -20
3 16 77 .7 -23 77 0 -23 76 0 -20
3 16 77 .7 -23 76 0 -20 80 0 -20
4 16 77 .7 -23 80 0 -20 80 8 -54.2857 77 8 -54.2857
2 24 77 .7 -23 76 0 -20
2 24 77 0 -23 76 0 -20
2 24 60 0 -20 76 0 -20
2 24 76 0 -20 80 0 -20
2 24 60 0 -20 60 0 -23
2 24 77 0 -23 77 .7 -23
2 24 77 8 -54.2857 77 .7 -23
2 24 80 8 -54.2857 80 0 -20
2 24 80 8 -54.2857 77 8 -54.2857
2 24 77 8 -54.2857 77 8 -74
2 24 80 8 -54.2857 80 8 -70
4 16 -60 0 -20 -60 0 20 -60 8 20 -60 8 -74
2 24 -60 8 20 -60 8 -74
0 BFC INVERTNEXT
1 16 -68.5 4 -48.5 8.5 0 0 0 -2 -6 0 0 25.5 box2-5.dat
3 16 -60 8 -74 -60 -4 -23 -60 0 -23
3 16 -60 0 -23 -60 0 -20 -60 8 -74
4 16 -77 8 -54.2857 -77 0 -23 -77 -4 -23 -77 8 -74
3 16 -77 0 -23 -77 8 -54.2857 -77 .7 -23
4 16 -60 0 -20 -60 0 -23 -77 0 -23 -76 0 -20
3 16 -77 0 -23 -77 .7 -23 -76 0 -20
3 16 -76 0 -20 -77 .7 -23 -80 0 -20
4 16 -80 8 -54.2857 -80 0 -20 -77 .7 -23 -77 8 -54.2857
2 24 -77 .7 -23 -76 0 -20
2 24 -77 0 -23 -76 0 -20
2 24 -60 0 -20 -76 0 -20
2 24 -76 0 -20 -80 0 -20
2 24 -60 0 -20 -60 0 -23
2 24 -77 0 -23 -77 .7 -23
2 24 -77 8 -54.2857 -77 .7 -23
2 24 -80 8 -54.2857 -80 0 -20
2 24 -80 8 -54.2857 -77 8 -54.2857
2 24 -77 8 -54.2857 -77 8 -74
2 24 -80 8 -54.2857 -80 8 -70
0 // Outside
1 16 0 4 0 -60 0 0 0 -4 0 0 0 20 box2-5.dat
1 16 0 0 -10 -1 0 0 0 1 0 0 0 -1 stug-1x6.dat
1 16 0 0 10 -1 0 0 0 1 0 0 0 -1 stug-1x6.dat
4 16 -60 0 -20 -80 -8 -20 80 -8 -20 60 0 -20
3 16 -80 -8 -20 -60 0 -20 -76 0 -20
3 16 -80 -8 -20 -76 0 -20 -80 0 -20
3 16 76 0 -20 60 0 -20 80 -8 -20
3 16 80 0 -20 76 0 -20 80 -8 -20
1 16 0 -4 -20 80 0 0 0 0 -4 0 1 0 recte3.dat
4 16 -80 6 -70 -80 3.6667 -70 -80 -8 -20 -80 0 -20
3 16 -80 8 -54.2857 -80 8 -70 -80 6 -70
3 16 -80 8 -54.2857 -80 6 -70 -80 0 -20
4 16 80 -8 -20 80 3.6667 -70 80 6 -70 80 0 -20
3 16 80 8 -70 80 8 -54.2857 80 6 -70
3 16 80 6 -70 80 8 -54.2857 80 0 -20
1 16 -70 8 -70 -10 0 0 0 1 0 0 0 -10 1-4edge.dat
1 16 -70 8 -70 -10 0 0 0 -2 0 0 0 -10 1-4cyli.dat
1 16 -70 6 -70 0 0 -10 0 -2.33333 0 -10 0 0 1-4cyls.dat
1 16 -70 3.66667 -70 0 0 -10 2.33333 1 0 -10 0 0 1-4chrd.dat
1 16 -70 3.66667 -70 0 0 -10 2.33333 1 0 -10 0 0 1-4edge.dat
1 16 70 8 -70 10 0 0 0 1 0 0 0 -10 1-4edge.dat
1 16 70 8 -70 10 0 0 0 -2 0 0 0 -10 1-4cyli.dat
1 16 70 6 -70 0 0 10 0 -2.33333 0 -10 0 0 1-4cyls.dat
1 16 70 3.66667 -70 0 0 10 2.33333 1 0 -10 0 0 1-4chrd.dat
1 16 70 3.66667 -70 0 0 10 2.33333 1 0 -10 0 0 1-4edge.dat
1 16 0 -2.1667 -45 0 0 -80 -5.83334 1 0 25 0 0 rect2p.dat
4 16 80 3.6667 -70 -80 3.6667 -70 -70 6 -80 70 6 -80
1 16 0 7 -80 -70 0 0 0 0 1 0 1 0 rect2p.dat
