Official File parts/18816.dat
Part Attributes:
File Header:

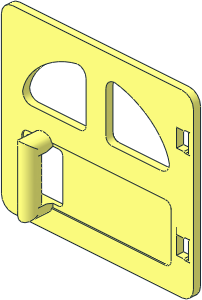

0 Duplo Door 1 x 4 x 3 with Two Rounded Panes and Handle
0 Name: 18816.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !HISTORY 2020-12-12 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-01-21 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27382s02.dat
1 16 -104 27 0 1 0 0 0 1 0 0 0 1 s\18816s01.dat
5 24 -98 42 -6 -110 42 -6 -110 42 -12 -110 43.5 -1.5
2 24 -98 43.5 -1.5 -98 42 -6
2 24 -110 42 -6 -110 43.5 -1.5
4 16 -110 42 -6 -98 42 -6 -98 43.5 -1.5 -110 43.5 -1.5
2 24 -98 43.5 -1.5 -98 46 -1.5
2 24 -110 43.5 -1.5 -110 46 -1.5
4 16 -98 46 -2.5 -98 46 -1.5 -98 43.5 -1.5 -98 42 -6
4 16 -110 43.5 -1.5 -110 46 -1.5 -110 46 -2.5 -110 42 -6
1 16 -17.3 12 -2.5 4 0 0 0 0 -4 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -17.3 12 -2.5 4 0 0 0 0 -4 0 1 0 1-4cylo.dat
1 16 -17.3 42 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat
2 24 -13.3 42 -2.5 -13.3 11.5 -2.5
2 24 -13.3 12 -1.5 -13.3 42 -1.5
4 16 -13.3 11.5 -2.5 -13.3 12 -1.5 -13.3 42 -1.5 -13.3 42 -2.5
0 BFC INVERTNEXT
1 16 -17.3 42 -2.5 4 0 0 0 0 4 0 1 0 1-4cylo.dat
1 16 -17.3 12 -1.5 4 0 0 0 0 -4 0 1 0 1-4chrd.dat
1 16 -17.3 42 -1.5 4 0 0 0 0 4 0 1 0 1-4chrd.dat
4 16 -13.3 42 -1.5 -13.3 12 -1.5 -17.3 8 -1.5 -17.3 46 -1.5
1 16 -115 12 -2.5 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -115 12 -2.5 -4 0 0 0 0 -4 0 1 0 1-4cylo.dat
1 16 -115 42 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat
2 24 -119 42 -2.5 -119 11.5 -2.5
2 24 -119 12 -1.5 -119 42 -1.5
4 16 -119 42 -1.5 -119 12 -1.5 -119 11.5 -2.5 -119 42 -2.5
0 BFC INVERTNEXT
1 16 -115 42 -2.5 -4 0 0 0 0 4 0 1 0 1-4cylo.dat
1 16 -115 12 -1.5 -4 0 0 0 0 -4 0 1 0 1-4chrd.dat
1 16 -115 42 -1.5 -4 0 0 0 0 4 0 1 0 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -114.5 13 -1.5 -2.5 0 0 0 0 -2.5 0 3 0 8\1-4cylo.dat
1 16 -114.5 13 -1.5 -2.5 0 0 0 0 -2.5 0 1 0 8\1-4ndis.dat
3 16 -119 12 -1.5 -117 10.5 -1.5 -115 8 -1.5
3 16 -115 8 -1.5 -117 10.5 -1.5 -114.5 10.5 -1.5
3 16 -117 13 -1.5 -117 10.5 -1.5 -119 12 -1.5
0 BFC INVERTNEXT
1 16 -114.5 41 -1.5 -2.5 0 0 0 0 2.5 0 3 0 8\1-4cylo.dat
1 16 -114.5 41 -1.5 -2.5 0 0 0 0 2.5 0 1 0 8\1-4ndis.dat
3 16 -117 43.5 -1.5 -119 42 -1.5 -115 46 -1.5
3 16 -117 43.5 -1.5 -115 46 -1.5 -114.5 43.5 -1.5
3 16 -117 43.5 -1.5 -117 41 -1.5 -119 42 -1.5
4 16 -117 13 -1.5 -119 12 -1.5 -119 42 -1.5 -117 41 -1.5
0 BFC INVERTNEXT
1 16 -93.5 13 -1.5 2.5 0 0 0 0 -2.5 0 3 0 8\1-4cylo.dat
1 16 -93.5 13 -1.5 2.5 0 0 0 0 -2.5 0 1 0 8\1-4ndis.dat
0 BFC INVERTNEXT
1 16 -93.5 41 -1.5 2.5 0 0 0 0 2.5 0 3 0 8\1-4cylo.dat
1 16 -93.5 41 -1.5 2.5 0 0 0 0 2.5 0 1 0 8\1-4ndis.dat
2 24 -93.5 43.5 1.5 -114.5 43.5 1.5
1 16 -112.5 46 -2 0 0 2.5 0 1 0 -0.5 0 0 rect3.dat
4 16 -110 46 -1.5 -110 43.5 -1.5 -114.5 43.5 -1.5 -115 46 -1.5
1 16 -57.65 46 -2 0 0 -40.35 0 1 0 0.5 0 0 rect3.dat
4 16 -91 43.5 -1.5 -98 43.5 -1.5 -98 46 -1.5 -17.3 46 -1.5
2 24 -98 10.5 -1.5 -98 8 -1.5
2 24 -110 10.5 -1.5 -110 8 -1.5
2 24 -114.5 10.5 1.5 -93.5 10.5 1.5
1 16 -112.5 8 -2 0 0 2.5 0 -1 0 0.5 0 0 rect3.dat
4 16 -114.5 10.5 -1.5 -110 10.5 -1.5 -110 8 -1.5 -115 8 -1.5
1 16 -57.65 8 -2 0 0 -40.35 0 -1 0 -0.5 0 0 rect3.dat
4 16 -98 8 -1.5 -98 10.5 -1.5 -91 10.5 -1.5 -17.3 8 -1.5
4 16 -91 43.5 -1.5 -17.3 46 -1.5 -17.3 8 -1.5 -91 10.5 -1.5
1 16 -17.3 12 2.5 4 0 0 0 0 -4 0 -1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -17.3 12 2.5 4 0 0 0 0 -4 0 -1 0 1-4cylo.dat
1 16 -17.3 42 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat
2 24 -13.3 42 2.5 -13.3 11.5 2.5
2 24 -13.3 12 1.5 -13.3 42 1.5
4 16 -13.3 42 1.5 -13.3 12 1.5 -13.3 11.5 2.5 -13.3 42 2.5
0 BFC INVERTNEXT
1 16 -17.3 42 2.5 4 0 0 0 0 4 0 -1 0 1-4cylo.dat
1 16 -17.3 12 1.5 4 0 0 0 0 -4 0 -1 0 1-4chrd.dat
1 16 -17.3 42 1.5 4 0 0 0 0 4 0 -1 0 1-4chrd.dat
4 16 -17.3 8 1.5 -13.3 12 1.5 -13.3 42 1.5 -17.3 46 1.5
1 16 -115 12 2.5 -4 0 0 0 0 -4 0 -1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -115 12 2.5 -4 0 0 0 0 -4 0 -1 0 1-4cylo.dat
1 16 -115 42 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat
2 24 -119 42 2.5 -119 12 2.5
2 24 -119 12 1.5 -119 42 1.5
4 16 -119 12 2.5 -119 12 1.5 -119 42 1.5 -119 42 2.5
0 BFC INVERTNEXT
1 16 -115 42 2.5 -4 0 0 0 0 4 0 -1 0 1-4cylo.dat
1 16 -115 12 1.5 -4 0 0 0 0 -4 0 -1 0 1-4chrd.dat
1 16 -115 42 1.5 -4 0 0 0 0 4 0 -1 0 1-4chrd.dat
1 16 -114.5 13 1.5 -2.5 0 0 0 0 -2.5 0 -1 0 8\1-4ndis.dat
3 16 -117 10.5 1.5 -119 12 1.5 -115 8 1.5
3 16 -117 10.5 1.5 -115 8 1.5 -114.5 10.5 1.5
3 16 -117 10.5 1.5 -117 13 1.5 -119 12 1.5
1 16 -114.5 41 1.5 -2.5 0 0 0 0 2.5 0 -1 0 8\1-4ndis.dat
3 16 -119 42 1.5 -117 43.5 1.5 -115 46 1.5
3 16 -115 46 1.5 -117 43.5 1.5 -114.5 43.5 1.5
3 16 -117 41 1.5 -117 43.5 1.5 -119 42 1.5
4 16 -119 42 1.5 -119 12 1.5 -117 13 1.5 -117 41 1.5
1 16 -93.5 13 1.5 2.5 0 0 0 0 -2.5 0 -1 0 8\1-4ndis.dat
1 16 -93.5 41 1.5 2.5 0 0 0 0 2.5 0 -1 0 8\1-4ndis.dat
1 16 -66.15 46 2 -48.85 0 0 0 1 0 0 0 -0.5 rect2p.dat
4 16 -115 46 1.5 -114.5 43.5 1.5 -91 43.5 1.5 -17.3 46 1.5
1 16 -66.15 8 2 48.85 0 0 0 -1 0 0 0 -0.5 rect2p.dat
4 16 -91 10.5 1.5 -114.5 10.5 1.5 -115 8 1.5 -17.3 8 1.5
4 16 -17.3 8 1.5 -17.3 46 1.5 -91 43.5 1.5 -91 10.5 1.5
1 16 -91 27 0 0 1 0 14 0 0 0 0 -1.5 rect2p.dat
1 16 -117 27 0 0 -1 0 14 0 0 0 0 1.5 rect2p.dat
5 24 -98 12 -6 -110 12 -6 -110 12 -12 -110 10.5 -1.5
2 24 -98 10.5 -1.5 -98 12 -6
2 24 -110 12 -6 -110 10.5 -1.5
4 16 -98 10.5 -1.5 -98 12 -6 -110 12 -6 -110 10.5 -1.5
4 16 -98 10.5 -1.5 -98 8 -1.5 -98 8 -2.5 -98 12 -6
4 16 -110 8 -2.5 -110 8 -1.5 -110 10.5 -1.5 -110 12 -6
1 16 -55.5 -11.5 -2.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 -20.5 -13.5 -2.5 6 0 0 0 0 6 0 1 0 1-4ndis.dat
1 16 -53.5 -39 -2.5 -6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 -55.5 -11.5 2.5 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat
1 16 -20.5 -13.5 2.5 6 0 0 0 0 6 0 -1 0 1-4ndis.dat
1 16 -53.5 -39 2.5 -6 0 0 0 0 -6 0 -1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -20.5 -13.5 -2.5 6 0 0 0 0 6 0 5 0 1-4cylo.dat
1 16 -38 -7.5 0 17.5 0 0 0 1 0 0 0 2.5 rect2p.dat
1 16 -59.5 -25.25 0 0 -1 0 -13.75 0 0 0 0 -2.5 rect2p.dat
0 BFC INVERTNEXT
1 16 -55.5 -11.5 -2.5 -4 0 0 0 0 4 0 5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -55.5 -11.5 2.5 -4 0 0 0 0 4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -53.5 -39 -2.5 -6 0 0 0 0 -6 0 5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -48.8808 -19.2191 -2.5 34.38075 0 -4.61925 5.71907 0 -25.78093 0 5 0 48\1-4cylo.dat
1 16 -48.8808 -19.2191 -2.5 34.38075 0 -4.61925 5.71907 0 -25.78093 0 1 0 48\1-4ndis.dat
1 16 -77.5 -11.5 -2.5 4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 -112.5 -13.5 -2.5 -6 0 0 0 0 6 0 1 0 1-4ndis.dat
1 16 -79.5 -39 -2.5 6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 -77.5 -11.5 2.5 4 0 0 0 0 4 0 -1 0 1-4ndis.dat
1 16 -112.5 -13.5 2.5 -6 0 0 0 0 6 0 -1 0 1-4ndis.dat
1 16 -79.5 -39 2.5 6 0 0 0 0 -6 0 -1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -112.5 -13.5 -2.5 -6 0 0 0 0 6 0 5 0 1-4cylo.dat
1 16 -95 -7.5 0 17.5 0 0 0 1 0 0 0 2.5 rect2p.dat
1 16 -73.5 -25.25 0 0 1 0 13.75 0 0 0 0 -2.5 rect2p.dat
0 BFC INVERTNEXT
1 16 -77.5 -11.5 -2.5 4 0 0 0 0 4 0 5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -77.5 -11.5 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -79.5 -39 -2.5 6 0 0 0 0 -6 0 5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -84.1192 -19.2191 -2.5 -34.38075 0 4.61925 5.71907 0 -25.78093 0 5 0 48\1-4cylo.dat
1 16 -84.1192 -19.2191 -2.5 -34.38075 0 4.61925 5.71907 0 -25.78093 0 1 0 48\1-4ndis.dat
4 16 -79.5 -45 -2.5 -53.5 -45 -2.5 -5.5 -60 -2.5 -125.5 -60 -2.5
4 16 -59.5 -7.5 -2.5 -59.5 -45 -2.5 -73.5 -45 -2.5 -73.5 -7.5 -2.5
4 16 -119 8 -2.5 -13.3 8 -2.5 -14.5 -7.5 -2.5 -118.5 -7.5 -2.5
3 16 -53.5 -45 -2.5 -19.1192 -39.2809 -2.5 -5.5 -60 -2.5
4 16 -9.5 -37 -2.5 -5.5 -60 -2.5 -19.1192 -39.2809 -2.5 -14.5 -13.5 -2.5
4 16 -113.8808 -39.2809 -2.5 -79.5 -45 -2.5 -125.5 -60 -2.5 -133.5 -52 -2.5
3 16 -113.8808 -39.2809 -2.5 -133.5 -52 -2.5 -118.5 -13.5 -2.5
4 16 -119 8 -2.5 -118.5 -7.5 -2.5 -118.5 -13.5 -2.5 -133.5 -52 -2.5
4 16 -133.5 52 -2.5 -119 46 -2.5 -119 8 -2.5 -133.5 -52 -2.5
3 16 -119 46 -2.5 -133.5 52 -2.5 -125.5 60 -2.5
4 16 -13.3 46 -2.5 -119 46 -2.5 -125.5 60 -2.5 -5.5 60 -2.5
4 16 -9.5 -37 -2.5 -14.5 -13.5 -2.5 -14.5 -7.5 -2.5 -13.3 8 -2.5
4 16 -9.5 37 -2.5 -9.5 -37 -2.5 -13.3 8 -2.5 -13.3 46 -2.5
3 16 -9.5 37 -2.5 -13.3 46 -2.5 -5.5 60 -2.5
4 16 -5.5 -60 2.5 -53.5 -45 2.5 -79.5 -45 2.5 -125.5 -60 2.5
4 16 -73.5 -45 2.5 -59.5 -45 2.5 -59.5 -7.5 2.5 -73.5 -7.5 2.5
4 16 -14.5 -7.5 2.5 -13.3 8 2.5 -119 8 2.5 -118.5 -7.5 2.5
3 16 -19.1192 -39.2809 2.5 -53.5 -45 2.5 -5.5 -60 2.5
4 16 -19.1192 -39.2809 2.5 -5.5 -60 2.5 -9.5 -37 2.5 -14.5 -13.5 2.5
4 16 -125.5 -60 2.5 -79.5 -45 2.5 -113.8808 -39.2809 2.5 -133.5 -52 2.5
3 16 -133.5 -52 2.5 -113.8808 -39.2809 2.5 -118.5 -13.5 2.5
4 16 -118.5 -13.5 2.5 -118.5 -7.5 2.5 -119 8 2.5 -133.5 -52 2.5
4 16 -119 8 2.5 -119 46 2.5 -133.5 52 2.5 -133.5 -52 2.5
3 16 -133.5 52 2.5 -119 46 2.5 -125.5 60 2.5
4 16 -125.5 60 2.5 -119 46 2.5 -13.3 46 2.5 -5.5 60 2.5
4 16 -14.5 -7.5 2.5 -14.5 -13.5 2.5 -9.5 -37 2.5 -13.3 8 2.5
4 16 -13.3 8 2.5 -9.5 -37 2.5 -9.5 37 2.5 -13.3 46 2.5
3 16 -13.3 46 2.5 -9.5 37 2.5 -5.5 60 2.5
1 16 -133.5 0 0 0 1 0 -52 0 0 0 0 2.5 rect2p.dat
1 16 -48.8808 -19.2191 2.5 34.38075 0 -4.61925 5.71907 0 -25.78093 0 -1 0 48\1-4ndis.dat
1 16 -84.1192 -19.2191 2.5 -34.38075 0 4.61925 5.71907 0 -25.78093 0 -1 0 48\1-4ndis.dat
2 24 -114.5 10.5 -1.5 -110 10.5 -1.5
2 24 -98 10.5 -1.5 -93.5 10.5 -1.5
4 16 -98 10.5 -1.5 -110 10.5 -1.5 -114.5 10.5 1.5 -93.5 10.5 1.5
3 16 -114.5 10.5 -1.5 -114.5 10.5 1.5 -110 10.5 -1.5
3 16 -98 10.5 -1.5 -93.5 10.5 1.5 -93.5 10.5 -1.5
5 24 -98 10.5 -1.5 -110 10.5 -1.5 -110 12 -6 -114.5 10.5 1.5
2 24 -114.5 43.5 -1.5 -110 43.5 -1.5
2 24 -98 43.5 -1.5 -93.5 43.5 -1.5
4 16 -114.5 43.5 1.5 -110 43.5 -1.5 -98 43.5 -1.5 -93.5 43.5 1.5
3 16 -114.5 43.5 1.5 -114.5 43.5 -1.5 -110 43.5 -1.5
3 16 -93.5 43.5 1.5 -98 43.5 -1.5 -93.5 43.5 -1.5
5 24 -98 43.5 -1.5 -110 43.5 -1.5 -110 42 -6 -114.5 43.5 1.5
