Official File parts/76113c01.dat
Part Attributes:
Base Part: 76113.dat
File Header:

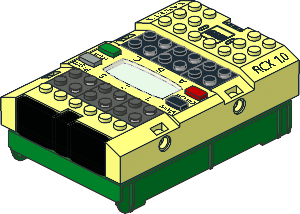

0 ~Electric Mindstorms RCX 1.0 Module
0 Name: 76113c01.dat
0 Author: John Van Zwieten [jvan]
0 !LDRAW_ORG Shortcut UPDATE 2022-06
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1999-03-26 [PTadmin] Official Update 1999-02
0 !HISTORY 2007-07-23 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4
0 !HISTORY 2017-01-04 [MagFors] Made BFC
0 !HISTORY 2022-07-18 [MagFors] Split into parts
0 !HISTORY 2022-09-11 [OrionP] Moved from 883.dat
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 76113.dat
0 // Curcuit board
1 2 0 0 0 1 0 0 0 1 0 0 0 1 71748.dat
0 // Battery box
1 2 0 40 0 1 0 0 0 1 0 0 0 1 32116.dat
0 // IR Glass
1 32 0 0 0 1 0 0 0 1 0 0 0 1 32110.dat
0 // vision blocker, behind the IR glass
4 0 62 14 -114 62 14 -95 -62 14 -95 -62 14 -114
4 0 62 14 -114 -62 14 -114 -62 40 -114 62 40 -114
0 // Rubber Buttons
0 // green/grey
1 67 -58 12 -9 1 0 0 0 1 0 0 0 1 71645p02.dat
0 // red/black
1 67 58 12 -9 1 0 0 0 1 0 0 0 1 71645p01.dat
0 // Ports
1 0 -40 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 0 0 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 0 40 8 40 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 -40 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 0 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
1 8 40 8 -60 0 0 1 0 1 0 -1 0 0 6554c01.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © John Van Zwieten
Licensed under CC BY 2.0
