File Detail parts/79505.dat

Official File parts/79505.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

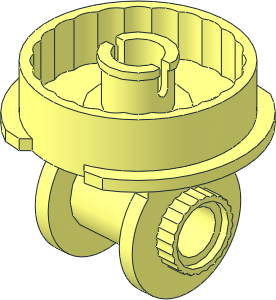

Technic Rotation Joint Disk with Pin and 2 Perpendicular Click Rotation Ring Sockets

File Header:

0 Technic Rotation Joint Disk with Pin and  2 Perpendicular Click Rotation Ring Sockets
0 Name: 79505.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-01-21 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-01-21 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04

Show contents

1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\79505s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\79505s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\79505s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\79505s01.dat
1 16 0 -22 0 0 0 6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -22 0 -2 0 0 0 -1 0 0 0 -2 2-4ring3.dat
0 BFC INVERTNEXT
1 16 0 -20 0 -8 0 0 0 -2 0 0 0 -8 2-4cylo.dat
1 16 0 -20 0 -8 0 0 0 -1 0 0 0 -8 2-4ndis.dat
1 16 0 -22 0 0 0 26 0 2 0 -26 0 0 48\1-24cyli.dat
4 16 9.9502 -22 -24.0214 6.7288 -22 -25.1134 6.7288 -20 -25.1134 8 -20 -24.6825
1 16 0 -20 0 0 0 26 0 -1 0 -26 0 0 48\1-24chrd.dat
1 16 0 -20 0 0 0 26 0 1 0 -26 0 0 48\1-24edge.dat
2 24 8 -20 -24.6825 6.7288 -20 -25.1134
1 16 0 -22 0 0 0 -26 0 2 0 -26 0 0 48\1-24cyli.dat
4 16 -6.7288 -20 -25.1134 -6.7288 -22 -25.1134 -9.9502 -22 -24.0214 -8 -20 -24.6825
1 16 0 -20 0 0 0 -26 0 -1 0 -26 0 0 48\1-24chrd.dat
1 16 0 -20 0 0 0 -26 0 1 0 -26 0 0 48\1-24edge.dat
2 24 -8 -20 -24.6825 -6.7288 -20 -25.1134
4 16 8 -20 -24.6825 -8 -20 -24.6825 -8 -20 -8 8 -20 -8
4 16 -8 -20 -24.6825 8 -20 -24.6825 6.7288 -20 -25.1134 -6.7288 -20 -25.1134
3 16 6.7288 -20 -25.1134 0 -20 -26 -6.7288 -20 -25.1134
1 16 0 -22 0 0 0 26 0 -1 0 26 0 0 48\1-24chrd.dat
1 16 0 -22 0 0 0 26 0 1 0 26 0 0 48\1-24edge.dat
2 24 8 -22 24.6825 6.7288 -22 25.1134
1 16 0 -22 0 0 0 -26 0 -1 0 26 0 0 48\1-24chrd.dat
1 16 0 -22 0 0 0 -26 0 1 0 26 0 0 48\1-24edge.dat
2 24 -8 -22 24.6825 -6.7288 -22 25.1134
4 16 -6 -22 6 -8 -22 24.6825 8 -22 24.6825 6 -22 6
4 16 6.7288 -22 25.1134 8 -22 24.6825 -8 -22 24.6825 -6.7288 -22 25.1134
3 16 0 -22 26 6.7288 -22 25.1134 -6.7288 -22 25.1134
1 16 0 -22 0 -6 0 0 0 -1 0 0 0 6 2-4ndis.dat
4 16 -6 -22 6 -6 -22 0 -8 -22 0 -8 -22 24.6825
1 16 -8 -21 12.34125 0 -1 0 0 0 1 -12.34125 0 0 rect2p.dat
4 16 8 -22 0 6 -22 0 6 -22 6 8 -22 24.6825
1 16 8 -21 12.34125 0 1 0 0 0 1 12.34125 0 0 rect2p.dat
3 16 30 -20 0 8 -20 -24.6825 8 -20 -8
3 16 30 -20 0 8 -20 -8 8 -20 0
3 16 30 -20 0 8 -20 0 8 -20 24.6825
3 16 -8 -20 -24.6825 -30 -20 0 -8 -20 -8
3 16 -8 -20 -8 -30 -20 0 -8 -20 0
3 16 -8 -20 0 -30 -20 0 -8 -20 24.6825
1 16 10 0 0 0 -1 0 0 0 1 -1 0 0 connhol3.dat
3 16 15 -20 -11.8793 15 -9 0 15 -20 11.8793
2 24 15 -20 -11.8793 15 -20 11.8793
1 16 2 0 0 0 -4 0 -10 0 0 0 0 -10 3-8cyli.dat
1 16 0 3.5355 -7.0355 0 0 -2 3.5355 0 0 -0.0355 -1 0 rect1.dat
0 BFC INVERTNEXT
1 16 2 0 0 0 -4 0 0 0 -7 7 0 0 2-4cylo.dat
1 16 2 0 0 0 -4 0 -10 0 0 0 0 10 3-8cyli.dat
1 16 0 3.5355 7.0355 0 0 2 3.5355 0 0 0.0355 1 0 rect1.dat
3 16 11 -20 11.8793 11 -10 0 11 -20 -11.8793
2 24 11 -20 -11.8793 11 -20 11.8793
1 16 -10 0 0 0 1 0 0 0 1 -1 0 0 connhol3.dat
3 16 -11 -10 0 -11 -20 11.8793 -11 -20 -11.8793
2 24 -11 -20 -11.8793 -11 -20 11.8793
3 16 -15 -20 11.8793 -15 -9 0 -15 -20 -11.8793
2 24 -15 -20 11.8793 -15 -20 -11.8793

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None
