Official File parts/80431.dat
Part Attributes:
File Header:

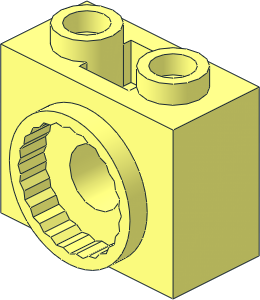

0 Technic Brick 1 x 2 x 1.333 with Hole and Rotation Joint Socket
0 Name: 80431.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
Show contents
0 // Bottom
1 16 0 32 0 0 0 20 0 1 0 -10 0 0 recte4.dat
1 16 0 32 0 0 0 16 0 1 0 -6 0 0 recte4.dat
4 16 -20 32 10 -16 32 6 -16 32 -6 -20 32 -10
4 16 20 32 -10 -20 32 -10 -16 32 -6 16 32 -6
4 16 20 32 10 20 32 -10 16 32 -6 16 32 6
4 16 -20 32 10 20 32 10 16 32 6 -16 32 6
0 // Bottom Cavity
1 16 0 18 -6 10 0 0 0 0 10 0 12 0 2-4cylo.dat
1 16 0 18 6 10 0 0 0 0 10 0 1 0 2-4ndis.dat
1 16 0 18 -6 10 0 0 0 0 10 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -13 18 0 0 -3 0 0 0 -14 6 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 13 18 0 0 3 0 0 0 -14 6 0 0 box2-7.dat
1 16 -10 11 0 0 1 0 0 0 -7 -6 0 0 rect3.dat
1 16 10 11 0 0 -1 0 0 0 -7 6 0 0 rect3.dat
3 16 -16 32 -6 -10 28 -6 0 28 -6
4 16 10 28 -6 16 32 -6 -16 32 -6 0 28 -6
3 16 -16 4 -6 -10 4 -6 -10 18 -6
3 16 10 4 -6 16 4 -6 10 18 -6
3 16 10 4 6 10 18 6 16 4 6
3 16 -10 18 6 -10 4 6 -16 4 6
4 16 10 28 6 0 28 6 -16 32 6 16 32 6
3 16 -16 32 6 0 28 6 -10 28 6
4 16 -16 4 6 -16 32 6 -10 28 6 -10 18 6
4 16 16 4 6 10 18 6 10 28 6 16 32 6
4 16 16 4 -6 16 32 -6 10 28 -6 10 18 -6
4 16 -16 4 -6 -10 18 -6 -10 28 -6 -16 32 -6
1 16 0 27 0 0 0 1 0 -1.25 0 -1 0 0 stud3a.dat
2 24 3.827 27.239 -.87 3.6956 27.2651 -1.5308
2 24 3.827 27.239 .87 3.6956 27.2651 1.5308
2 24 -4 27.1234 0 -3.827 27.239 .87
2 24 -3.6956 27.2651 1.5308 -3.827 27.239 .87
2 24 3.827 27.239 -.87 4 27.1234 0
2 24 4 27.1234 0 3.827 27.239 .87
2 24 -3.827 27.239 -.87 -4 27.1234 0
2 24 -3.827 27.239 -.87 -3.6956 27.2651 -1.5308
2 24 1.5308 27.6956 -3.6956 2.8284 27.4376 -2.8284
2 24 2.8284 27.4376 -2.8284 3.6956 27.2651 -1.5308
2 24 2.8284 27.4376 2.8284 3.6956 27.2651 1.5308
2 24 2.8284 27.4376 2.8284 1.5308 27.6956 3.6956
2 24 -2.8284 27.4376 2.8284 -1.5308 27.6956 3.6956
2 24 -2.8284 27.4376 2.8284 -3.6956 27.2651 1.5308
2 24 -2.8284 27.4376 -2.8284 -3.6956 27.2651 -1.5308
2 24 -1.5308 27.6956 -3.6956 -2.8284 27.4376 -2.8284
1 16 0 27.6956 -4.8478 0 0 1.5308 0 3.8044 0 1.1522 0 0 box3u2p.dat
2 24 0 31.5 -4 -1.5308 31.5 -3.6956
2 24 0 31.5 -4 1.5308 31.5 -3.6956
1 16 0 27.6956 4.8478 0 0 1.5308 0 3.8044 0 1.1522 0 0 box3u2p.dat
2 24 0 31.5 4 -1.5308 31.5 3.6956
2 24 0 31.5 4 1.5308 31.5 3.6956
0 // Rotation Joint
4 16 -14 32 -10 -14 18 -10 -20 0 -10 -20 32 -10
3 16 -20 0 -10 -14 18 -10 -14 4 -10
4 16 20 0 -10 -20 0 -10 -14 4 -10 0 4 -10
3 16 20 0 -10 0 4 -10 14 4 -10
4 16 14 4 -10 14 18 -10 20 32 -10 20 0 -10
3 16 20 32 -10 14 18 -10 14 32 -10
1 16 0 18 -10 14 0 0 0 0 14 0 1 0 48\4-4ndis.dat
1 16 0 18 -14 14 0 0 0 0 14 0 4 0 48\4-4cylo.dat
1 16 0 18 -14 0 0 14 -14 0 0 0 1 0 48\4-4aring.dat
3 16 0 6 -14 1.566 6.103 -14 0 4 -14
4 16 5.3578 5.0654 -14 0 4 -14 1.566 6.103 -14 3.106 6.409 -14
3 16 3.106 6.409 -14 4.592 6.913 -14 5.3578 5.0654 -14
3 16 5.3578 5.0654 -14 4.592 6.913 -14 6 7.608 -14
4 16 7.306 8.479 -14 9.8994 8.1006 -14 5.3578 5.0654 -14 6 7.608 -14
3 16 7.306 8.479 -14 8.485 9.515 -14 9.8994 8.1006 -14
3 16 9.8994 8.1006 -14 8.485 9.515 -14 9.521 10.694 -14
4 16 12.9346 12.6422 -14 9.8994 8.1006 -14 9.521 10.694 -14 10.392 12 -14
3 16 12.9346 12.6422 -14 10.392 12 -14 11.087 13.408 -14
3 16 12.9346 12.6422 -14 11.087 13.408 -14 11.591 14.894 -14
4 16 11.591 14.894 -14 11.897 16.434 -14 14 18 -14 12.9346 12.6422 -14
3 16 14 18 -14 11.897 16.434 -14 12 18 -14
3 16 -1.566 6.103 -14 0 6 -14 0 4 -14
4 16 -1.566 6.103 -14 0 4 -14 -5.3578 5.0654 -14 -3.106 6.409 -14
3 16 -4.592 6.913 -14 -3.106 6.409 -14 -5.3578 5.0654 -14
3 16 -4.592 6.913 -14 -5.3578 5.0654 -14 -6 7.608 -14
4 16 -5.3578 5.0654 -14 -9.8994 8.1006 -14 -7.306 8.479 -14 -6 7.608 -14
3 16 -8.485 9.515 -14 -7.306 8.479 -14 -9.8994 8.1006 -14
3 16 -8.485 9.515 -14 -9.8994 8.1006 -14 -9.521 10.694 -14
4 16 -9.521 10.694 -14 -9.8994 8.1006 -14 -12.9346 12.6422 -14 -10.392 12 -14
3 16 -10.392 12 -14 -12.9346 12.6422 -14 -11.087 13.408 -14
3 16 -11.087 13.408 -14 -12.9346 12.6422 -14 -11.591 14.894 -14
4 16 -14 18 -14 -11.897 16.434 -14 -11.591 14.894 -14 -12.9346 12.6422 -14
3 16 -11.897 16.434 -14 -14 18 -14 -12 18 -14
3 16 1.566 29.897 -14 0 30 -14 0 32 -14
4 16 1.566 29.897 -14 0 32 -14 5.3578 30.9346 -14 3.106 29.591 -14
3 16 4.592 29.087 -14 3.106 29.591 -14 5.3578 30.9346 -14
3 16 4.592 29.087 -14 5.3578 30.9346 -14 6 28.392 -14
4 16 5.3578 30.9346 -14 9.8994 27.8994 -14 7.306 27.521 -14 6 28.392 -14
3 16 8.485 26.485 -14 7.306 27.521 -14 9.8994 27.8994 -14
3 16 8.485 26.485 -14 9.8994 27.8994 -14 9.521 25.306 -14
4 16 9.521 25.306 -14 9.8994 27.8994 -14 12.9346 23.3578 -14 10.392 24 -14
3 16 10.392 24 -14 12.9346 23.3578 -14 11.087 22.592 -14
3 16 11.087 22.592 -14 12.9346 23.3578 -14 11.591 21.106 -14
4 16 14 18 -14 11.897 19.566 -14 11.591 21.106 -14 12.9346 23.3578 -14
3 16 11.897 19.566 -14 14 18 -14 12 18 -14
3 16 0 30 -14 -1.566 29.897 -14 0 32 -14
4 16 -5.3578 30.9346 -14 0 32 -14 -1.566 29.897 -14 -3.106 29.591 -14
3 16 -3.106 29.591 -14 -4.592 29.087 -14 -5.3578 30.9346 -14
3 16 -5.3578 30.9346 -14 -4.592 29.087 -14 -6 28.392 -14
4 16 -7.306 27.521 -14 -9.8994 27.8994 -14 -5.3578 30.9346 -14 -6 28.392 -14
3 16 -7.306 27.521 -14 -8.485 26.485 -14 -9.8994 27.8994 -14
3 16 -9.8994 27.8994 -14 -8.485 26.485 -14 -9.521 25.306 -14
4 16 -12.9346 23.3578 -14 -9.8994 27.8994 -14 -9.521 25.306 -14 -10.392 24 -14
3 16 -12.9346 23.3578 -14 -10.392 24 -14 -11.087 22.592 -14
3 16 -12.9346 23.3578 -14 -11.087 22.592 -14 -11.591 21.106 -14
4 16 -11.591 21.106 -14 -11.897 19.566 -14 -14 18 -14 -12.9346 23.3578 -14
3 16 -14 18 -14 -11.897 19.566 -14 -12 18 -14
1 16 0 18 -8 1 0 0 0 0 -1 0 6 0 48\4-4crh2.dat
1 16 0 18 -8 0 0 12 -12 0 0 0 1 0 48\4-4aring.dat
1 16 0 18 -8 0 0 6 -6 0 0 0 1 0 4-4ring1.dat
1 16 0 18 0 0 0 1 -1 0 0 0 -1 0 connhol3.dat
1 16 0 18 10 9 0 0 0 0 9 0 -1 0 4-4ndis.dat
4 16 -20 0 10 20 0 10 9 9 10 0 9 10
3 16 -20 0 10 0 9 10 -9 9 10
4 16 -20 32 10 -20 0 10 -9 9 10 -9 18 10
3 16 -20 32 10 -9 18 10 -9 27 10
3 16 -20 32 10 -9 27 10 0 27 10
4 16 20 32 10 -20 32 10 0 27 10 9 27 10
3 16 20 32 10 9 27 10 9 18 10
4 16 9 18 10 9 9 10 20 0 10 20 32 10
1 16 -20 16 0 0 1 0 0 0 -16 -10 0 0 rect3.dat
1 16 20 16 0 0 -1 0 0 0 -16 10 0 0 rect3.dat
0 // Top Cavity and Studs
4 16 -5.7574 0 6 5.7574 0 6 20 0 10 -20 0 10
4 16 5.7574 0 -6 -5.7574 0 -6 -20 0 -10 20 0 -10
4 16 5.7574 0 6 5.7574 0 -6 20 0 -10 20 0 10
4 16 -20 0 -10 -5.7574 0 -6 -5.7574 0 6 -20 0 10
2 24 -20 0 10 20 0 10
2 24 -20 0 -10 20 0 -10
0 BFC INVERTNEXT
1 16 0 4 4.2426 5.7574 0 0 0 0 4 0 1.7574 0 box4-2p.dat
0 BFC INVERTNEXT
1 16 0 4 -4.2426 5.7574 0 0 0 0 4 0 -1.7574 0 box4-2p.dat
4 16 -5.7574 8 -4.2426 5.7574 8 -4.2426 5.7574 8 4.2426 -5.7574 8 4.2426
1 16 -10 0 0 6 0 0 0 8 0 0 0 6 1-8cyli.dat
1 16 -10 0 0 6 0 0 0 8 0 0 0 -6 1-8cyli.dat
1 16 -10 8 0 6 0 0 0 1 0 0 0 6 1-8edge.dat
1 16 -10 8 0 6 0 0 0 1 0 0 0 -6 1-8edge.dat
1 16 -10 0 0 -6 0 0 0 1 0 0 0 6 3-8edge.dat
1 16 -10 0 0 -6 0 0 0 1 0 0 0 -6 3-8edge.dat
1 16 -10 0 0 -4 0 0 0 1 0 0 0 -4 4-4edge.dat
1 16 10 0 0 -6 0 0 0 8 0 0 0 6 1-8cyli.dat
1 16 10 0 0 -6 0 0 0 8 0 0 0 -6 1-8cyli.dat
1 16 10 8 0 -6 0 0 0 1 0 0 0 6 1-8edge.dat
1 16 10 8 0 -6 0 0 0 1 0 0 0 -6 1-8edge.dat
1 16 10 0 0 6 0 0 0 1 0 0 0 6 3-8edge.dat
1 16 10 0 0 6 0 0 0 1 0 0 0 -6 3-8edge.dat
1 16 10 0 0 -4 0 0 0 1 0 0 0 -4 4-4edge.dat
1 16 10 0 0 0 0 1 0 1 0 -1 0 0 stud2a.dat
1 16 -10 0 0 0 0 1 0 1 0 -1 0 0 stud2a.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
