Official File parts/189.dat
Part Attributes:
File Header:

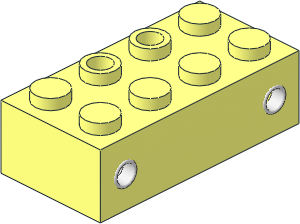

0 ~Electric Train 4.5V On/Off Switch Brick 2 x 4 (Needs Work)
0 Name: 189.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2011-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2011-12-11 [Steffen] Changed color 383 to 494
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
Show contents
0 // inner details missing
2 24 20 0 40 -20 0 40
2 24 20 0 -40 -20 0 -40
2 24 -20 0 40 -20 0 -40
2 24 20 0 40 20 0 -40
2 24 20 24 40 -20 24 40
2 24 20 24 -40 -20 24 -40
2 24 -20 24 40 -20 24 -40
2 24 20 24 40 20 24 -40
2 24 20 0 -40 20 24 -40
2 24 -20 0 -40 -20 24 -40
2 24 -20 0 40 -20 24 40
2 24 20 0 40 20 24 40
2 24 16 24 36 16 24 -36
2 24 -16 24 36 -16 24 -36
4 16 -16 24 36 -16 24 -36 -20 24 -40 -20 24 40
4 16 20 24 40 20 24 -40 16 24 -36 16 24 36
4 16 -16 24 -36 16 24 -36 20 24 -40 -20 24 -40
4 16 -20 24 40 20 24 40 16 24 36 -16 24 36
2 24 -16 4 36 -16 4 -36
2 24 16 4 36 16 4 -36
4 16 -16 4 36 -16 4 -36 -16 24 -36 -16 24 36
4 16 -20 24 40 -20 24 -40 -20 0 -40 -20 0 40
2 24 -16 4 -36 16 4 -36
2 24 -16 4 36 16 4 36
4 16 -16 24 36 16 24 36 16 4 36 -16 4 36
4 16 -16 4 -36 16 4 -36 16 24 -36 -16 24 -36
4 16 -20 24 -40 20 24 -40 20 0 -40 -20 0 -40
4 16 -20 0 40 20 0 40 20 24 40 -20 24 40
2 24 -16 24 -36 16 24 -36
2 24 -16 24 36 16 24 36
2 24 16 4 36 16 24 36
2 24 -16 4 36 -16 24 36
2 24 16 4 -36 16 24 -36
2 24 -16 4 -36 -16 24 -36
1 16 -10 0 30 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 10 0 30 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 10 0 10 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 10 0 -10 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 10 0 -30 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 -10 0 -30 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 -10 0 -10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 0 -10 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -10 0 -10 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -10 4 -10 4 0 0 0 1 0 0 0 4 4-4edge.dat
0 BFC INVERTNEXT
1 16 -10 4 -10 4 0 0 0 -4 0 0 0 -4 4-4cyli.dat
1 16 -10 4 -10 4 0 0 0 -1 0 0 0 -4 4-4ndis.dat
1 16 -10 0 10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 0 10 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -10 0 10 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -10 4 10 4 0 0 0 1 0 0 0 4 4-4edge.dat
0 BFC INVERTNEXT
1 16 -10 4 10 4 0 0 0 -4 0 0 0 -4 4-4cyli.dat
1 16 -10 4 10 4 0 0 0 -1 0 0 0 -4 4-4ndis.dat
4 16 20 0 40 -20 0 40 -16 0 16 -4 0 16
4 16 -6 4 14 -14 4 14 -16 4 36 16 4 36
4 16 -4 0 -16 -16 0 -16 -20 0 -40 20 0 -40
4 16 16 4 -36 -16 4 -36 -14 4 -14 -6 4 -14
4 16 -4 0 16 -4 0 4 20 0 4 20 0 40
4 16 16 4 36 16 4 4 -6 4 6 -6 4 14
4 16 -20 0 40 -20 0 4 -16 0 4 -16 0 16
4 16 -16 0 -16 -16 0 -4 -20 0 -4 -20 0 -40
4 16 -16 0 -4 -16 0 4 -20 0 4 -20 0 -4
4 16 -4 0 -4 -4 0 4 -16 0 4 -16 0 -4
4 16 -14 4 -6 -14 4 6 -6 4 6 -6 4 -6
4 16 -16 4 -36 -16 4 36 -14 4 14 -14 4 -14
4 16 20 0 -4 20 0 4 -4 0 4 -4 0 -4
4 16 -6 4 -6 -6 4 6 16 4 4 16 4 -4
4 16 20 0 -40 20 0 -4 -4 0 -4 -4 0 -16
4 16 -6 4 -14 -6 4 -6 16 4 -4 16 4 -36
1 494 20 12 30 0 1 0 0 0 1 1 0 0 s\265s01.dat
1 494 20 12 -30 0 1 0 0 0 1 1 0 0 s\265s01.dat
1 16 20 12 30 0 -4 0 0 0 4 -4 0 0 4-4ndis.dat
1 16 16 12 30 0 4 0 0 0 4 4 0 0 4-4ndis.dat
1 16 20 12 -30 0 -4 0 0 0 4 -4 0 0 4-4ndis.dat
1 16 16 12 -30 0 4 0 0 0 4 4 0 0 4-4ndis.dat
4 16 16 4 -36 16 4 36 16 8 26 16 8 -26
4 16 20 8 -26 20 8 26 20 0 40 20 0 -40
4 16 16 24 36 16 24 -36 16 16 -26 16 16 26
4 16 20 16 26 20 16 -26 20 24 -40 20 24 40
4 16 16 16 26 16 16 -26 16 8 -26 16 8 26
4 16 20 8 26 20 8 -26 20 16 -26 20 16 26
4 16 16 4 -36 16 8 -34 16 16 -34 16 24 -36
4 16 20 24 -40 20 16 -34 20 8 -34 20 0 -40
4 16 16 24 36 16 16 34 16 8 34 16 4 36
4 16 20 0 40 20 8 34 20 16 34 20 24 40
3 16 16 16 26 16 16 34 16 24 36
3 16 20 24 40 20 16 34 20 16 26
3 16 16 24 -36 16 16 -34 16 16 -26
3 16 20 16 -26 20 16 -34 20 24 -40
3 16 16 4 36 16 8 34 16 8 26
3 16 20 8 26 20 8 34 20 0 40
3 16 16 8 -26 16 8 -34 16 4 -36
3 16 20 0 -40 20 8 -34 20 8 -26
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Michael Heidemann
Licensed under CC BY 4.0
