File Detail parts/84747.dat

Official File parts/84747.dat

Part Attributes:

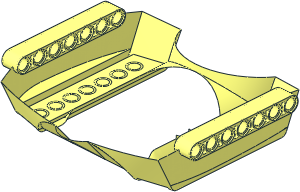

~Electric Power Functions IR Handset Increm. Bottom (Needs Work)

File Header:

0 ~Electric Power Functions IR Handset Increm. Bottom (Needs Work)
0 Name: 84747.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2012-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS remote, remote control

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01

Show contents

0 // Needs work: Screw holes not modelled
0 // Needs work: Inner surface not modelled

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\84747s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\84747s01.dat
5 24 0 23.994 7.964 0 31.975 7.977 -8.475 24.078 8.549 8.475 24.078 8.549
4 16 -51.52 49.722 -68 -56.241 54.654 -68 -56.241 54.654 -52 -51.52 49.722 -52
4 16 -56.241 54.654 -68 -60.002 59.975 -68 -60.002 59.975 -52 -56.241 54.654 -52
2 24 -51.52 49.722 -52 -51.52 49.722 -68
5 24 -56.241 54.654 -52 -56.241 54.654 -68 -60.002 59.975 -52 -51.52 49.722 -52
1 16 51.52 46 -60 0 0 8 0 1 0 -8 0 0 2-4edge.dat
5 24 56.241 54.654 -66.282 56.241 54.654 -68 60.002 59.975 -52 51.52 49.722 -52
5 24 56.241 54.654 -52 56.241 54.654 -53.718 60.002 59.975 -52 51.52 49.722 -52
3 16 54.582 52.921 -67.391 56.241 54.654 -66.282 56.241 54.654 -68
3 16 56.241 54.654 -68 51.52 49.722 -68 54.582 52.921 -67.391
3 16 54.582 52.921 -52.609 51.52 49.722 -52 56.241 54.654 -52
3 16 56.241 54.654 -52 56.241 54.654 -53.718 54.582 52.921 -52.609
3 16 60.002 59.975 -52 60.002 59.975 -68 59.52 59.294 -60
4 16 57.177 55.979 -65.657 60.002 59.975 -68 56.241 54.654 -68 56.241 54.654 -66.282
3 16 58.911 58.432 -63.062 59.52 59.294 -60 60.002 59.975 -68
3 16 57.177 55.979 -65.657 58.911 58.432 -63.062 60.002 59.975 -68
4 16 57.177 55.979 -54.343 56.241 54.654 -53.718 56.241 54.654 -52 60.002 59.975 -52
3 16 58.911 58.432 -56.938 57.177 55.979 -54.343 60.002 59.975 -52
3 16 60.002 59.975 -52 59.52 59.294 -60 58.911 58.432 -56.938
2 24 51.52 49.722 -68 51.52 46 -68
2 24 51.52 49.722 -68 54.582 52.921 -67.391
2 24 54.582 52.921 -67.391 56.241 54.654 -66.282
2 24 54.582 52.921 -52.609 56.241 54.654 -53.718
2 24 51.52 49.722 -52 54.582 52.921 -52.609
2 24 56.241 54.654 -66.282 57.177 55.979 -65.657
2 24 58.911 58.432 -63.062 57.177 55.979 -65.657
2 24 59.52 59.294 -60 58.911 58.432 -63.062
2 24 58.911 58.432 -56.938 59.52 59.294 -60
2 24 57.177 55.979 -54.343 58.911 58.432 -56.938
2 24 56.241 54.654 -53.718 57.177 55.979 -54.343
2 24 51.52 49.722 -52 51.52 46 -52
5 24 51.52 49.722 -68 51.52 46 -68 48.206 61 -68 54.582 61 -67.391
5 24 54.582 52.921 -67.391 54.582 46 -67.391 51.52 61 -68 57.177 61 -65.657
5 24 57.177 55.979 -65.657 57.177 46 -65.657 54.582 61 -67.391 58.911 61 -63.062
5 24 58.911 58.432 -63.062 58.911 46 -63.062 57.177 61 -65.657 59.52 61 -60
5 24 59.52 59.294 -60 59.52 46 -60 58.911 61 -63.062 58.911 61 -56.938
5 24 58.911 58.432 -56.938 58.911 46 -56.938 59.52 61 -60 57.177 61 -54.343
5 24 57.177 55.979 -54.343 57.177 46 -54.343 58.911 61 -56.938 54.582 61 -52.609
5 24 54.582 52.921 -52.609 54.582 46 -52.609 57.177 61 -54.343 51.52 61 -52
5 24 51.52 49.722 -52 51.52 46 -52 54.582 61 -52.609 48.206 61 -52
4 16 54.582 52.921 -67.391 51.52 49.722 -68 51.52 46 -68 54.582 46 -67.391
4 16 56.241 54.654 -66.282 54.582 52.921 -67.391 54.582 46 -67.391 57.177 46 -65.657
3 16 57.177 46 -65.657 57.177 55.979 -65.657 56.241 54.654 -66.282
4 16 58.911 58.432 -63.062 57.177 55.979 -65.657 57.177 46 -65.657 58.911 46 -63.062
4 16 59.52 59.294 -60 58.911 58.432 -63.062 58.911 46 -63.062 59.52 46 -60
4 16 58.911 58.432 -56.938 59.52 59.294 -60 59.52 46 -60 58.911 46 -56.938
4 16 58.911 46 -56.938 57.177 46 -54.343 57.177 55.979 -54.343 58.911 58.432 -56.938
4 16 56.241 54.654 -53.718 57.177 55.979 -54.343 57.177 46 -54.343 54.582 46 -52.609
3 16 54.582 46 -52.609 54.582 52.921 -52.609 56.241 54.654 -53.718
4 16 51.52 49.722 -52 54.582 52.921 -52.609 54.582 46 -52.609 51.52 46 -52

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None
