Official File parts/85080.dat
Part Attributes:
File Header:

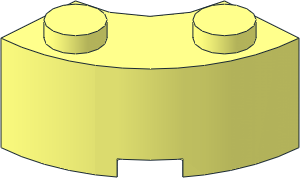

0 Brick 2 x 2 Corner Round w Stud Notch and Reinforced Underside
0 Name: 85080.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS macaroni
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
