Official File parts/861.dat
Part Attributes:
File Header:

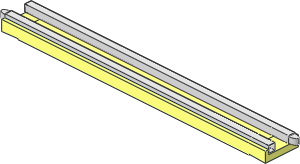

0 Train Track 12V Straight Insert Type 1
0 Name: 861.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP The underside is designed by LEGO in a way which does *not* fit onto
0 !HELP a plate (sadly): the two center rims prevent that.
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 3242c, Rebrickable 3242c
0 !CMDLINE -c1
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 -160 0 0 1 0 0 0 1 0 0 0 1 s\861s01.dat
1 16 160 0 0 -1 0 0 0 1 0 0 0 -1 s\861s01.dat
1 16 0 0 0 28 0 0 0 1 0 0 0 1 s\3241s04.dat
1 16 -6 12 0 0 0 2 0 4 0 16 0 0 box3u4p.dat
1 16 -82 12 0 0 0 2 0 4 0 16 0 0 box3u4p.dat
1 16 6 12 0 0 0 2 0 4 0 16 0 0 box3u4p.dat
1 16 82 12 0 0 0 2 0 4 0 16 0 0 box3u4p.dat
2 24 -8 13 -2 -8 13 2
2 24 -8 13 2 -8 12 2
2 24 -8 13 -2 -8 12 -2
2 24 -4 13 -2 -4 13 2
2 24 -4 13 2 -4 12 2
2 24 -4 13 -2 -4 12 -2
2 24 4 13 -2 4 13 2
2 24 4 13 2 4 12 2
2 24 4 13 -2 4 12 -2
2 24 8 13 -2 8 13 2
2 24 8 13 2 8 12 2
2 24 8 13 -2 8 12 -2
2 24 84 13 -2 84 13 2
2 24 84 13 2 84 12 2
2 24 84 13 -2 84 12 -2
2 24 80 13 -2 80 13 2
2 24 80 13 2 80 12 2
2 24 80 13 -2 80 12 -2
2 24 -80 13 2 -80 13 -2
2 24 -80 13 -2 -80 12 -2
2 24 -80 13 2 -80 12 2
2 24 -84 13 2 -84 13 -2
2 24 -84 13 -2 -84 12 -2
2 24 -84 13 2 -84 12 2
1 494 60 12 -9 1 0 0 0 1 0 0 0 1 s\3241s08.dat
1 494 -120 12 9 -1 0 0 0 1 0 0 0 -1 s\3241s08.dat
1 494 -60 12 9 -1 0 0 0 1 0 0 0 -1 s\3241s08.dat
1 494 60 12 9 -1 0 0 0 1 0 0 0 -1 s\3241s08.dat
1 494 120 12 9 -1 0 0 0 1 0 0 0 -1 s\3241s08.dat
1 494 120 12 -9 1 0 0 0 1 0 0 0 1 s\3241s08.dat
1 494 -60 12 -9 1 0 0 0 1 0 0 0 1 s\3241s08.dat
1 494 -120 12 -9 1 0 0 0 1 0 0 0 1 s\3241s08.dat
