Official File parts/89519.dat
Part Attributes:
File Header:

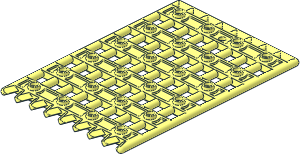

0 Bar Grille 9 x 13 with Studs and Tips
0 Name: 89519.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Castle, Chima, Gate, Portcullis
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-11-04 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
0 // Subparts
1 16 0 0 100 1 0 0 0 1 0 0 0 1 s\89519s02.dat
1 16 0 0 80 1 0 0 0 1 0 0 0 1 s\89519s01.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 s\89519s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\89519s01.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\89519s01.dat
1 16 0 0 -80 1 0 0 0 1 0 0 0 1 s\89519s01.dat
1 16 -80 0 -110 1 0 0 0 1 0 0 0 1 s\11216s04.dat
1 16 -60 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 -40 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 -20 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 0 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 20 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 40 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 60 0 -110 1 0 0 0 1 0 0 0 1 s\11216s03.dat
1 16 80 0 -110 -1 0 0 0 1 0 0 0 1 s\11216s04.dat
0 // Primitives
1 16 80 0 90 0 0 -4 4 0 0 0 -20 0 2-4cylo.dat
1 16 80 0 50 0 0 -4 4 0 0 0 -20 0 2-4cylo.dat
1 16 80 0 10 0 0 -4 4 0 0 0 -20 0 2-4cylo.dat
1 16 80 0 -30 0 0 -4 4 0 0 0 -20 0 2-4cylo.dat
1 16 80 0 -70 0 0 -4 4 0 0 0 -20 0 2-4cylo.dat
1 16 0 0 110 80 0 0 0 0 4 0 -1 0 rect2p.dat
1 16 0 0 90 80 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 50 80 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 10 80 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 -30 80 0 0 0 0 4 0 1 0 rect2p.dat
1 16 0 0 -70 80 0 0 0 0 4 0 1 0 rect2p.dat
0 // Hole
0 // Primitives
1 16 0 2 100 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 2 100 4 0 0 0 -4 0 0 0 4 4-4cylo.dat
1 16 0 -2 100 4 0 0 0 1 0 0 0 4 4-4ndis.dat
1 16 0 3 107 10 0 0 0 0 1 0 1 0 rect2p.dat
1 16 0 -3 107 10 0 0 0 0 1 0 1 0 rect2p.dat
1 16 0 3 93 10 0 0 0 0 1 0 -1 0 rect2p.dat
1 16 0 -3 93 10 0 0 0 0 1 0 -1 0 rect2p.dat
0 // Faces
3 16 -10 2 107 0 2 104 -4 2 104
4 16 -10 2 107 10 2 107 4 2 104 0 2 104
4 16 -10 2 93 -10 2 107 -4 2 104 -4 2 100
3 16 10 2 107 4 2 100 4 2 104
4 16 4 2 96 4 2 100 10 2 107 10 2 93
3 16 -10 2 93 -4 2 100 -4 2 96
4 16 -4 2 96 0 2 96 10 2 93 -10 2 93
3 16 10 2 93 0 2 96 4 2 96
3 16 -10 -2 107 -4 -2 104 0 -2 104
4 16 -10 -2 107 0 -2 104 4 -2 104 10 -2 107
3 16 10 -2 107 4 -2 104 4 -2 100
4 16 -4 -2 104 -10 -2 107 -10 -2 93 -4 -2 100
4 16 4 -2 96 10 -2 93 10 -2 107 4 -2 100
3 16 -10 -2 93 -4 -2 96 -4 -2 100
4 16 10 -2 93 0 -2 96 -4 -2 96 -10 -2 93
3 16 10 -2 93 4 -2 96 0 -2 96
0 // Upper bar
0 // Primitives
1 16 -80 0 120 0 160 0 -4 0 0 0 0 4 4-4cyli.dat
1 16 -80 0 120 0 0 4 4 0 0 0 -10 0 2-4cyli.dat
1 16 -60 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 -40 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 -20 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 0 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 20 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 40 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 60 0 120 0 0 4 4 0 0 0 -10 0 4-4cyli.dat
1 16 80 0 120 0 0 -4 4 0 0 0 -10 0 2-4cyli.dat
1 16 -60 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 -40 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 -20 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 20 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 40 0 110 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 80 0 110 0 0 -4 4 0 0 0 1 0 2-4edge.dat
1 16 -80 0 120 0 -4 0 4 0 0 0 0 4 2-8sphe.dat
1 16 80 0 120 0 4 0 4 0 0 0 0 4 2-8sphe.dat
1 16 -80 0 120 0 0 -4 4 0 0 0 -230 0 2-4cyli.dat
1 16 80 0 120 0 0 4 4 0 0 0 -230 0 2-4cyli.dat
1 16 -80 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 -60 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 -60 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 -40 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 -40 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 -20 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 -20 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 0 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 0 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 20 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 20 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 40 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 40 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 60 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
1 16 60 0 120 0 0 4 4 0 0 0 1 -4 2-4edge.dat
1 16 80 0 120 0 0 -4 4 0 0 0 1 -4 2-4edge.dat
0 // Base of the tips
4 16 -77 4 -110 -63 4 -110 -63 -4 -110 -77 -4 -110
4 16 -57 4 -110 -43 4 -110 -43 -4 -110 -57 -4 -110
4 16 -37 4 -110 -23 4 -110 -23 -4 -110 -37 -4 -110
4 16 -17 4 -110 -3 4 -110 -3 -4 -110 -17 -4 -110
4 16 3 4 -110 17 4 -110 17 -4 -110 3 -4 -110
4 16 23 4 -110 37 4 -110 37 -4 -110 23 -4 -110
4 16 43 4 -110 57 4 -110 57 -4 -110 43 -4 -110
4 16 63 4 -110 77 4 -110 77 -4 -110 63 -4 -110
0 // Edges
2 24 -77 4 -110 -63 4 -110
2 24 -77 -4 -110 -63 -4 -110
2 24 -57 4 -110 -43 4 -110
2 24 -57 -4 -110 -43 -4 -110
2 24 -37 4 -110 -23 4 -110
2 24 -37 -4 -110 -23 -4 -110
2 24 -17 4 -110 -3 4 -110
2 24 -17 -4 -110 -3 -4 -110
2 24 3 4 -110 17 4 -110
2 24 3 -4 -110 17 -4 -110
2 24 23 4 -110 37 4 -110
2 24 23 -4 -110 37 -4 -110
2 24 43 4 -110 57 4 -110
2 24 43 -4 -110 57 -4 -110
2 24 63 4 -110 77 4 -110
2 24 63 -4 -110 77 -4 -110
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
