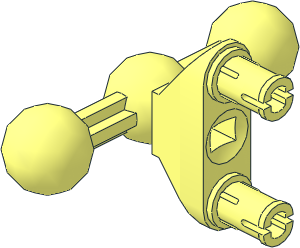

Technic Connector 3 x 1 with Two Pins and Three Ball Joints on Axle 5L

File Header:

0 Technic Connector  3 x  1 with Two Pins and Three Ball Joints on Axle  5L
0 Name: 90634.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Constraction

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-03-10 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05
