Official File parts/92409.dat
Part Attributes:
File Header:

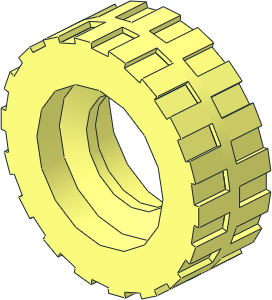

0 Tyre 6.4/ 75 x 8 Shallow Offset Tread with Centre Band
0 Name: 92409.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-12
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 244016
0 !HISTORY 2018-01-30 [PTadmin] Official Update 2018-01
0 !HISTORY 2025-02-20 [Blechtaler] subfiled Sidewall with ndis
0 !HISTORY 2025-11-30 [OrionP] Official Update 2025-11
0 !HISTORY 2025-12-25 [OrionP] Minor header edits
0 !HISTORY 2025-12-25 [OrionP] Official Update 2025-12
Show contents
0 // Nomenclature: width_(mm)/profile_as_%age_of_width x rim_diameter_(mm)
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .939693 .34202 0 -.34202 .939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .766044 .642788 0 -.642788 .766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .5 .866025 0 -.866025 .5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .173648 .984808 0 -.984808 .173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.173648 .984808 0 -.984808 -.173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.5 .866025 0 -.866025 -.5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.766044 .642788 0 -.642788 -.766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.939693 .34202 0 -.34202 -.939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.939693 -.34202 0 .34202 -.939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.766044 -.642788 0 .642788 -.766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.5 -.866025 0 .866025 -.5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.173648 -.984808 0 .984808 -.173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .173648 -.984808 0 .984808 .173648 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .5 -.866025 0 .866025 .5 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .766044 -.642788 0 .642788 .766044 0 0 0 1 s\92409s01.dat
1 16 0 0 0 .939693 -.34202 0 .34202 .939693 0 0 0 1 s\92409s01.dat
1 16 0 0 0 -.984808 .173648 0 .173648 .984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.984808 -.173648 0 -.173648 .984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.866025 -.5 0 -.5 .866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.642788 -.766044 0 -.766044 .642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.34202 -.939693 0 -.939693 .34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .34202 -.939693 0 -.939693 -.34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .642788 -.766044 0 -.766044 -.642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .866025 -.5 0 -.5 -.866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .984808 -.173648 0 -.173648 -.984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .984808 .173648 0 .173648 -.984808 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .866025 .5 0 .5 -.866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .642788 .766044 0 .766044 -.642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 .34202 .939693 0 .939693 -.34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.34202 .939693 0 .939693 .34202 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.642788 .766044 0 .766044 .642788 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 -.866025 .5 0 .5 .866025 0 0 0 -1 s\92409s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\92409s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\92409s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\92409s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\92409s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\92409s02.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 -1 s\92409s02.dat
0 BFC INVERTNEXT
1 16 0 0 8 14 0 0 0 0 14 0 -5 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 3 2 0 0 0 0 2 0 -1 0 4-4con6.dat
0 BFC INVERTNEXT
1 16 0 0 2 2 0 0 0 0 2 0 -1 0 4-4con5.dat
0 BFC INVERTNEXT
1 16 0 0 -1 -10 0 0 0 0 10 0 2 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -2 -2 0 0 0 0 2 0 1 0 4-4con5.dat
0 BFC INVERTNEXT
1 16 0 0 -3 -2 0 0 0 0 2 0 1 0 4-4con6.dat
0 BFC INVERTNEXT
1 16 0 0 -8 -14 0 0 0 0 14 0 5 0 4-4cylo.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler,
Orion Pobursky,
