File Detail parts/19086.dat

Official File parts/19086.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

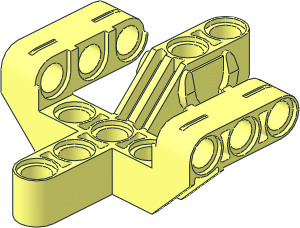

Constraction Block 5 x 6 x 2 Forked with 3 Fingers

File Header:

0 Constraction Block  5 x  6 x  2 Forked with 3 Fingers
0 Name: 19086.dat
0 Author: Kevin Roach [KROACH]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2022-07-08 [SwampKryakwa] Updated part to use new version of npeghol primitives
0 !HISTORY 2022-11-19 [Holly-Wood] Eliminated duplicated edges, fixed some T-junk
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03

Show contents

1 16 0 0 -40 1 0 0 0 1 0 0 0 1 beamhole.dat
1 16 0 -10 -40 -9 0 0 0 20 0 0 0 -9 2-4cylo.dat
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 connhol3.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connhol3.dat

1 16 0 -10 -10 -1 0 0 0 8 0 0 0 -1 npeghole.dat
1 16 0 -10 -20 9 0 0 0 1 0 0 0 9 1-8ndis.dat
1 16 0 -10 -20 -9 0 0 0 1 0 0 0 9 1-8ndis.dat
1 16 10 -10 0 0 0 -1 0 8 0 -1 0 0 npeghole.dat
1 16 -20 -10 0 0 0 9 0 1 0 9 0 0 1-8ndis.dat
1 16 -20 -10 0 0 0 9 0 1 0 -9 0 0 1-8ndis.dat
1 16 -10 -10 0 0 0 -1 0 8 0 -1 0 0 npeghole.dat
1 16 20 -10 0 0 0 -9 0 1 0 9 0 0 1-8ndis.dat
1 16 20 -10 0 0 0 -9 0 1 0 -9 0 0 1-8ndis.dat

1 16 10 10 0 0 0 -1 0 -8 0 -1 0 0 npeghole.dat
1 16 -20 10 0 0 0 9 0 -1 0 9 0 0 1-8ndis.dat
1 16 -20 10 0 0 0 9 0 -1 0 -9 0 0 1-8ndis.dat
1 16 -10 10 0 0 0 -1 0 -8 0 -1 0 0 npeghole.dat
1 16 20 10 0 0 0 -9 0 -1 0 9 0 0 1-8ndis.dat
1 16 20 10 0 0 0 -9 0 -1 0 -9 0 0 1-8ndis.dat

1 16 0 -10 0 0 0 1 0 10.5 0 1 0 0 npeghol15b.dat
1 16 0 -10 0 0 0 -1 0 10.5 0 1 0 0 npeghol15b.dat
1 16 0 10 0 1 0 0 0 -8 0 0 0 1 npeghol6d.dat
1 16 0 10 0 -1 0 0 0 -8 0 0 0 1 npeghol6d.dat

1 16 0 10 0 .383 0 .924 0 -1 0 -.924 0 .383 7-8ring8.dat
1 16 0 8 0 -.383 0 .924 0 -1 0 -.924 0 -.383 1-8ring8.dat
0 BFC INVERTNEXT
1 16 0 10 0 3.061 0 7.391 0 -2 0 -7.391 0 3.061 7-8cylo.dat
1 16 0 8 0 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
1 16 0 10 -20 -.383 0 -.924 0 -1 0 .924 0 -.383 7-8ring8.dat
1 16 0 8 -20 .383 0 -.924 0 -1 0 .924 0 .383 1-8ring8.dat
0 BFC INVERTNEXT
1 16 0 10 -20 -3.061 0 -7.391 0 -2 0 7.391 0 -3.061 7-8cylo.dat
1 16 0 8 -20 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
1 16 0 10 -20 9 0 0 0 -1 0 0 0 9 1-8ndis.dat
1 16 0 10 -20 -9 0 0 0 -1 0 0 0 9 1-8ndis.dat
4 16 -9 10 -11 -6.364 10 -11.772 -5.247 10 -12.889 -6.364 10 -13.636
4 16 6.364 10 -13.636 5.247 10 -12.889 6.364 10 -11.772 9 10 -11
4 16 -9 10 -11 -9 10 -9 -6.364 10 -8.228 -6.364 10 -11.772
4 16 6.364 10 -11.772 6.364 10 -8.228 9 10 -9 9 10 -11
4 16 -9 10 -9 -6.364 10 -6.364 -5.247 10 -7.11 -6.364 10 -8.228
4 16 6.364 10 -8.228 5.247 10 -7.11 6.364 10 -6.364 9 10 -9
4 16 -5.247 8 -7.11 -5.247 8 -12.889 -6.364 8 -11.772 -6.364 8 -8.228
4 16 -3.444 8 -8.315 -3.444 8 -11.685 -5.247 8 -12.889 -5.247 8 -7.11
4 16 0 8 -9 0 8 -11 -2.272 8 -11.452 -2.272 8 -8.548
4 16 6.364 8 -8.228 6.364 8 -11.772 5.247 8 -12.889 5.247 8 -7.11
4 16 5.247 8 -7.11 5.247 8 -12.889 3.444 8 -11.685 3.444 8 -8.315
4 16 3.444 8 -8.315 3.444 8 -11.685 2.272 8 -11.452 2.272 8 -8.548
1 16 -4.3455 9 -7.7125 0 0 -.9015 -1 0 0 0 1 .6025 rect3.dat
1 16 -5.8055 9 -7.669 0 -1 -.5585 -1 0 0 0 0 -.559 rect3.dat
1 16 -6.364 9 -10 0 -1 0 -1 0 0 0 0 -1.772 rect3.dat
1 16 -5.8055 9 -12.3305 0 0 .5585 -1 0 0 0 -1 -.5585 rect3.dat
1 16 -4.3455 9 -12.287 .9015 0 0 0 0 1 .602 -1 0 rect2p.dat
5 24 -3.444 10 -8.315 -3.444 8 -8.315 -5.247 10 -7.11 0 10 -9
5 24 -3.444 10 -11.685 -3.444 8 -11.685 -5.247 10 -12.889 0 10 -11
1 16 4.3455 9 -7.7125 0 0 .9015 1 0 0 0 1 .6025 rect3.dat
1 16 5.8055 9 -7.669 0 1 .5585 1 0 0 0 0 -.559 rect3.dat
1 16 6.364 9 -10 0 1 0 1 0 0 0 0 -1.772 rect3.dat
1 16 5.8055 9 -12.3305 0 0 -.5585 1 0 0 0 -1 -.5585 rect3.dat
1 16 4.3455 9 -12.287 .9015 0 0 0 0 1 -.602 -1 0 rect2p.dat
5 24 3.444 10 -8.315 3.444 8 -8.315 5.247 10 -7.11 0 10 -9
5 24 3.444 10 -11.685 3.444 8 -11.685 5.247 10 -12.889 0 10 -11
3 16 -2.081 8 -7.586 -3.062 10 -7.391 -3.062 8 -7.391
4 16 -3.444 10 -8.315 -3.253 10 -8.353 -2.272 8 -8.548 -3.444 8 -8.315
2 24 -2.081 8 -7.586 -3.062 8 -7.391
2 24 -3.444 10 -8.315 -3.253 10 -8.353
2 24 -2.272 8 -8.548 -3.444 8 -8.315
3 16 -3.253 10 -8.353 -3.444 10 -8.315 -3.062 10 -7.391
1 16 -2.667 9 -7.9695 .0955 -1 .4905 0 0 -1 .481 0 -.0975 rect.dat
3 16 -3.062 10 -12.609 -2.081 8 -12.414 -3.062 8 -12.609
4 16 -3.444 8 -11.685 -2.272 8 -11.452 -3.253 10 -11.647 -3.444 10 -11.685
2 24 -2.081 8 -12.414 -3.062 8 -12.609
2 24 -3.444 10 -11.685 -3.253 10 -11.647
2 24 -2.272 8 -11.452 -3.444 8 -11.685
3 16 -3.062 10 -12.609 -3.444 10 -11.685 -3.253 10 -11.647
1 16 -2.667 9 -12.0305 -.0955 -1 .4905 0 0 -1 .481 0 .0975 rect.dat
3 16 3.062 10 -7.391 2.081 8 -7.586 3.062 8 -7.391
4 16 3.444 8 -8.315 2.272 8 -8.548 3.253 10 -8.353 3.444 10 -8.315
2 24 2.081 8 -7.586 3.062 8 -7.391
2 24 3.444 10 -8.315 3.253 10 -8.353
2 24 2.272 8 -8.548 3.444 8 -8.315
3 16 3.444 10 -8.315 3.253 10 -8.353 3.062 10 -7.391
1 16 2.667 9 -7.9695 -.0955 1 .4905 0 0 1 .481 0 .0975 rect.dat
3 16 2.081 8 -12.414 3.062 10 -12.609 3.062 8 -12.609
4 16 3.444 10 -11.685 3.253 10 -11.647 2.272 8 -11.452 3.444 8 -11.685
2 24 2.081 8 -12.414 3.062 8 -12.609
2 24 3.444 10 -11.685 3.253 10 -11.647
2 24 2.272 8 -11.452 3.444 8 -11.685
3 16 3.444 10 -11.685 3.062 10 -12.609 3.253 10 -11.647
1 16 2.667 9 -12.0305 .0955 1 .4905 0 0 1 .481 0 -.0975 rect.dat
4 16 -3.444 8 -11.685 -3.444 8 -8.315 -2.272 8 -8.548 -2.272 8 -11.452
4 16 0 8 -11 0 8 -9 2.272 8 -8.548 2.272 8 -11.452
5 24 -3.062 10 -7.391 -3.062 8 -7.391 -2.081 8 -7.586 -5.6571 10 -5.6566
5 24 -3.062 8 -12.609 -3.062 10 -12.609 -2.081 8 -12.414 -5.6566 10 -14.3429
5 24 3.062 8 -7.391 3.062 10 -7.391 2.081 8 -7.586 5.6566 10 -5.6571
5 24 3.062 10 -12.609 3.062 8 -12.609 2.081 8 -12.414 5.6571 10 -14.3434
1 16 -9 0 -24.5 0 1 0 -10 0 0 0 0 15.5 rect3.dat
1 16 9 0 -24.5 0 -1 0 10 0 0 0 0 15.5 rect3.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 -20 -10 0 0 0 -9 0 1 0 9 0 0 2-4ndis.dat
1 16 -30 10 0 0 0 1 0 -16 0 1 0 0 npeghol7a.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 20 -10 0 0 0 9 0 1 0 -9 0 0 2-4ndis.dat
1 16 30 10 0 0 0 -1 0 -16 0 -1 0 0 npeghol7a.dat
1 16 -40 -20 0 0 1 0 -1 0 0 0 0 1 connhol3.dat
1 16 -50 -20 0 0 16 0 0 0 1 -1 0 0 npeghol6a.dat
1 16 -50 -20 0 0 16 0 0 0 1 1 0 0 npeghol6d.dat
1 16 -50 -20 0 0 8 0 1 0 0 0 0 1 npeghol6d.dat
1 16 -50 -20 0 0 9 0 0 0 -9 -9 0 0 1-4cyli.dat
1 16 -50 -20 0 0 1 0 0 0 -9 -9 0 0 1-4edge.dat
1 16 -41 -20 0 0 2 0 0 0 -9 -9 0 0 3-16cyli.dat
1 16 -39 -20 0 0 7 0 0 0 -9 -9 0 0 1-4cyli.dat
1 16 -41 -20 0 0 -1 0 -9 0 0 0 0 -9 1-16chrd.dat
1 16 -41 -20 0 0 1 0 -9 0 0 0 0 -9 1-16edge.dat
1 16 -39 -20 0 0 1 0 -9 0 0 0 0 -9 1-16chrd.dat
1 16 -39 -20 0 0 1 0 -9 0 0 0 0 -9 1-16edge.dat
1 16 -30 -20 0 0 -1 0 0 0 1 1 0 0 peghole6.dat
1 16 -30 -20 0 0 -1 0 0 0 8 8 0 0 2-4ndis.dat
1 16 -29.5 -10 0 -.5 0 0 0 1 0 0 0 -9 rect1.dat
4 16 -30 -10 -9 -30 -10 9 -30 -11 9 -30 -12 -8
4 16 -30 -11 9 -30 -11 40 -30 -12 40 -30 -12 -8
4 16 -30 -12 -8 -30 -20 -8 -30 -20 -9 -30 -10 -9
1 16 -30 -20 -8.5 0 -2 0 0 0 -.5 -.5 0 0 8\2-4cylo.dat
1 16 -30 -20 -8.5 0 -1 0 0 0 -.5 -.5 0 0 8\2-4chrd.dat
1 16 -50 -20 0 0 8 0 -1 0 0 0 0 1 npeghol6a.dat
1 16 -40 -20 20 0 1 0 -1 0 0 0 0 1 connhol3.dat
1 16 -50 -20 10 0 8 0 -1 0 0 0 0 1 npeghol7a.dat
1 16 -50 -20 30 0 8 0 -1 0 0 0 0 1 npeghol2.dat
1 16 -30 -20 20 0 -1 0 0 0 1 -1 0 0 peghole4.dat
1 16 -30 -20 20 0 -1 0 0 0 8 8 0 0 2-4ndis.dat
1 16 -40 -20 40 0 1 0 -1 0 0 0 0 1 connhol3.dat
1 16 -30 -20 40 0 -1 0 0 0 1 1 0 0 1-4ring8.dat
1 16 -50 -20 40 0 9 0 0 0 -9 9 0 0 1-4cyli.dat
1 16 -50 -20 40 0 1 0 0 0 -9 9 0 0 1-4edge.dat
1 16 -41 -20 40 0 2 0 0 0 -9 9 0 0 3-16cyli.dat
1 16 -39 -20 40 0 7 0 0 0 -9 9 0 0 1-4cyli.dat
1 16 -50 -20 40 0 20 0 9 0 0 0 0 9 1-4cylo.dat
1 16 -41 -20 40 0 -1 0 -9 0 0 0 0 9 1-16chrd.dat
1 16 -41 -20 40 0 1 0 -9 0 0 0 0 9 1-16edge.dat
1 16 -39 -20 40 0 1 0 -9 0 0 0 0 9 1-16chrd.dat
1 16 -39 -20 40 0 1 0 -9 0 0 0 0 9 1-16edge.dat
1 16 -30 -20 40 0 -1 0 0 0 1 -1 0 0 peghole6.dat
1 16 -30 -20 40 0 -1 0 0 0 8 -8 0 0 1-4ndis.dat
1 16 -30 -20 48.5 0 -2 0 0 0 -.5 -.5 0 0 8\2-4cylo.dat
1 16 -30 -20 48.5 0 -1 0 0 0 -.5 -.5 0 0 8\2-4chrd.dat
1 16 -30 -20.5 10 0 -1 0 -8.5 0 0 0 0 -2 rect1.dat
1 16 -30 -20.5 30 0 -1 0 -8.5 0 0 0 0 -2 rect1.dat
1 16 40 -20 40 0 -1 0 -1 0 0 0 0 -1 connhol3.dat
1 16 30 -20 40 0 1 0 0 0 1 1 0 0 1-4ring8.dat
1 16 50 -20 40 0 -9 0 0 0 -9 9 0 0 1-4cyli.dat
1 16 50 -20 40 0 -1 0 0 0 -9 9 0 0 1-4edge.dat
1 16 41 -20 40 0 -2 0 0 0 -9 9 0 0 3-16cyli.dat
1 16 39 -20 40 0 -7 0 0 0 -9 9 0 0 1-4cyli.dat
1 16 50 -20 40 0 -20 0 9 0 0 0 0 9 1-4cylo.dat
1 16 41 -20 40 0 1 0 -9 0 0 0 0 9 1-16edge.dat
1 16 41 -20 40 0 1 0 -9 0 0 0 0 9 1-16chrd.dat
1 16 39 -20 40 0 -1 0 -9 0 0 0 0 9 1-16chrd.dat
1 16 39 -20 40 0 1 0 -9 0 0 0 0 9 1-16edge.dat
1 16 30 -20 40 0 1 0 0 0 1 -1 0 0 peghole6.dat
1 16 30 -20 40 0 1 0 0 0 8 -8 0 0 1-4ndis.dat
1 16 30 -20 48.5 0 2 0 0 0 -.5 .5 0 0 8\2-4cylo.dat
1 16 30 -20 48.5 0 1 0 0 0 -.5 .5 0 0 8\2-4chrd.dat
1 16 40 -20 20 0 -1 0 -1 0 0 0 0 -1 connhol3.dat
1 16 50 -20 30 0 -8 0 -1 0 0 0 0 -1 npeghol2.dat
1 16 30 -20 20 0 1 0 0 0 1 1 0 0 peghole4.dat
1 16 30 -20 20 0 1 0 0 0 8 -8 0 0 2-4ndis.dat
1 16 40 -20 0 0 -1 0 -1 0 0 0 0 -1 connhol3.dat
1 16 50 -20 0 0 -16 0 0 0 1 1 0 0 npeghol6d.dat
1 16 50 -20 0 0 -8 0 1 0 0 0 0 1 npeghol6d.dat
1 16 50 -20 0 0 -8 0 -1 0 0 0 0 1 npeghol6a.dat
1 16 50 -20 0 0 -16 0 0 0 1 -1 0 0 npeghol6a.dat
1 16 41 -20 0 0 1 0 -9 0 0 0 0 -9 1-16edge.dat
1 16 41 -20 0 0 1 0 -9 0 0 0 0 -9 1-16chrd.dat
1 16 39 -20 0 0 1 0 -9 0 0 0 0 -9 1-16edge.dat
1 16 39 -20 0 0 -1 0 -9 0 0 0 0 -9 1-16chrd.dat
1 16 41 -20 0 0 -2 0 0 0 -9 -9 0 0 3-16cyli.dat
1 16 50 -20 0 0 -1 0 0 0 -9 -9 0 0 1-4edge.dat
1 16 50 -20 0 0 -9 0 0 0 -9 -9 0 0 1-4cyli.dat
1 16 39 -20 0 0 -7 0 0 0 -9 -9 0 0 1-4cyli.dat
1 16 30 -20 0 0 1 0 0 0 1 1 0 0 peghole6.dat
1 16 30 -20 0 0 1 0 0 0 8 -8 0 0 2-4ndis.dat
1 16 29.5 -10 0 .5 0 0 0 1 0 0 0 9 rect1.dat
2 24 37.8629 -12.206 4.5 38.4353 -12.7784 5.3577
4 16 30 -12 -8 30 -11 9 30 -10 9 30 -10 -9
4 16 30 -12 -8 30 -12 40 30 -11 40 30 -11 9
4 16 30 -10 -9 30 -20 -9 30 -20 -8 30 -12 -8
1 16 30 -20 -8.5 0 2 0 0 0 -.5 .5 0 0 8\2-4cylo.dat
1 16 30 -20 -8.5 0 1 0 0 0 -.5 .5 0 0 8\2-4chrd.dat
1 16 30 -20.5 10 0 1 0 -8.5 0 0 0 0 2 rect1.dat
1 16 30 -20.5 30 0 1 0 -8.5 0 0 0 0 2 rect1.dat
1 16 50 -20 10 0 -8 0 1 0 0 0 0 1 npeghol7a.dat
1 16 -40 -11 24.5 10 0 0 0 -1 0 0 0 -15.5 rect3.dat
4 16 -32 -29 0 -32 -29 8 -39 -29 10 -39 -29 0
4 16 -30 -29 8 -30 -29 12 -39 -29 10 -32 -29 8
4 16 -41 -29 0 -41 -29 10 -50 -29 12 -50 -29 0
4 16 -39 -29 10 -30 -29 12 -50 -29 12 -41 -29 10
4 16 -32 -29 12 -32 -29 28 -50 -29 28 -50 -29 12
4 16 -30 -29 28 -39 -29 30 -41 -29 30 -50 -29 28
4 16 -30 -29 28 -30 -29 32 -32 -29 32 -39 -29 30
4 16 -32 -29 32 -32 -29 40 -39 -29 40 -39 -29 30
4 16 -41 -29 30 -41 -29 40 -50 -29 40 -50 -29 28
2 24 -50 -29 0 -50 -29 40
0 BFC INVERTNEXT
1 16 -40 -28.657 3.278 1 0 0 0 .34255 0 0 0 6.7221 box2-5.dat
4 16 -41 -28.3149 -3.4442 -41 -28.3149 10 -41 -29 10 -41 -29 0
2 24 -41 -29 0 -41 -29 10
4 16 -39 -29 0 -39 -29 10 -39 -28.3149 10 -39 -28.3149 -3.4442
2 24 -39 -29 0 -39 -29 10
0 BFC INVERTNEXT
1 16 -40 -28.657 36.722 -1 0 0 0 .34255 0 0 0 -6.7221 box2-5.dat
4 16 -41 -28.3149 30 -41 -28.3149 43.4442 -41 -29 40 -41 -29 30
2 24 -41 -29 30 -41 -29 40
4 16 -39 -29 30 -39 -29 40 -39 -28.3149 43.4442 -39 -28.3149 30
2 24 -39 -29 30 -39 -29 40
1 16 40 -11 24.5 10 0 0 0 -1 0 0 0 -15.5 rect3.dat
4 16 39 -29 0 39 -29 10 32 -29 8 32 -29 0
4 16 32 -29 8 39 -29 10 30 -29 12 30 -29 8
4 16 50 -29 0 50 -29 12 41 -29 10 41 -29 0
4 16 41 -29 10 50 -29 12 30 -29 12 39 -29 10
4 16 50 -29 12 50 -29 28 32 -29 28 32 -29 12
4 16 50 -29 28 41 -29 30 39 -29 30 30 -29 28
4 16 39 -29 30 32 -29 32 30 -29 32 30 -29 28
4 16 39 -29 30 39 -29 40 32 -29 40 32 -29 32
4 16 50 -29 28 50 -29 40 41 -29 40 41 -29 30
2 24 50 -29 0 50 -29 40
0 BFC INVERTNEXT
1 16 40 -28.657 3.278 1 0 0 0 .34255 0 0 0 6.7221 box2-5.dat
4 16 39 -28.3149 -3.4442 39 -28.3149 10 39 -29 10 39 -29 0
2 24 39 -29 0 39 -29 10
4 16 41 -29 0 41 -29 10 41 -28.3149 10 41 -28.3149 -3.4442
2 24 41 -29 0 41 -29 10
0 BFC INVERTNEXT
1 16 40 -28.657 36.722 -1 0 0 0 .34255 0 0 0 -6.7221 box2-5.dat
4 16 39 -28.3149 30 39 -28.3149 43.4442 39 -29 40 39 -29 30
2 24 39 -29 30 39 -29 40
4 16 41 -29 30 41 -29 40 41 -28.3149 43.4442 41 -28.3149 30
2 24 41 -29 30 41 -29 40
1 16 0 -20 40 -1 0 0 0 1 0 0 0 -1 connhole.dat
1 16 0 -30 40 1 0 0 0 9 0 0 0 -1 npeghol6b.dat
1 16 0 -30 40 -1 0 0 0 9 0 0 0 -1 npeghol6b.dat
1 16 0 -10 30 -1 0 0 0 -11 0 0 0 1 npeghol7a.dat
1 16 0 -20 60 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 -30 60 9 0 0 0 20 0 0 0 9 2-4cylo.dat
4 16 -50 -10 -9 -30 10 -9 -9 10 -9 -9 -10 -9
1 16 -40 -15 -9 0 0 10 5 0 0 0 1 0 rect2p.dat
2 24 -9 10 -9 -30 10 -9
2 24 -9 -10 -9 -30 -10 -9
4 16 -9 -10 9 -9 10 9 -30 10 9 -50 -10 9
1 16 -40 -10.5 9 0 0 10 -.5 0 0 0 -1 0 rect2p.dat
2 24 -9 10 9 -30 10 9
2 24 -9 -10 9 -30 -10 9
4 16 -30 -4.3431 6.364 -35.6569 -10 6.364 -50 -10 6.364 -30 10 6.364
4 16 -30 10 -6.364 -50 -10 -6.364 -35.6569 -10 -6.364 -30 -4.3431 -6.364
4 16 9 -10 -9 9 10 -9 30 10 -9 50 -10 -9
1 16 40 -15 -9 0 0 -10 -5 0 0 0 1 0 rect2p.dat
2 24 9 10 -9 30 10 -9
2 24 9 -10 -9 30 -10 -9
4 16 50 -10 9 30 10 9 9 10 9 9 -10 9
1 16 40 -10.5 9 0 0 -10 .5 0 0 0 -1 0 rect2p.dat
2 24 9 10 9 30 10 9
2 24 9 -10 9 30 -10 9
4 16 30 10 6.364 50 -10 6.364 35.6569 -10 6.364 30 -4.3431 6.364
4 16 30 -4.3431 -6.364 35.6569 -10 -6.364 50 -10 -6.364 30 10 -6.364
1 16 -40 0 -7.682 -10 1 0 -10 0 0 0 0 1.318 rect.dat
1 16 40 0 -7.682 10 -1 0 -10 0 0 0 0 -1.318 rect.dat
1 16 -40 0 7.682 -10 1 0 -10 0 0 0 0 1.318 rect.dat
1 16 40 0 7.682 10 -1 0 -10 0 0 0 0 -1.318 rect.dat
1 16 -9 0 9.5 0 1 0 10 0 0 0 0 -.5 rect3.dat
0 // filler1
1 16 -32.8285 -7.1716 0 6.46445 0 0 6.46445 -1 0 0 0 -6.364 rect2p.dat
1 16 -20 5.657 0 -9 0 0 -9 1 0 0 0 -9 1-8edge.dat
1 16 -20 5.657 0 -9 0 0 -9 -1 0 0 0 9 1-8edge.dat
0 // filler2
1 16 32.8285 -7.1716 0 6.46445 0 0 -6.46445 -1 0 0 0 -6.364 rect2p.dat
1 16 -9 -10 20 0 1 0 -10 0 10 10 0 0 rect2p.dat
1 16 -6.364 -4 20 0 -1 0 4 0 -10 0 0 10 rect1.dat
1 16 -6.36 -16 20 0 -1 0 -4 0 10 0 0 -10 rect1.dat
1 16 9 0 9.5 0 -1 0 -10 0 0 0 0 -.5 rect3.dat
1 16 9 -10 20 0 -1 0 -10 0 -10 10 0 0 rect2p.dat
1 16 6.364 -4 20 0 1 0 4 0 10 0 0 -10 rect1.dat
1 16 6.36 -16 20 0 1 0 -4 0 -10 0 0 10 rect1.dat
1 16 -1.8 -16 20 0 1 0 -4 0 -10 0 0 10 rect1.dat
1 16 1.8 -16 20 0 -1 0 -4 0 10 0 0 -10 rect1.dat
2 24 -1.8 -1.4704 8.642 -1.8 -24.1865 31.358
2 24 1.8 -1.4704 8.642 1.8 -24.1865 31.358
1 16 -7.68 -20 20 -1.32 0 0 0 1 10 0 0 -10 rect2p.dat
1 16 7.68 -20 20 -1.32 0 0 0 1 10 0 0 -10 rect2p.dat
1 16 0 -20 20 -1.8 0 0 0 1 10 0 0 -10 rect2p.dat
1 16 -7.682 0 20 1.318 0 0 0 -1 10 0 0 -10 rect2p.dat
1 16 7.682 0 20 1.318 0 0 0 -1 10 0 0 -10 rect2p.dat
4 16 -6.364 6.4645 6.364 -6.364 -20.8076 33.636 6.364 -20.8076 33.636 6.364 6.4645 6.364
2 24 -6.364 -18 30 6.364 -18 30
4 16 -6.3639 -26.4641 33.6361 -6.3639 .8081 6.3639 -1.8 -1.4704 8.642 -1.8 -24.1865 31.358
4 16 6.3639 .8081 6.3639 6.3639 -26.4641 33.6361 1.8 -24.1865 31.358 1.8 -1.4704 8.642

1 16 0 12.828 0 0 0 -9 -9 1 0 9 0 0 1-16edge.dat
1 16 0 12.828 0 0 0 9 -9 -1 0 9 0 0 1-16edge.dat
1 16 0 -27.172 40 0 0 9 9 1 0 -9 0 0 1-16edge.dat
1 16 0 -27.172 40 0 0 -9 9 -1 0 -9 0 0 1-16edge.dat

1 16 9 -20 55 0 -1 0 0 0 10 -5 0 0 rect2p.dat
1 16 9 -28.302 40 0 -1 0 -1.698 0 0 0 0 -10 rect1.dat

2 24 9 -10 50 9 -10 60
1 16 9 -26.604 29.5 0 2 0 0 0 -1.5 1.5 0 0 3-8cyli.dat
1 16 9 -26.604 29.5 0 1 0 0 0 -1.5 1.5 0 0 3-8edge.dat
1 16 11 -26.604 29.5 0 .37 0 -1.5 0 0 0 0 1.5 1-4cyls.dat
1 16 11 -26.604 29.5 0 .37 0 -1.5 0 0 0 0 -1.5 1-8cyls.dat
1 16 11.37 -26.604 29.5 0 -1 -.37 0 0 -1.5 1.5 0 0 3-8edge.dat
1 16 11.37 -26.604 29.5 0 -1 -.37 0 0 -1.5 1.5 0 0 3-8chrd.dat
5 24 11 -27.6647 28.4394 9 -27.6647 28.4394 11 -27.9899 28.926 11 -27.1781 28.1142
0 BFC INVERTNEXT
1 16 10 -20 40 0 3 0 0 0 9 -9 0 0 1-8cylo.dat
1 16 13 -20 40 0 -1 0 0 0 9 -9 0 0 1-8tang.dat
1 16 9 -20 40 0 4 0 0 0 14.142 -14.142 0 0 1-8cylo.dat
1 16 13 -20 40 0 -1 0 0 0 14.142 -14.142 0 0 1-8ering.dat
5 24 13 -20 25.858 9 -20 25.858 13 -14.588 26.934 11.664 -25.412 26.934
4 16 9 -20 25.858 13 -20 25.858 11.664 -25.412 26.934 9 -25.412 26.934
2 24 9 -20 25.858 9 -25.412 26.934
2 24 13 -20 25.858 11.664 -25.412 26.934
4 16 9 -25.412 26.934 11.664 -25.412 26.934 11.108 -27.664 28.439 9 -27.664 28.439
2 24 9 -25.412 26.934 9 -27.664 28.439
2 24 11.664 -25.412 26.934 11.108 -27.664 28.439
5 24 9 -25.412 26.934 11.664 -25.412 26.934 9 -30 30 9 -20 25.858
1 16 11 -10 31.818 2 0 0 0 -1 0 0 0 -1.818 rect2a.dat
1 16 11.5 -11.818 33.636 1.5 0 0 0 0 1.818 0 -1 0 rect.dat
4 16 10 -26.604 31 11.37 -26.604 31 13 -20 31 10 -20 31
2 24 10 -20 31 10 -26.604 31
2 24 13 -20 31 11.37 -26.604 31
0 // face1
4 16 13 -20 31 11.37 -26.604 31 11.664 -25.412 26.934 13 -20 25.858
3 16 11.37 -26.604 31 11.108 -27.664 28.439 11.664 -25.412 26.934
2 24 13 -20 25.858 13 -20 31
3 16 13 -10 33.636 13 -13.636 33.636 13 -10 30
0 // 2
1 16 9 -26.604 50.5 0 2 0 0 0 -1.5 -1.5 0 0 3-8cyli.dat
1 16 9 -26.604 50.5 0 1 0 0 0 -1.5 -1.5 0 0 3-8edge.dat
1 16 11 -26.604 50.5 0 .37 0 -1.5 0 0 0 0 -1.5 1-4cyls.dat
1 16 11 -26.604 50.5 0 .37 0 -1.5 0 0 0 0 1.5 1-8cyls.dat
1 16 11.37 -26.604 50.5 0 1 -.37 0 0 -1.5 -1.5 0 0 3-8edge.dat
1 16 11.37 -26.604 50.5 0 -1 -.37 0 0 -1.5 -1.5 0 0 3-8chrd.dat
5 24 11 -27.6647 51.5607 9 -27.6647 51.5607 11 -27.1781 51.8859 11 -27.9899 51.0741
0 BFC INVERTNEXT
1 16 10 -20 40 0 3 0 0 0 9 9 0 0 1-8cylo.dat
1 16 13 -20 40 0 -1 0 0 0 9 9 0 0 1-8tang.dat
1 16 9 -20 40 0 4 0 0 0 14.142 14.142 0 0 1-8cylo.dat
1 16 13 -20 40 0 -1 0 0 0 14.142 14.142 0 0 1-8ering.dat
5 24 9 -20 54.142 13 -20 54.142 11.664 -25.412 53.066 13 -14.588 53.066
4 16 9 -25.412 53.066 11.664 -25.412 53.066 13 -20 54.142 9 -20 54.142
2 24 9 -20 54.142 9 -25.412 53.066
2 24 13 -20 54.142 11.664 -25.412 53.066
4 16 9 -27.664 51.561 11.108 -27.664 51.561 11.664 -25.412 53.066 9 -25.412 53.066
2 24 9 -25.412 53.066 9 -27.664 51.561
2 24 11.664 -25.412 53.066 11.108 -27.664 51.561
5 24 9 -25.412 53.066 11.664 -25.412 53.066 9 -30 50 9 -20 54.142
1 16 11 -10 48.182 0 0 2 0 -1 0 1.818 0 0 rect2a.dat
1 16 11.5 -11.818 46.364 1.5 0 0 0 0 -1.818 0 1 0 rect.dat
4 16 10 -20 49 13 -20 49 11.37 -26.604 49 10 -26.604 49
2 24 10 -20 49 10 -26.604 49
2 24 13 -20 49 11.37 -26.604 49
0 // face2
4 16 13 -20 54.142 11.664 -25.412 53.066 11.37 -26.604 49 13 -20 49
3 16 11.664 -25.412 53.066 11.108 -27.664 51.561 11.37 -26.604 49
2 24 13 -20 54.142 13 -20 49
3 16 13 -10 50 13 -13.636 46.364 13 -10 46.364
0 // middle
2 24 9 -26.604 31 9 -26.604 49
1 16 9.5 -20.12 40 0 .5 0 0 0 -6.484 -9 0 0 box2-11.dat
1 16 9.5 -11.818 40 0 .5 0 0 0 1.818 6.364 0 0 box2-11.dat
2 24 9 -26.604 31 10 -26.604 31
2 24 9 -26.604 49 10 -26.604 49

1 16 -9 -20 55 0 1 0 0 0 10 -5 0 0 rect2p.dat
1 16 -9 -28.302 40 0 1 0 -1.698 0 0 0 0 -10 rect1.dat
1 16 -9 -26.604 29.5 0 -2 0 0 0 -1.5 1.5 0 0 3-8cyli.dat
1 16 -9 -26.604 29.5 0 -1 0 0 0 -1.5 1.5 0 0 3-8edge.dat
1 16 -11 -26.604 29.5 0 -.37 0 -1.5 0 0 0 0 1.5 1-4cyls.dat
1 16 -11 -26.604 29.5 0 -.37 0 -1.5 0 0 0 0 -1.5 1-8cyls.dat
1 16 -11.37 -26.604 29.5 0 1 .37 0 0 -1.5 1.5 0 0 3-8edge.dat
1 16 -11.37 -26.604 29.5 0 1 .37 0 0 -1.5 1.5 0 0 3-8chrd.dat
5 24 -11 -27.6647 28.4394 -9 -27.6647 28.4394 -11 -27.9899 28.926 -11 -27.1781 28.1142
0 BFC INVERTNEXT
1 16 -10 -20 40 0 -3 0 0 0 9 -9 0 0 1-8cylo.dat
1 16 -13 -20 40 0 1 0 0 0 9 -9 0 0 1-8tang.dat
1 16 -9 -20 40 0 -4 0 0 0 14.142 -14.142 0 0 1-8cylo.dat
1 16 -13 -20 40 0 1 0 0 0 14.142 -14.142 0 0 1-8ering.dat
5 24 -13 -20 25.858 -9 -20 25.858 -13 -14.588 26.934 -11.664 -25.412 26.934

4 16 -9 -25.412 26.934 -11.664 -25.412 26.934 -13 -20 25.858 -9 -20 25.858
2 24 -9 -20 25.858 -9 -25.412 26.934
2 24 -13 -20 25.858 -11.664 -25.412 26.934
4 16 -9 -27.664 28.439 -11.108 -27.664 28.439 -11.664 -25.412 26.934 -9 -25.412 26.934
2 24 -9 -25.412 26.934 -9 -27.664 28.439
2 24 -11.664 -25.412 26.934 -11.108 -27.664 28.439
5 24 -9 -25.412 26.934 -11.664 -25.412 26.934 -9 -30 30 -9 -20 25.858
1 16 -11 -10 31.818 0 0 -2 0 -1 0 -1.818 0 0 rect2a.dat
1 16 -11.5 -11.818 33.636 -1.5 0 0 0 0 -1.818 0 -1 0 rect.dat
4 16 -10 -20 31 -13 -20 31 -11.37 -26.604 31 -10 -26.604 31
2 24 -10 -20 31 -10 -26.604 31
2 24 -13 -20 31 -11.37 -26.604 31
0 // face1
4 16 -13 -20 25.858 -11.664 -25.412 26.934 -11.37 -26.604 31 -13 -20 31
3 16 -11.664 -25.412 26.934 -11.108 -27.664 28.439 -11.37 -26.604 31
2 24 -13 -20 25.858 -13 -20 31
3 16 -13 -10 30 -13 -13.636 33.636 -13 -10 33.636
0 // 2
1 16 -9 -26.604 50.5 0 -2 0 0 0 -1.5 -1.5 0 0 3-8cyli.dat
1 16 -9 -26.604 50.5 0 -1 0 0 0 -1.5 -1.5 0 0 3-8edge.dat
1 16 -11 -26.604 50.5 0 -.37 0 -1.5 0 0 0 0 -1.5 1-4cyls.dat
1 16 -11 -26.604 50.5 0 -.37 0 -1.5 0 0 0 0 1.5 1-8cyls.dat
1 16 -11.37 -26.604 50.5 0 -1 .37 0 0 -1.5 -1.5 0 0 3-8edge.dat
1 16 -11.37 -26.604 50.5 0 1 .37 0 0 -1.5 -1.5 0 0 3-8chrd.dat
5 24 -11 -27.6647 51.5607 -9 -27.6647 51.5607 -11 -27.1781 51.8859 -11 -27.9899 51.0741

0 BFC INVERTNEXT
1 16 -10 -20 40 0 -3 0 0 0 9 9 0 0 1-8cylo.dat
1 16 -13 -20 40 0 1 0 0 0 9 9 0 0 1-8tang.dat
1 16 -9 -20 40 0 -4 0 0 0 14.142 14.142 0 0 1-8cylo.dat
1 16 -13 -20 40 0 1 0 0 0 14.142 14.142 0 0 1-8ering.dat
5 24 -13 -20 54.142 -9 -20 54.142 -11.664 -25.412 53.066 -13 -14.588 53.066

4 16 -9 -20 54.142 -13 -20 54.142 -11.664 -25.412 53.066 -9 -25.412 53.066
2 24 -9 -20 54.142 -9 -25.412 53.066
2 24 -13 -20 54.142 -11.664 -25.412 53.066
4 16 -9 -25.412 53.066 -11.664 -25.412 53.066 -11.108 -27.664 51.561 -9 -27.664 51.561
2 24 -9 -25.412 53.066 -9 -27.664 51.561
2 24 -11.664 -25.412 53.066 -11.108 -27.664 51.561
5 24 -9 -25.412 53.066 -11.664 -25.412 53.066 -9 -30 50 -9 -20 54.142
1 16 -11 -10 48.182 -2 0 0 0 -1 0 0 0 1.818 rect2a.dat
1 16 -11.5 -11.818 46.364 -1.5 0 0 0 0 1.818 0 1 0 rect.dat
4 16 -10 -26.604 49 -11.37 -26.604 49 -13 -20 49 -10 -20 49
2 24 -10 -20 49 -10 -26.604 49
2 24 -13 -20 49 -11.37 -26.604 49
0 // face2
4 16 -13 -20 49 -11.37 -26.604 49 -11.664 -25.412 53.066 -13 -20 54.142
3 16 -11.37 -26.604 49 -11.108 -27.664 51.561 -11.664 -25.412 53.066
2 24 -13 -20 54.142 -13 -20 49
3 16 -13 -10 46.364 -13 -13.636 46.364 -13 -10 50
0 // middle
2 24 -9 -26.604 31 -9 -26.604 49
1 16 -9.5 -20.12 40 0 -.5 0 0 0 -6.484 -9 0 0 box2-11.dat
1 16 -9.5 -11.818 40 0 -.5 0 0 0 1.818 6.364 0 0 box2-11.dat
2 24 -10 -26.604 49 -9 -26.604 49
2 24 -10 -26.604 31 -9 -26.604 31
4 16 -9 -10 9 -11 -10 9 -13.6361 -10 6.3639 -6.364 -10 6.364
4 16 6.3639 -10 6.3639 13.636 -10 6.364 11 -10 9 9 -10 9
2 24 6.3603 -21 30 6.3603 -21 31.5321
2 24 3.4442 -21 31.6851 5.0982 -21 32.3703
2 24 1.8 -23.8285 31 1.8 -22.8285 30
2 24 6.2012 -24.9609 32.1328 5.6785 -25.3081 32.48
2 24 5.6785 -25.3081 32.48 5.0982 -25.1984 32.3702
2 24 5.0982 -25.1984 32.3703 1.8 -23.8325 31.004
2 24 6.3603 .5 10 6.3603 .5 8.4679
2 24 6.3603 -2.828 10 6.3603 -1.2958 8.4678
2 24 6.2012 -.6952 7.8672 5.6785 -.3481 7.52
2 24 5.0982 -.4579 7.6298 5.6785 -.3481 7.52
2 24 1.8 -1.8244 8.996 5.0982 -.4578 7.6297
2 24 6.3603 -1.2959 8.4679 6.2012 -.6952 7.8672
2 24 3.4442 .5 8.3149 5.0982 .5 7.6297
2 24 1.8 -1.8284 9 1.8 -2.8284 10
2 24 -5.6785 -.3481 7.52 -6.2012 -.6952 7.8672
2 24 -5.6785 -.3481 7.52 -5.0982 -.4579 7.6298
2 24 -6.2012 -.6952 7.8672 -6.3603 -1.2959 8.4679
2 24 -1.8 -23.8285 31 -1.8 -22.8285 30
2 24 -6.3603 .5 10 -6.3603 .5 8.4679
2 24 -6.3603 -2.828 10 -6.3603 -1.2958 8.4678
2 24 -5.0982 .5 7.6297 -3.4442 .5 8.3149
2 24 -1.8 -23.8325 31.004 -5.0982 -25.1984 32.3703
2 24 -3.4442 -21 31.6851 -5.0982 -21 32.3703
2 24 -5.0982 -25.1984 32.3702 -5.6785 -25.3081 32.48
2 24 -6.2012 -24.9608 32.1328 -6.3603 -24.3601 31.5321
2 24 -6.2012 -24.9608 32.1328 -5.6785 -25.3081 32.48
2 24 -6.3603 -22.828 30 -6.3603 -24.3602 31.5322
2 24 -6.3603 -21 31.5321 -6.3603 -21 30
2 24 -6.3603 -2.828 10 -6.3603 -22.828 30
2 24 6.3603 -24.3601 31.5321 6.2012 -24.9608 32.1328
2 24 5.6785 -25.3081 32.48 6.2012 -24.9608 32.1328
2 24 6.3603 -24.3601 31.5321 6.3603 -2.828 10
2 24 -5.0982 -.4579 7.6298 -1.8 -1.8284 9
2 24 -28.3149 -6 3.4442 -29.0002 -6 0
2 24 -29.0002 -6 -.0001 -28.4793 -6 -2.6178
2 24 -34 -12.206 4.5 -34 -12.7784 5.3577
2 24 -28.4679 -6 -6.3603 -30 -6 -6.3603
2 24 -27.8672 -2.2103 -6.2012 -27.52 -1.8631 -5.6785
2 24 -27.6298 -1.9729 -5.0982 -27.52 -1.8631 -5.6785
2 24 -30 -6 6.3603 -28.4679 -6 6.3603
2 24 -30 -4.3431 6.3603 -28.4679 -2.811 6.3603
2 24 -27.6297 -1.9728 5.0982 -28.3149 -2.658 3.4442
2 24 -28.4679 -2.811 -6.3603 -27.8672 -2.2103 -6.2012
2 24 -30 -4.3431 -6.3603 -28.4679 -2.811 -6.3603
2 24 -27.52 -1.8631 5.6785 -27.8672 -2.2103 6.2012
2 24 -27.52 -1.8631 5.6785 -27.6298 -1.9729 5.0982
2 24 -28.4679 -2.811 6.3603 -27.8672 -2.2103 6.2012
2 24 -27.6297 -1.9728 -5.0982 -28.3149 -2.658 -3.4442
2 24 -28.3148 -2.6579 -3.4441 -29.0002 -3.3433 -.0001
2 24 -29.0002 -3.3433 -.0001 -28.3149 -2.658 3.4442
2 24 -34 -12.206 4.5 -34 -11.6849 3.4443
4 16 -50 -11 10 -50 -11 9 -50 -13.6361 6.3639 -50 -13.6397 10
4 16 50 -11 9 50 -11 10 50 -13.6397 10 50 -13.6361 6.3639
4 16 50 -10 6.3603 50 -10 9 50 -11 9 50 -13.6361 6.3639
4 16 -50 -10 9 -50 -10 6.3603 -50 -13.6361 6.3639 -50 -11 9
2 24 -34 -10.9998 0 -34 -11.6851 -3.4442
2 24 -36.6567 -10.9998 .0001 -37.342 -11.6851 -3.4442
2 24 -38.1369 -12.48 -5.6785 -38.0271 -12.3702 -5.0982
2 24 -38.1369 -12.48 -5.6785 -37.7897 -12.1328 -6.2012
2 24 -37.189 -11.5321 -6.3603 -37.7897 -12.1328 -6.2012
2 24 -37.342 -11.6851 -3.4442 -38.0272 -12.3703 -5.0982
2 24 -37.189 -11.5321 -6.3603 -35.6569 -10 -6.3603
2 24 -34 -11.5321 -6.3603 -34 -10 -6.3603
2 24 -34 -11.6851 3.4442 -34 -10.9998 0
2 24 -34 -10 6.3603 -34 -11.5321 6.3603
2 24 -37.189 -11.5321 6.3603 -35.6569 -10 6.3603
2 24 -37.342 -11.6851 3.4442 -36.6567 -10.9998 -.0001
2 24 -38.1369 -12.48 5.6785 -37.7897 -12.1328 6.2012
2 24 -37.7897 -12.1328 6.2012 -37.189 -11.5321 6.3603
2 24 -38.0271 -12.3702 5.0982 -38.1369 -12.48 5.6785
2 24 -37.342 -11.6851 3.4442 -38.0272 -12.3703 5.0982
2 24 50 -11.6856 3.4452 50 -12.3703 5.0982
2 24 29.0002 -6 0 28.3149 -6 -3.4442
2 24 34 -11.6851 3.4442 34 -10.9998 0
2 24 28.4793 -6 2.6178 29.0002 -6 .0001
2 24 34 -10.9998 0 34 -11.6851 -3.4442
2 24 30 -4.3431 -6.3603 28.4679 -2.811 -6.3603
2 24 28.4679 -6 -6.3603 30 -6 -6.3603
2 24 36.6567 -10.9998 .0001 37.342 -11.6851 -3.4442
2 24 27.6297 -1.9728 -5.0982 28.3149 -2.658 -3.4442
2 24 28.4679 -2.811 6.3603 27.8672 -2.2103 6.2012
2 24 27.8672 -2.2103 6.2012 27.52 -1.8631 5.6785
2 24 27.52 -1.8631 5.6785 27.6298 -1.9729 5.0982
2 24 30 -4.3431 6.3603 28.4679 -2.811 6.3603
2 24 38.1369 -12.48 -5.6785 37.7897 -12.1328 -6.2012
2 24 37.189 -11.5321 -6.3603 37.7897 -12.1328 -6.2012
2 24 38.1369 -12.48 -5.6785 38.0271 -12.3702 -5.0982
2 24 38.0272 -12.3703 5.0982 37.342 -11.6851 3.4442
2 24 37.189 -11.5321 6.3603 35.6569 -10 6.3603
2 24 27.6297 -1.9728 5.0982 28.3149 -2.658 3.4442
2 24 38.0272 -12.3703 -5.0982 37.342 -11.6851 -3.4442
2 24 28.4679 -2.811 -6.3603 27.8672 -2.2103 -6.2012
2 24 27.8672 -2.2103 -6.2012 27.52 -1.8631 -5.6785
2 24 27.52 -1.8631 -5.6785 27.6298 -1.9729 -5.0982
2 24 37.342 -11.6851 3.4442 36.6567 -10.9998 -.0001
2 24 28.3149 -2.658 -3.4442 29.0002 -3.3433 .0001
2 24 29.0002 -3.3433 .0001 28.3148 -2.6579 3.4441
2 24 38.0271 -12.3702 5.0982 38.1369 -12.48 5.6785
2 24 37.7897 -12.1328 6.2012 38.1369 -12.48 5.6785
2 24 37.7897 -12.1328 6.2012 37.189 -11.5321 6.3603
2 24 37.189 -11.5321 -6.3603 35.6569 -10 -6.3603
2 24 30 -6 6.3603 28.4679 -6 6.3603
2 24 34 -11.5321 6.3603 34 -10 6.3603
2 24 34 -10 -6.3603 34 -11.5321 -6.3603
4 16 -13 -20 25.858 -13 -20 31 -13 -18.2099 31 -13 -14.5879 26.9342
3 16 -13 -18.2099 31 -13 -16.5557 31.6849 -13 -14.5879 26.9342
3 16 -13 -14.5879 26.9342 -13 -16.5557 31.6849 -13 -14.9015 32.3698
4 16 -13 -14.9015 32.3698 -13 -13.6361 33.6361 -13 -10.0002 30.0002 -13 -14.5879 26.9342
4 16 -13 -13.6361 46.3639 -13 -14.9015 47.6302 -13 -14.5879 53.0658 -13 -10.0002 49.9998
4 16 -13 -18.2099 49 -13 -20 49 -13 -20 54.142 -13 -14.5879 53.0658
3 16 -13 -16.5557 48.3151 -13 -18.2099 49 -13 -14.5879 53.0658
3 16 -13 -14.9015 47.6302 -13 -16.5557 48.3151 -13 -14.5879 53.0658
4 16 13 -14.5879 53.0658 13 -14.9015 47.6302 13 -13.6361 46.3639 13 -10.0002 49.9998
4 16 13 -20 54.142 13 -20 49 13 -18.2099 49 13 -14.5879 53.0658
3 16 13 -16.5557 48.3151 13 -14.9015 47.6302 13 -14.5879 53.0658
3 16 13 -16.5557 48.3151 13 -14.5879 53.0658 13 -18.2099 49
4 16 13 -13.6361 33.6361 13 -14.9015 32.3698 13 -14.5879 26.9342 13 -10.0002 30.0002
4 16 13 -18.2099 31 13 -20 31 13 -20 25.858 13 -14.5879 26.9342
3 16 13 -14.9015 32.3698 13 -16.5557 31.6849 13 -14.5879 26.9342
3 16 13 -16.5557 31.6849 13 -18.2099 31 13 -14.5879 26.9342
2 24 0 2 9.0002 3.4442 2 8.3149
2 24 3.4452 10 8.3144 5.0982 10 7.6297
2 24 0 -21 30.9998 -3.4442 -21 31.6851
2 24 .0001 -21 30.9998 2.6178 -21 31.5207
2 24 -6.3603 -10 31.5321 -6.2012 -10 32.1328
2 24 -5.8719 -10 32.3515 -6.2012 -10 32.1329
2 24 -5.6785 -10 32.48 -5.0983 -10 32.3703
2 24 -3.4452 -10 31.6856 -5.0982 -10 32.3703
2 24 6.3603 -10 31.5321 6.2012 -10 32.1328
2 24 5.8719 -10 32.3515 6.2012 -10 32.1329
2 24 6.2012 10 7.8672 6.3603 10 8.4679
2 24 5.0983 -10 32.3703 5.6785 -10 32.48
2 24 5.8719 10 7.6485 6.2012 10 7.8671
2 24 5.0982 -10 32.3703 3.4452 -10 31.6856
2 24 5.6785 10 7.52 5.0983 10 7.6297
2 24 6.3603 -10 31.5321 6.3603 -10 30
2 24 -6.3603 -10 30 -6.3603 -10 31.5321
2 24 0 2 9.0002 -3.4442 2 8.3149
2 24 -5.0983 10 7.6297 -5.6785 10 7.52
2 24 -3.4452 10 8.3144 -5.0982 10 7.6297
2 24 -6.2012 10 7.8672 -6.3603 10 8.4679
2 24 -5.8719 10 7.6485 -6.2012 10 7.8671
2 24 6.3603 2 10 6.3603 2 8.4679
2 24 -5.0982 5.1988 7.6297 -3.4442 4.5136 8.3149
2 24 -5.6785 -19.6516 32.48 -5.0982 -19.5418 32.3702
2 24 -6.2012 -19.3044 32.1328 -5.6785 -19.6516 32.48
2 24 -6.2012 -19.3044 32.1328 -6.3603 -18.7037 31.5321
2 24 -6.3603 2 8.4679 -6.3603 2 10
2 24 6.2012 -19.3044 32.1328 6.3603 -18.7037 31.5321
2 24 6.2012 4.9613 7.8672 5.6785 5.3085 7.52
2 24 -3.4442 -18.8567 31.6851 -5.0982 -19.5419 32.3703
2 24 6.3603 4.3606 8.4679 6.2012 4.9613 7.8672
2 24 -5.6785 5.3085 7.52 -5.0982 5.1987 7.6298
2 24 -6.2012 4.9613 7.8672 -5.6785 5.3085 7.52
2 24 -6.3603 4.3606 8.4679 -6.2012 4.9613 7.8672
2 24 5.6785 -19.6516 32.48 5.0982 -19.5418 32.3702
2 24 5.6785 -19.6516 32.48 6.2012 -19.3044 32.1328
2 24 5.6785 5.3085 7.52 5.0982 5.1987 7.6298
2 24 5.0982 -19.5419 32.3703 3.4442 -18.8567 31.6851
2 24 5.0982 5.1988 7.6297 3.4442 4.5136 8.3149
2 24 6.3603 4.361 8.4679 6.3603 -18.704 31.5321
2 24 -6.3603 4.361 8.4679 -6.3603 -18.704 31.5321

3 16 -9 10 9 -9 10 10 -6.364 10 10
3 16 -9 10 9 -6.364 10 10 -6.3639 10 8.4679
3 16 -9 10 9 -6.3639 10 8.4679 -6.3672 10 6.364
3 16 -9 10 9 -6.3672 10 6.364 -8.4679 10 6.3639
3 16 -9 10 9 -8.4679 10 6.3639 -10 10 6.3639
3 16 -9 10 9 -10 10 6.3639 -11 10 9
3 16 -11 10 9 -10 10 6.3639 -11.5321 10 6.3639
3 16 -11 10 9 -11.5321 10 6.3639 -13.6361 10 6.3639
3 16 6.3639 10 10 9 10 10 6.3603 10 8.4679
3 16 6.3603 10 8.4679 9 10 10 9 10 9
3 16 6.3603 10 8.4679 9 10 9 6.3639 10 6.3639
3 16 6.3639 10 6.3639 9 10 9 8.4679 10 6.3639
3 16 8.4679 10 6.3639 9 10 9 10 10 6.3639
3 16 10 10 6.3639 9 10 9 11 10 9
3 16 10 10 6.3639 11 10 9 11.5321 10 6.3639
3 16 11.5321 10 6.3639 11 10 9 13.636 10 6.364
3 16 9 10 -9 6.3639 10 -6.3639 8.4679 10 -6.3639
3 16 9 10 -9 8.4679 10 -6.3639 10 10 -6.3639
3 16 9 10 -9 10 10 -6.3639 11 10 -9
3 16 11 10 -9 10 10 -6.3639 11.5321 10 -6.3639
3 16 11 10 -9 11.5321 10 -6.3639 13.636 10 -6.364
3 16 -11 10 -9 -13.6361 10 -6.3639 -11.5321 10 -6.3639
3 16 -11 10 -9 -11.5321 10 -6.3639 -10 10 -6.3639
3 16 -11 10 -9 -10 10 -6.3639 -9 10 -9
3 16 -9 10 -9 -10 10 -6.3639 -8.4679 10 -6.3639
3 16 -9 10 -9 -8.4679 10 -6.3639 -6.364 10 -6.364
3 16 11 -10 -9 13.636 -10 -6.364 11.5321 -10 -6.3639
3 16 11 -10 -9 11.5321 -10 -6.3639 10 -10 -6.3639
3 16 11 -10 -9 10 -10 -6.3639 9 -10 -9
3 16 9 -10 -9 10 -10 -6.3639 8.4679 -10 -6.3639
3 16 9 -10 -9 8.4679 -10 -6.3639 6.3639 -10 -8.4679
3 16 6.3639 -10 -8.4679 8.4679 -10 -6.3639 6.3639 -10 -6.3639
3 16 6.3639 -10 -8.4679 6.3639 -10 -10 9 -10 -9
3 16 9 -10 -9 6.3639 -10 -10 9 -10 -11
3 16 9 -10 -11 6.3639 -10 -10 6.3639 -10 -11.5321
3 16 9 -10 -11 6.3639 -10 -11.5321 6.3639 -10 -13.6361
3 16 -13.6361 -10 -6.3639 -11 -10 -9 -11.5321 -10 -6.3639
3 16 -11.5321 -10 -6.3639 -11 -10 -9 -10 -10 -6.3639
3 16 -10 -10 -6.3639 -11 -10 -9 -9 -10 -9
3 16 -10 -10 -6.3639 -9 -10 -9 -8.4679 -10 -6.3639
3 16 -8.4679 -10 -6.3639 -9 -10 -9 -6.3639 -10 -8.4679
3 16 -8.4679 -10 -6.3639 -6.3639 -10 -8.4679 -6.364 -10 -6.364
3 16 -6.3639 -10 -8.4679 -9 -10 -9 -6.3639 -10 -10
3 16 -6.3639 -10 -10 -9 -10 -9 -9 -10 -11
3 16 -6.3639 -10 -10 -9 -10 -11 -6.3639 -10 -11.5321
3 16 -6.3639 -10 -11.5321 -9 -10 -11 -6.364 -10 -13.636

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Creative Commons Attribution License information

This part is copyright © Kevin Roach
Licensed under CC BY 2.0

Edits:
LDraw.org Parts Tracker, Max Murtazin, Willy Tschager, Orion Pobursky,

Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor, endorse, or authorize this site. Visit the official Lego website at http://www.lego.com
